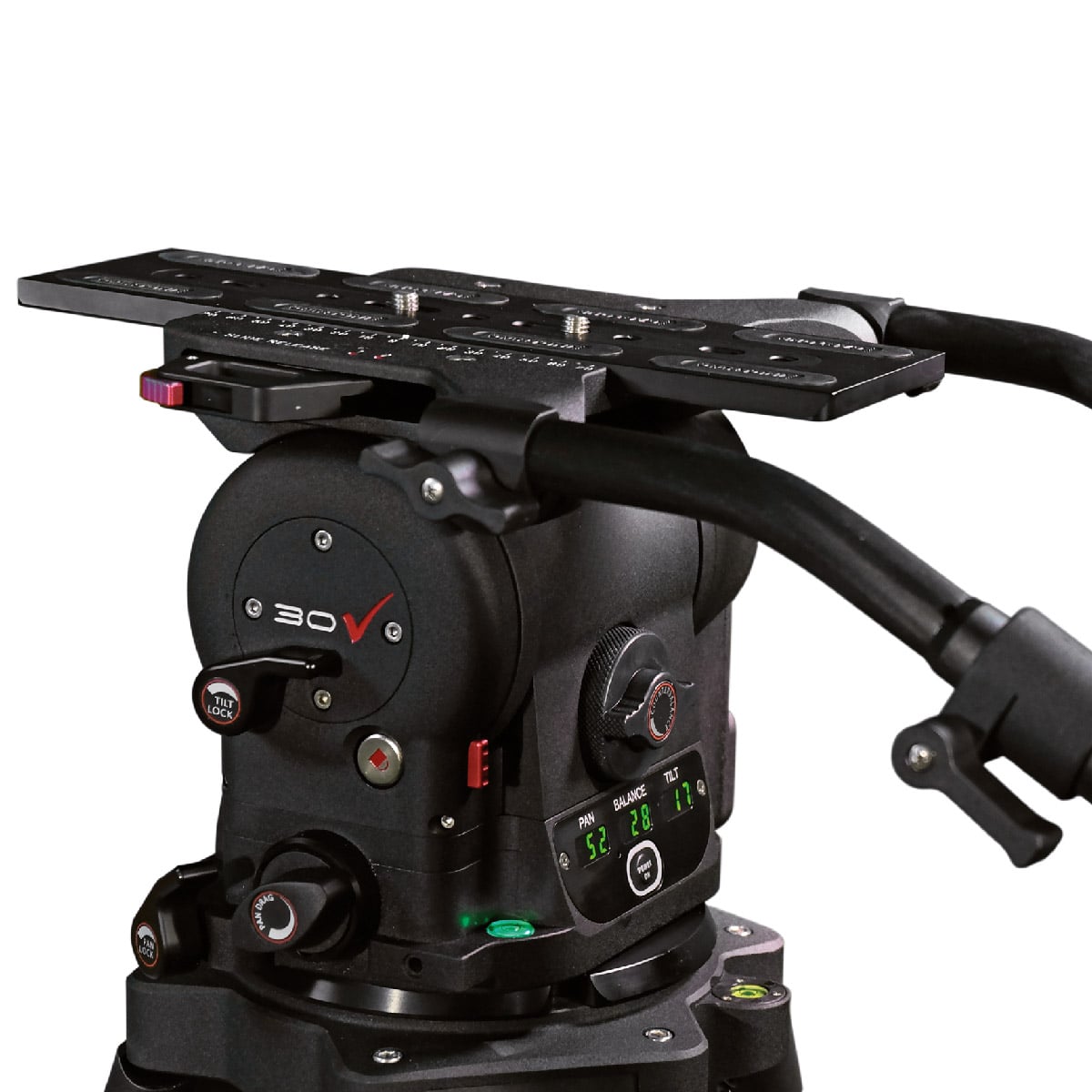

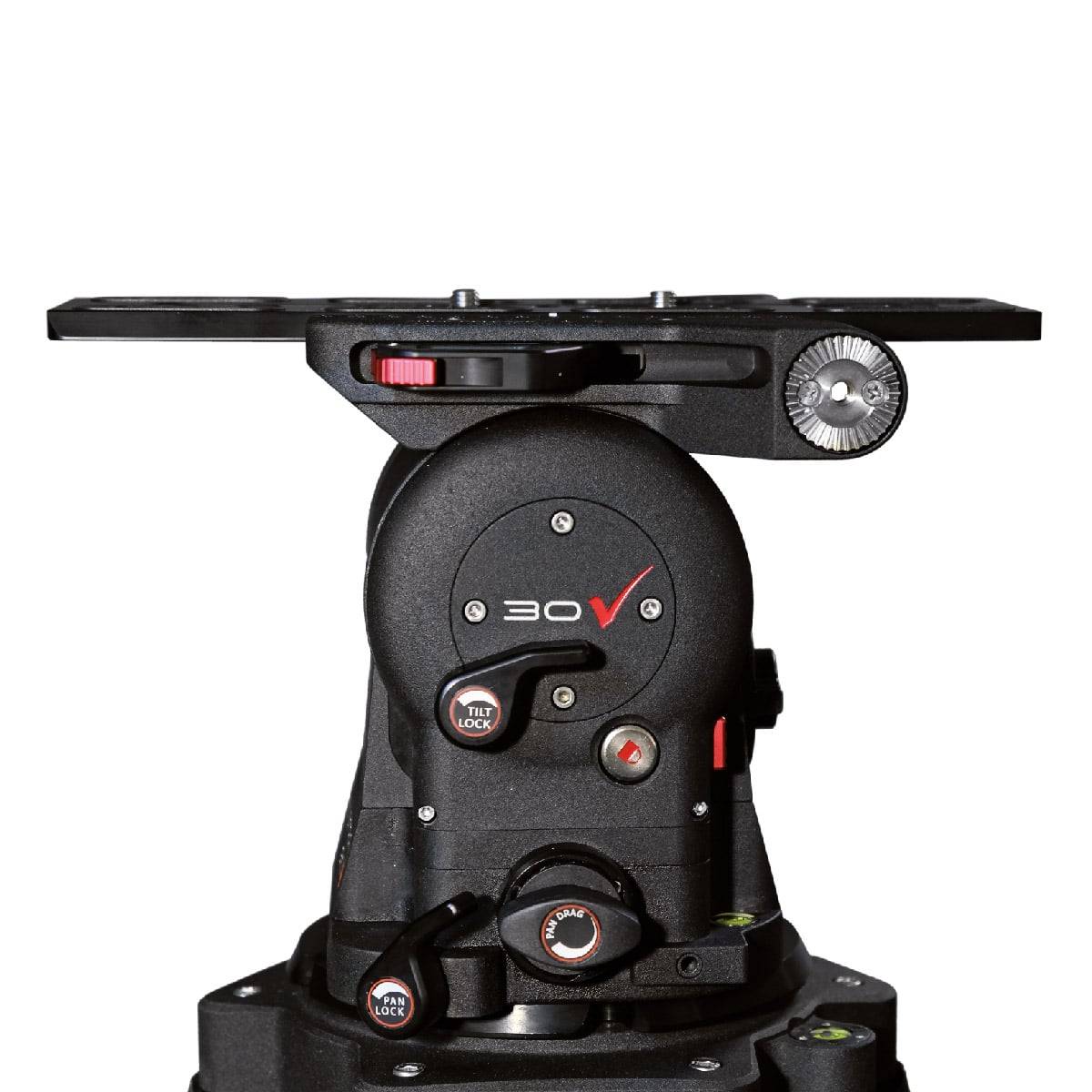

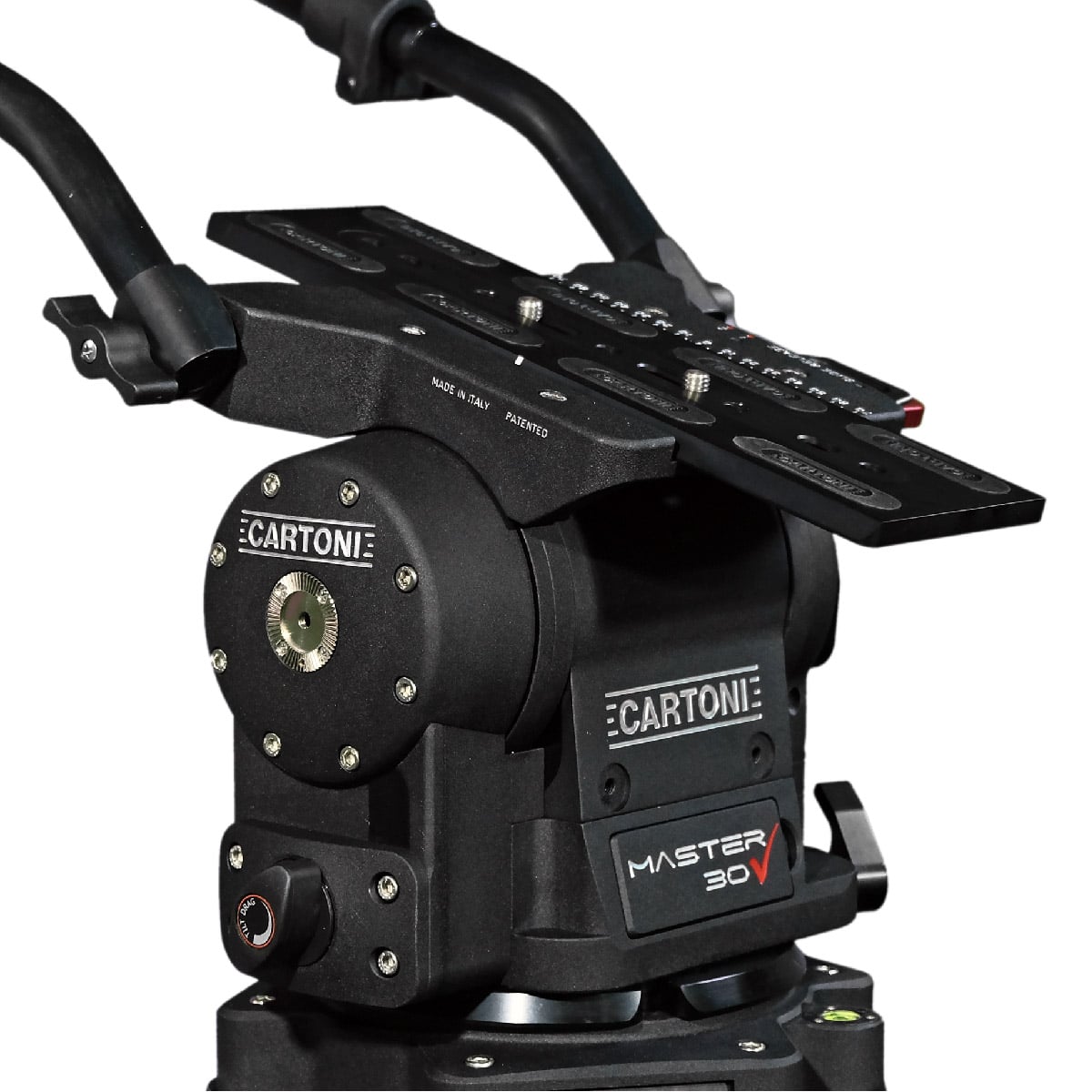

Cartoni Master 30 Fluid Head (HM3000)
The Master 30 is Cartoni's flat Mitchell-base broadcast head for 4K EFP, studio and OB work, rated from 3 kg (7 lbs) to 30 kg (66 lbs). Cartoni's patented planetary fluid module works in both pan and tilt, running from almost freewheeling for fast action up to a consistent maximum drag for long-lens work, with clean starts and stops at either end of the range.
Counterbalance is continuous and holds the camera in place at any angle across the +/- 90 degree tilt range. The head ships with dual telescopic pan bars, an illuminated spirit level and digital readouts for drag and counterbalance settings, and takes a large side-load quick release sliding camera plate. A 150 mm bowl adapter is available as an option. Register within 30 days of purchase for Cartoni's five year warranty.
| Model | HM3000 (Master 30) |
|---|---|
| Minimum Payload | 3 kg - 7 lbs |
| Maximum Payload | 30 kg - 66 lbs |
| Weight | 10.5 kg - 23.1 lbs |
| Base | Flat Mitchell (optional 150 mm bowl adapter) |
| Fluid Drag | Continuous, pan and tilt |
| Counterbalance | Continuous |
| Pan Range | 360 deg |
| Tilt Range | +/- 90 deg |
| Temperature Range | -40 to +60 deg C |
