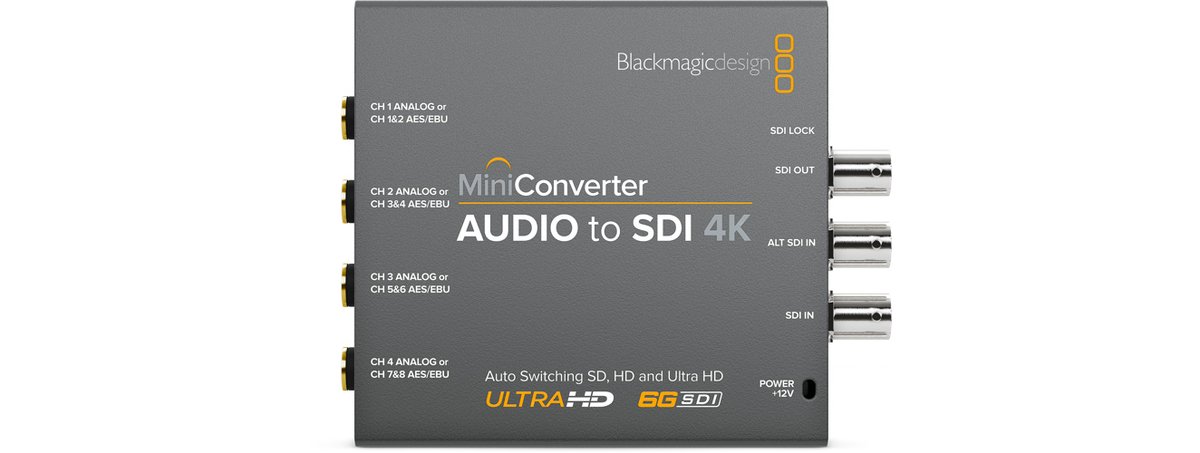

Blackmagic Audio to SDI 4K Mini Converter

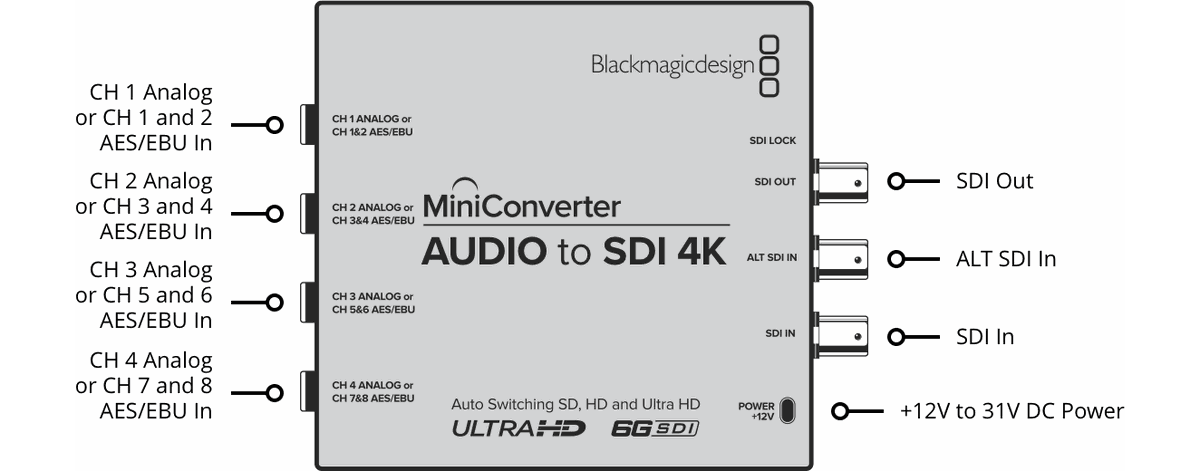

The Blackmagic Audio to SDI 4K Mini Converter embeds external audio into an SDI video stream up to Ultra HD. It takes an SD, HD, or 6G-SDI source plus four channels of balanced analog audio or eight channels of AES/EBU digital audio and lays that audio into the SDI output for a switcher, recorder, or transmission chain.

A second ALT SDI input gives automatic switchover if the main input drops, so a live rack keeps running through a source failure. The converter runs on an included +12V universal power supply and connects over BNC.
