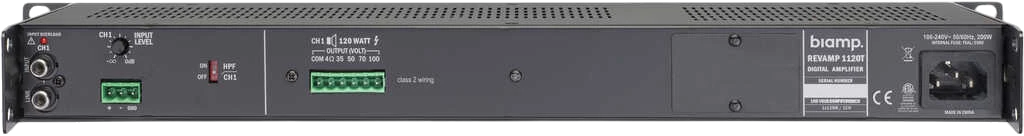

Biamp Commercial Audio REVAMP1120T Power Amplifier

The Biamp Commercial Audio REVAMP1120T is a power amplifier built for retail and hospitality installations. Frequency response is quoted at 50 - 20 kHz. Inputs are 1; Line input balanced: 1.

Power handling is rated at 115 - 230 VAC. Rated output power is 4 ohms 120 watts; Dynamic output power: 8 ohms 60 watts; Output power: 100 volts 120 watts; RMS output power: 4 ohms 120 watts. Nominal impedance is 4 ohms; Applicable low impedance: yes. Power consumption is 200 watts max.

Frequency Response	50 - 20 kHz
Power	Power supply: 115 - 230 VAC
Impedance	Minimum impedance load per channel: 4 ohms; Applicable low impedance: yes
Input Type	Line input unbalanced: 1; Line input balanced: 1
Power Output	Dynamic output power: 4 ohms 120 watts; Dynamic output power: 8 ohms 60 watts; Output power: 100 volts 120 watts; RMS output power: 4 ohms 120 watts
Power Consumption	200 watts max
Dimensions (H x W x D)	1.73 inches (44 mm); Rack units: 1U 1.73 inches (44 mm) x Rack Mounting: 19 inches (483 mm) x 9.40 inches (239 mm (including front); 9.05 inches (230 mm (build in)
Weight	10.14 lbs (4.6 kg)
