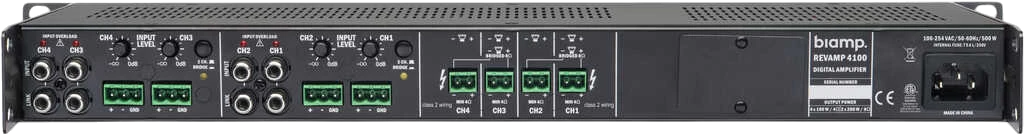

Biamp Commercial Audio REVAMP4100 Power Amplifier

The Biamp Commercial Audio REVAMP4100 is a power amplifier built for retail and hospitality installations. Power handling is rated at Power supply 100 - 254 VAC.

Rated output power is Dynamic output power 4 ohms: 4 x 110 watts; Dynamic output power 8 ohms: 4 x 55 watts; Dynamic output power bridged 8 ohms: 2 x 225 watts. Nominal impedance is 4 ohms; Minimum impedance load bridged per channel: 8 ohms; Applicable low impedance: yes. Power consumption is 500 watts.

PowerPower supply 100 - 254 VAC
ImpedanceMinimum impedance load per channel: 4 ohms; Minimum impedance load bridged per channel: 8 ohms; Applicable low impedance: yes
Power OutputDynamic output power 4 ohms: 4 x 110 watts; Dynamic output power 8 ohms: 4 x 55 watts; Dynamic output power bridged 8 ohms: 2 x 225 watts
Power Consumption500 watts
CoolingConvection
ChannelsChannel separation > 65 dB @ 1 kHz; Output channels: 4
Dimensions (H x W x D)1.73 inches (44 mm) x Rack Mounting: 19 inches (483 mm) x (build in) 9.05 inches (230 mm); (incl front) 9.40 inches (239 mm)
AmplifierPower amp topology: class-D
