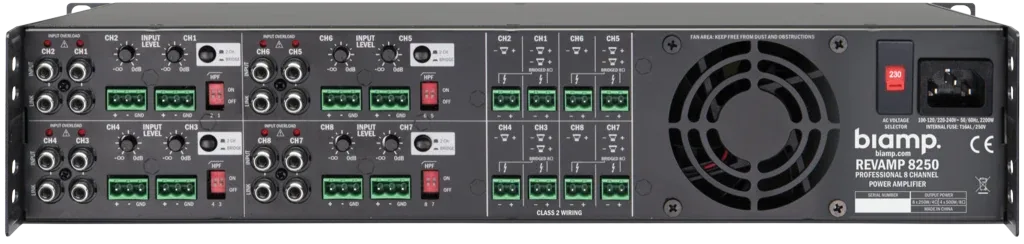

Biamp Commercial Audio REVAMP8250 Power Amplifier

The Biamp Commercial Audio REVAMP8250 is a power amplifier built for retail and hospitality installations. Frequency response is quoted at 50 - 20 kHz.

Power handling is rated at Power supply 115 - 230 VAC. Rated output power is Dynamic output power 4 ohms: 8 x 350 watts; Dynamic output power 8 ohms: 8 x 175 watts; Dynamic output power bridged 8 ohms: 4 x 650 watts. Nominal impedance is 4 ohms; Minimum impedance load bridged per channel: 8 ohms; Applicable low impedance: yes. Power consumption is 2200 watts.

Frequency Response50 - 20 kHz
PowerPower supply 115 - 230 VAC
ImpedanceMinimum impedance load per channel: 4 ohms; Minimum impedance load bridged per channel: 8 ohms; Applicable low impedance: yes
Power OutputDynamic output power 4 ohms: 8 x 350 watts; Dynamic output power 8 ohms: 8 x 175 watts; Dynamic output power bridged 8 ohms: 4 x 650 watts
Power Consumption2200 watts
Weight47.84 lbs (21.7 kg)
Dimensions (H x W x D)1U: 1.73 inches (44 mm): 2 Rack units x Rack Mounting: 19 inches (483 mm) x 13.07 inches (338 mm (including front); 12.99 inches (build in) 330 mm)
ChannelsChannel separation > 60 dB @ 1 kHz; Output channels: 8

Resources and support

Compatibility helpCall (201) 791-1400 to confirm signal format, connections, and workflow fit. Biamp product familyContinue browsing the full Biamp range we carry.
