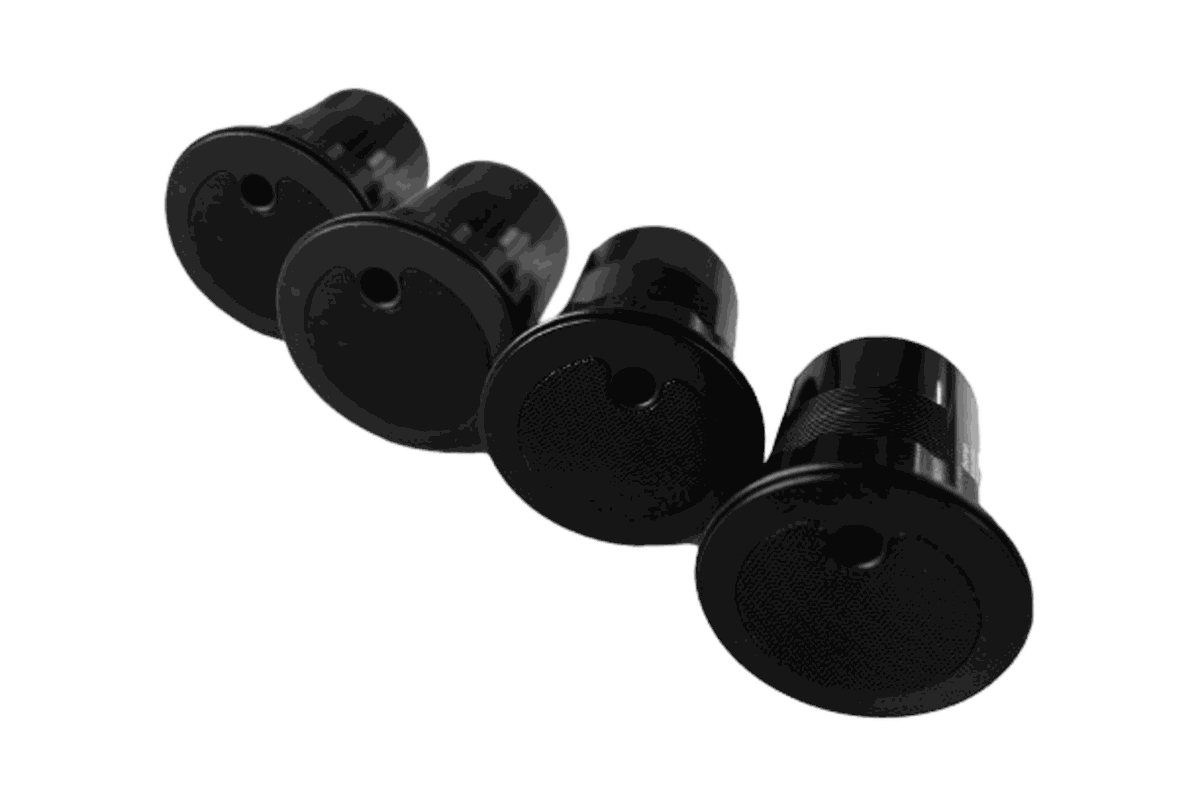

Biamp Cambridge E-P-B Sound Masking Emitter

The Biamp Cambridge E-P-B is a sound masking emitter built for sound masking and speech privacy systems. Frequency response is quoted at Sound Masking: 100 Hz to 6.8 kHz; Music/Paging (-10dB)2: 105 Hz to 12 kHz. Coverage is 170 deg conical / half space. Rated SPL is SPL1 Minimum Masking SPL (@ 1m): 30dBA; Maximum Masking SPL (@ 1m): 60dBA; Maximum Music/Paging SPL (@ 1m): 74dBA.

Nominal impedance is 40 k ohms. Network connections are I/O Connectors: 2 RJ-45 connectors. Power consumption is 2 W. The enclosure is Front Vented. Order it in 3 versions: E-P-B-16-4, E-P-B-25-4, E-P-B-30-4.

Frequency Response	Sound Masking: 100 Hz to 6.8 kHz; Music/Paging (-10dB)2: 105 Hz to 12 kHz
Impedance	40 k ohms
Dispersion	170 deg conical / half space
SPL	SPL1 Minimum Masking SPL (@ 1m): 30dBA; Maximum Masking SPL (@ 1m): 60dBA; Maximum Music/Paging SPL (@ 1m): 74dBA
Network Connection(s)	I/O Connectors: 2 RJ-45 connectors
Power Consumption	Maximum Power Consumption: 2 W
Enclosure	Front Vented
Included Accessories	Acoustic Ceiling Tile Mounting Ring UTP Cable (16ft/25ft/30ft)
