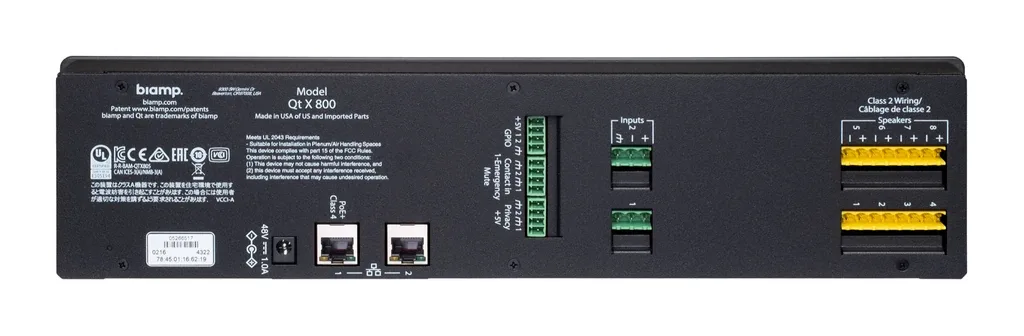

Biamp Cambridge Qt X 800D Sound Masking Generator

The Biamp Cambridge Qt X 800D is a sound masking generator built for sound masking and speech privacy systems. Inputs are Captive Screw Terminal; Number of Inputs: 2 (Stereo or Mono); Input Level: +24dBu (12.3VRMS max); Input Gain Range: 6dB steps.

Power handling is rated at PoE (IEEE 802.3at), Connected on Network position 1; Power Optional DC 48V dc @ 1Amp (max). Audio: Output Connector Type: Captive Screw Terminal; Number of Outputs: 8; Nominal Output Impedance: 4 ohms. Control connection is Connector Type: Captive Screw Terminal; Input Type: Contact Closure (Normally Open); Number of Inputs: 2. It is rated for Indoor use.

Power	Power PoE: PoE (IEEE 802.3at), Connected on Network position 1; Power Optional DC 48V dc @ 1Amp (max)
Input Type	Input Connector Type: Captive Screw Terminal; Number of Inputs: 2 (Stereo or Mono); Input Level: +24dBu (12.3VRMS max); Input Gain Range: 6dB steps
Audio	Output Connector Type: Captive Screw Terminal; Number of Outputs: 8; Nominal Output Impedance: 4 ohms
Control	Remote Control: Connector Type: Captive Screw Terminal; Input Type: Contact Closure (Normally Open); Number of Inputs: 2; Output Type: Logic Status (5VDC)
Included Accessories	Plenum T-bar mount with wire hanger positions
Operating Environment	Indoor
Dimensions (H x W x D)	3.5 inches (89mm) x 14 5/8 inches (371.5mm) x 3.8 inches (97mm)
Ambient Operating Temperature Range	40 - 104 deg F (4 - 40 deg C)
