Biamp Cambridge Qt X 300D Sound Masking Generator

The Biamp Cambridge Qt X 300D is a sound masking generator built for sound masking and speech privacy systems. Inputs are Captive Screw Terminal; Number of Inputs: 2 (Mono); Input Level: +24dBu (12.3VRMS max); Input Gain Range: 6dB steps.

Power handling is rated at Operating Voltage: 100-240VAC 50/60Hz; Current Draw: 0.9A; Output: 24VDC @ 2.7A; Max. Power Consumption (24VDC): 22W. Audio: Output Connections: (6) RJ-45. Control connection is Connector Type: Captive Screw Terminal; Input Type: Contact Closure (Normally Open); Number of Inputs: 2. It is rated for Indoor use.

Power	Power Supply: Operating Voltage: 100-240VAC 50/60Hz; Current Draw: 0.9A; Output: 24VDC @ 2.7A; Max. Power Consumption (24VDC): 22W
Input Type	Input Connector Type: Captive Screw Terminal; Number of Inputs: 2 (Mono); Input Level: +24dBu (12.3VRMS max); Input Gain Range: 6dB steps

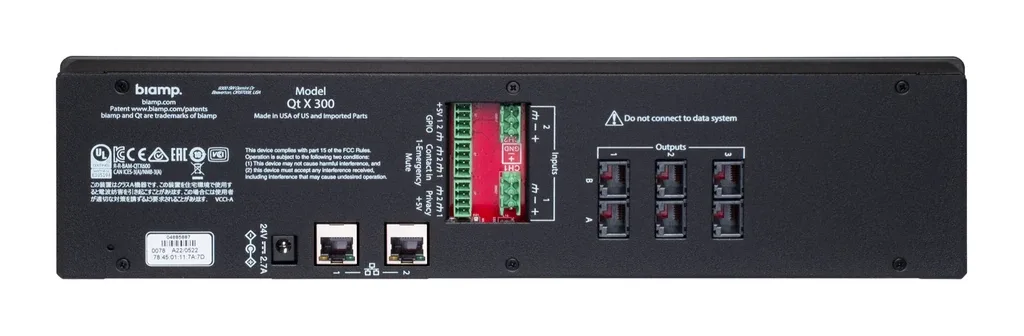

Audio	Output Connections: (6) RJ-45
Control	Remote Control: Connector Type: Captive Screw Terminal; Input Type: Contact Closure (Normally Open); Number of Inputs: 2; Output Type: Logic Status (5VDC)
Included Accessories	ACT Hole Saw, Wall Bracket
Operating Environment	Indoor
Dimensions (H x W x D)	3.5 inches (89mm) x 14 5/8 inches (371.5mm) x 3.8 inches (97mm)
Ambient Operating Temperature Range	40 - 104 deg F (4 - 40 deg C)
