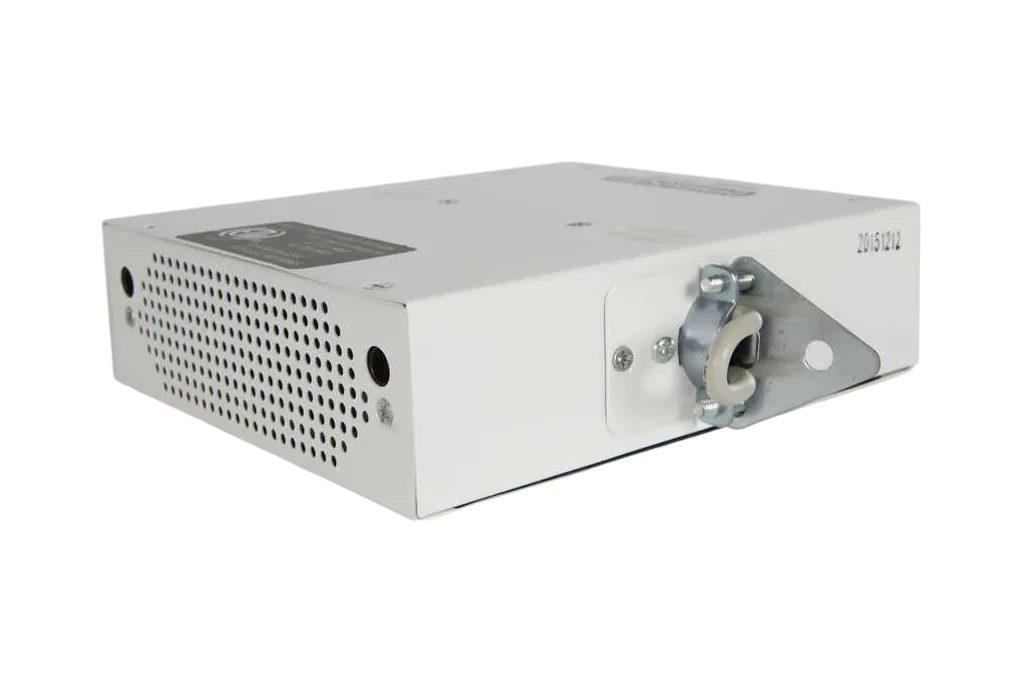

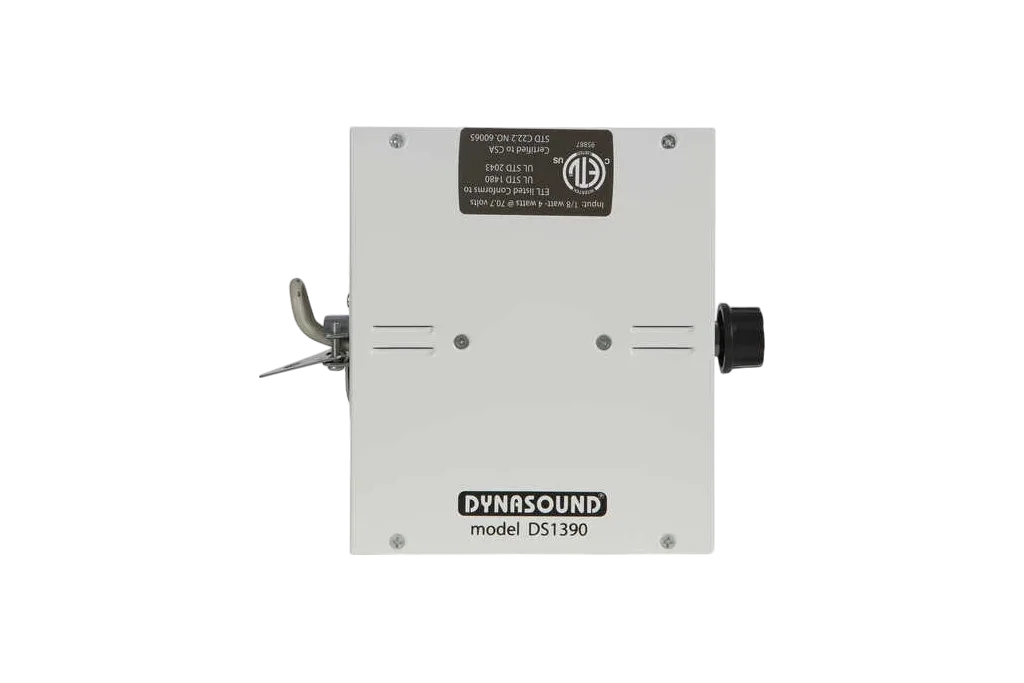

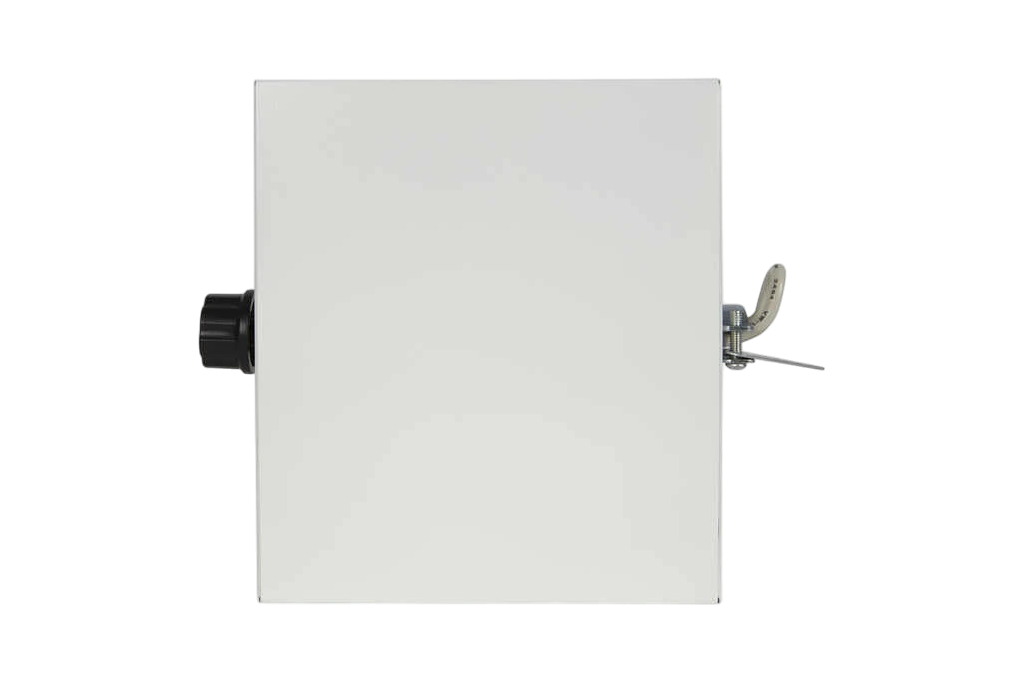

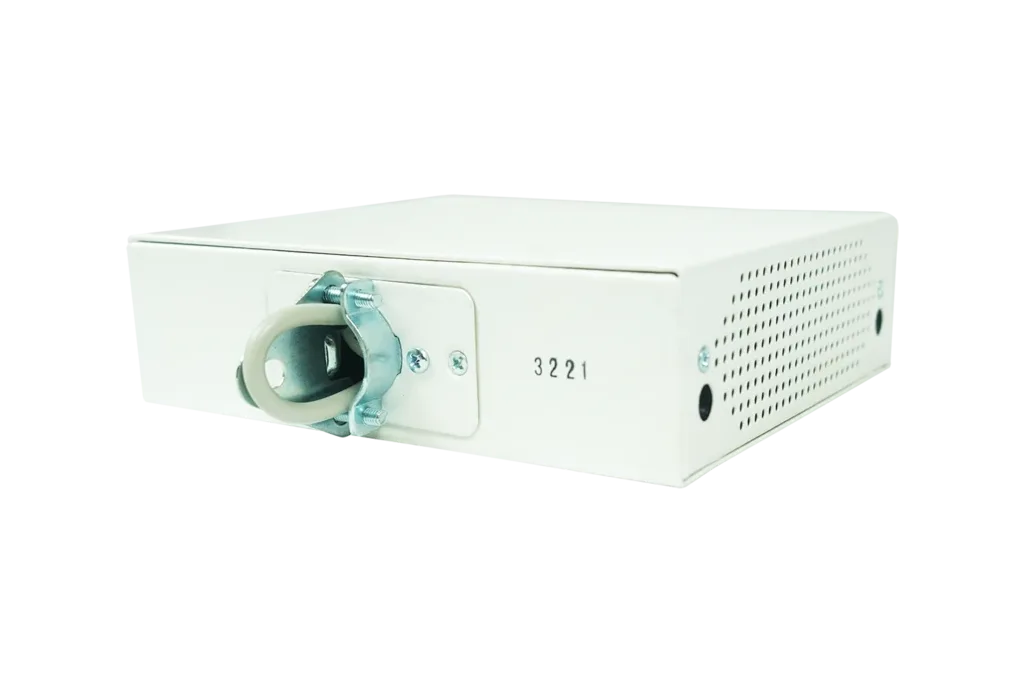

Biamp Cambridge DS1390B Sound Masking Emitter
The Biamp Cambridge DS1390B is a low-profile 70V sound masking loudspeaker built for sound masking and speech privacy systems, supplied with a tile bridge for ceiling plenums. Its dual horizontally opposed high performance drivers (Qty 2 - 4-inch x 1.5-inch) sit in tuned ports and throw uniform 360-degree dispersion, suited to reverberant underfloor cavities as shallow as 1-3/4 inch and to shallow ceiling plenums where a conventional masking speaker will not fit. Frequency response is quoted at 10dB down: 160Hz to 6300Hz.
Power handling is 4 Watts @ 70.7 V from an internal transformer with taps at 1/8, 1/4, 1/2, 1, 2 and 4 watts. The front-vented enclosure is cold rolled 1 mm steel with a powder coat, 1.8 in high by 5.25 x 6.25 in, and weighs 2 lbs. It is ETL listed to UL1480 and CSA C22.2 60065, meets WELL criteria for sound masking and carries a 5-year warranty.
- Frequency Response10dB down: 160Hz to 6300Hz
- PowerPower Handling: 4 Watts @ 70.7 V
- Weight2 lbs
- MaterialCold rolled steel plate, thickness: 1mm, powder coated
- DriversQty 2 - 4-inch x1.5-inch
| Loudspeaker Type | Dual horizontally opposed high performance drivers. 70.7 Volt |
|---|---|
| Drivers | Qty 2 - 4-inch x1.5-inch |
| Frequency Response | 10dB down: 160Hz to 6300Hz |
| Power | Power Handling: 4 Watts @ 70.7 V |

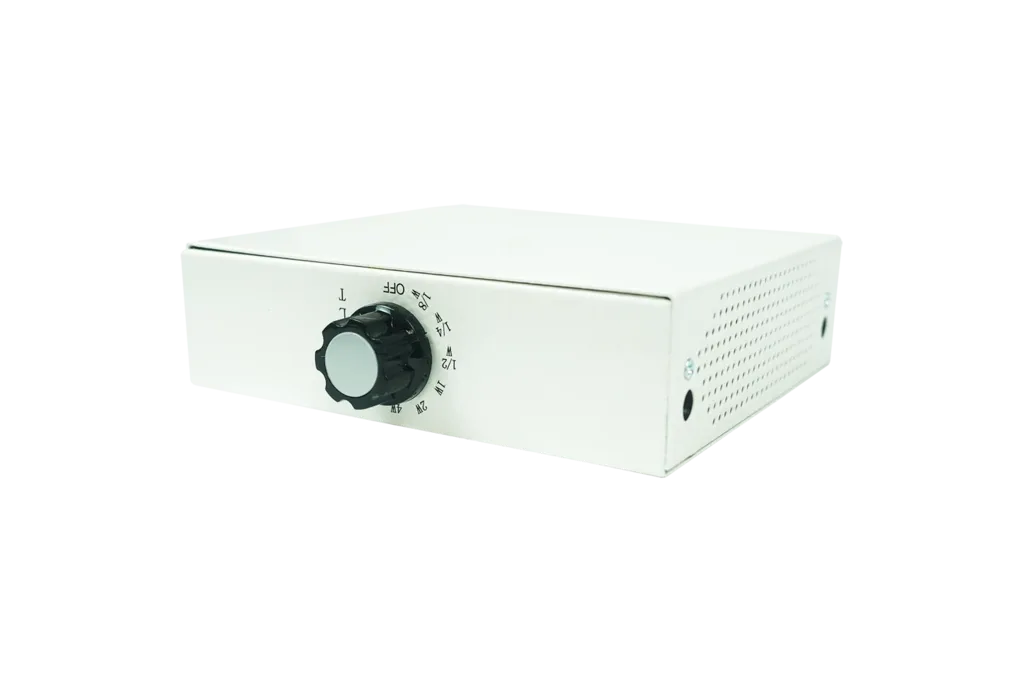

| Transformer | Taps: 1/8,1/4, 1/2,1,2,4 watts |
| Enclosure | Front vented |
| Weight | 2 lbs |
| Material | Cold rolled steel plate, thickness: 1mm, powder coated |
| Included | Mounting bridge (tile bridge) |
| Warranty | 5 years |
