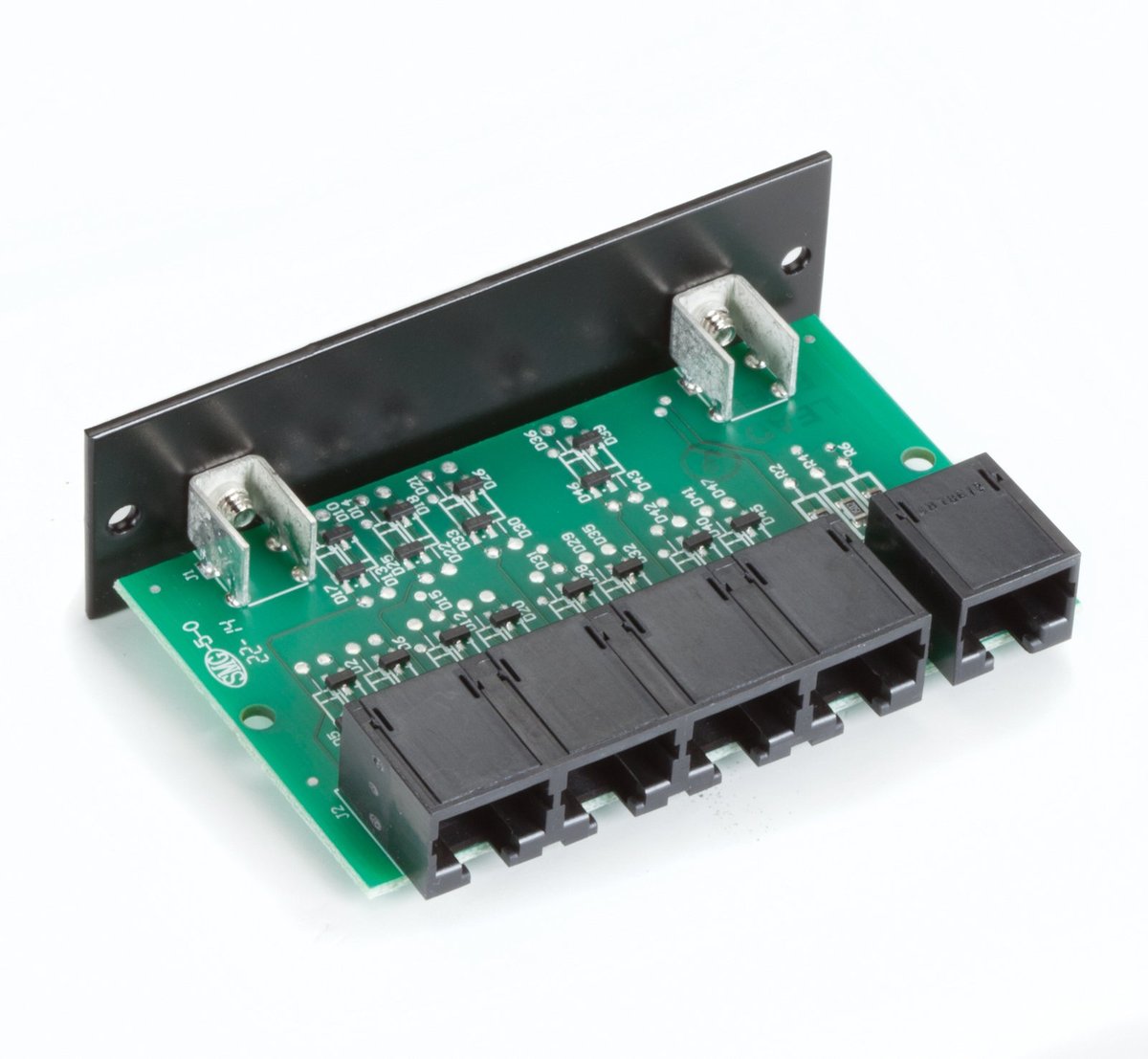

Black Box TL421-C RS232 Passive Splitter Rackmount Card - RJ45, 4-Port

The TL421-C handles the serial side of an installation: RJ45, 4-Port. Interface: RS-232. Connectors are (1) Single-Style RJ45 Master Connector.

Power: Non-powered. Approvals: CE, RoHS2.

Interface	RS-232
Connectors	(1) Single-Style RJ45 Master Connector; (1) Quad-Style RJ45 Connector
Leads Supported	Pins 3,4,5,7, and 8 connected straight through between the MASTER and PORT 1-n. Pins 1, 2, and 6 "diode ORed" from PORT 1-n to the MASTER port
Power	Non-powered; no power supply required
Humidity	up to 95% non-condensing
Weight	1.6-oz. (45-g)
Approvals	CE, RoHS2
MTBF	>100,000 hours
