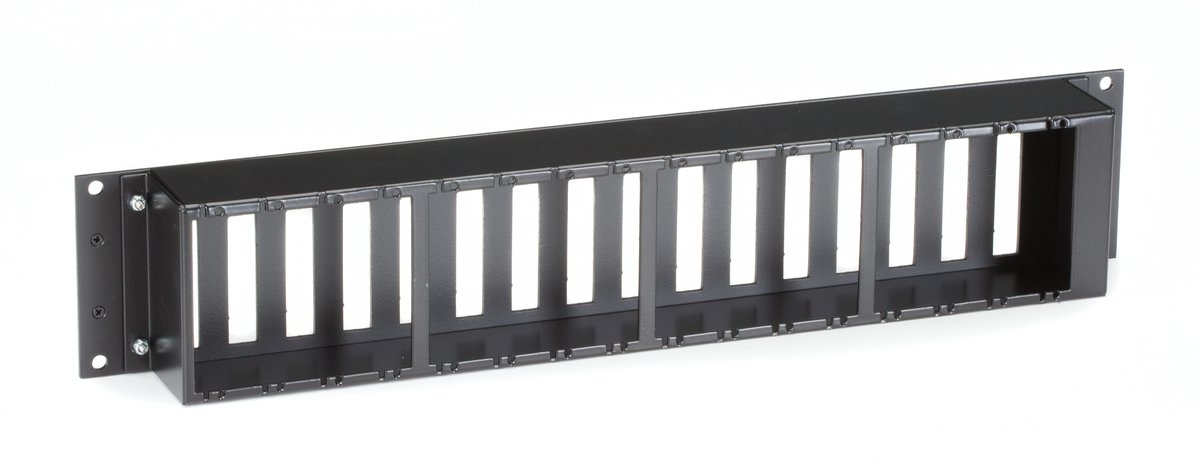

Black Box TL400A RS232 Passive Splitter Rackmount Chassis - 2U, RJ45

The TL400A handles the serial side of an installation: 2U, RJ45. Interface: RS-232. Connectors are (1) Single-Style RJ45 Master Connector.

Power: Non-powered. It measures 3.47-in. H x 19-in. W x 2.25-in. D (8.8 x 48.3 x 5.7-cm).

Interface	RS-232
Connectors	(1) Single-Style RJ45 Master Connector; (1) Quad-Style RJ45 Connector
Leads Supported	Pins 3,4,5,7, and 8 connected straight through between the MASTER and PORT 1-n. Pins 1, 2, and 6 "diode ORed" from PORT 1-n to the MASTER port
Power	Non-powered; no power supply required
Humidity	up to 95% non-condensing
Dimensions	3.47-in. H x 19-in. W x 2.25-in. D (8.8 x 48.3 x 5.7-cm)
Weight	5-lb. (2.27-kg) (chassis plus 16 modem splitter cards installed)
Approvals	CE, RoHS2
