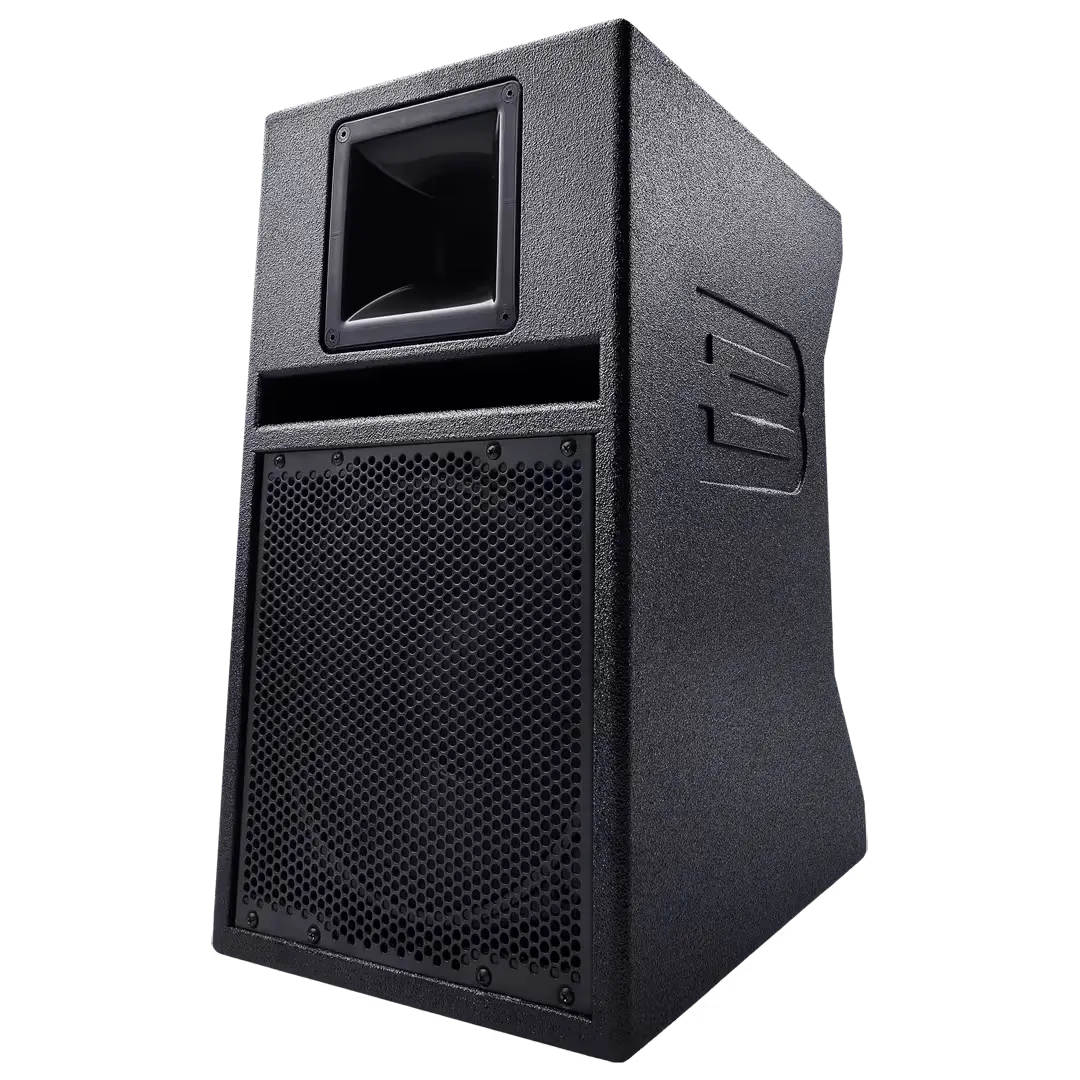

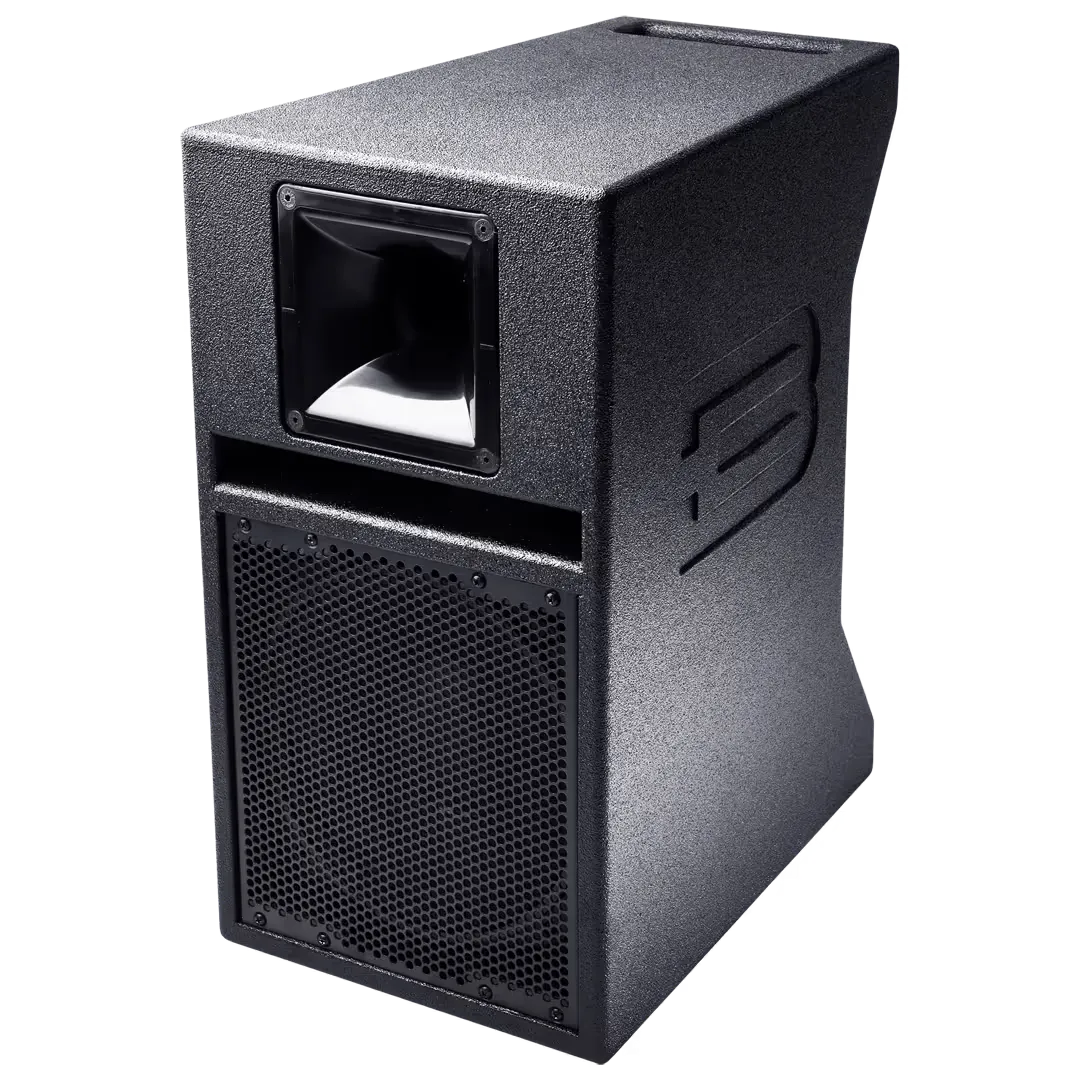

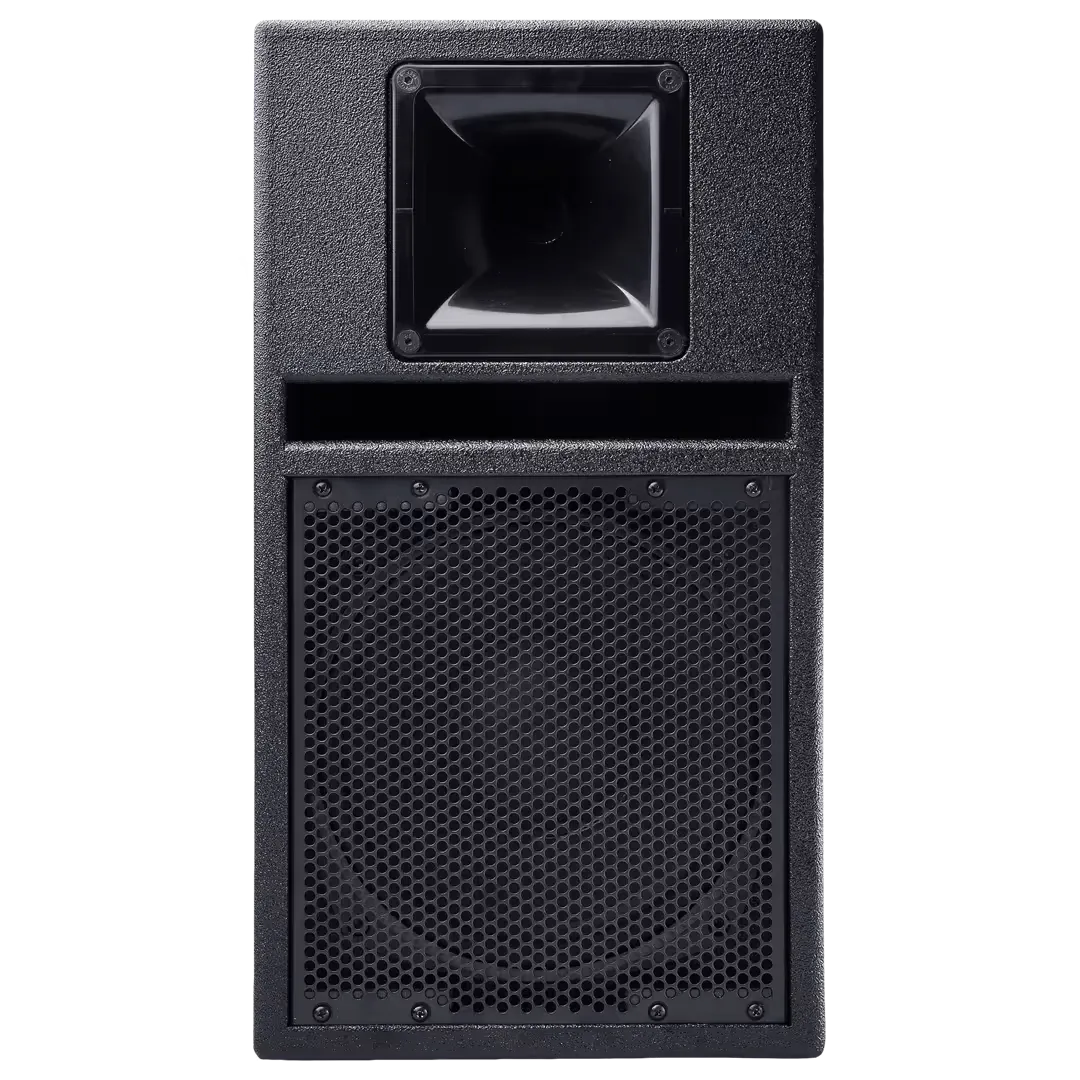

BassBoss SV9-MK3 Single 9 inch Powered Top

The SV9-MK3 is BassBoss's smallest full-range top, built around a 9-inch neodymium woofer with a carbon-fiber cone and a 1.5-inch compression driver on a rotatable 90 x 60 degree constant-directivity horn. 1,200 watts of Class D amplification holds 118 dB sustained and 121 dB peak from 50 Hz up, at 27.5 pounds including the amplifier.

A single 35mm pole socket and two integrated handles keep it fast to deploy on a stand or pole over a subwoofer for monitor or fill duty. Power comes in on Neutrik powerCON True1 from an auto-sensing 100-240 VAC supply, with the same eight onboard presets and ControlBASS networking as the rest of the MK3 line.

Frequency Response	50 - 19,000 Hz (+/- 3 dB)
Max Sustained SPL	118 dB at 1 m half-space
Peak SPL	121 dB at 1 m half-space
Dispersion	90 x 60 degrees, rotatable constant directivity
Transducers	1 x 9 inch (220mm) neodymium woofer with carbon-fiber cone, 1.5 inch compression driver
Amplifier	1,200 W Class D, 2-channel
Current Draw	1.4 A at 120 V / 0.7 A at 240 V
Dimensions / Weight	18 x 10 x 15 in / 27.5 lb (12.8 kg)
