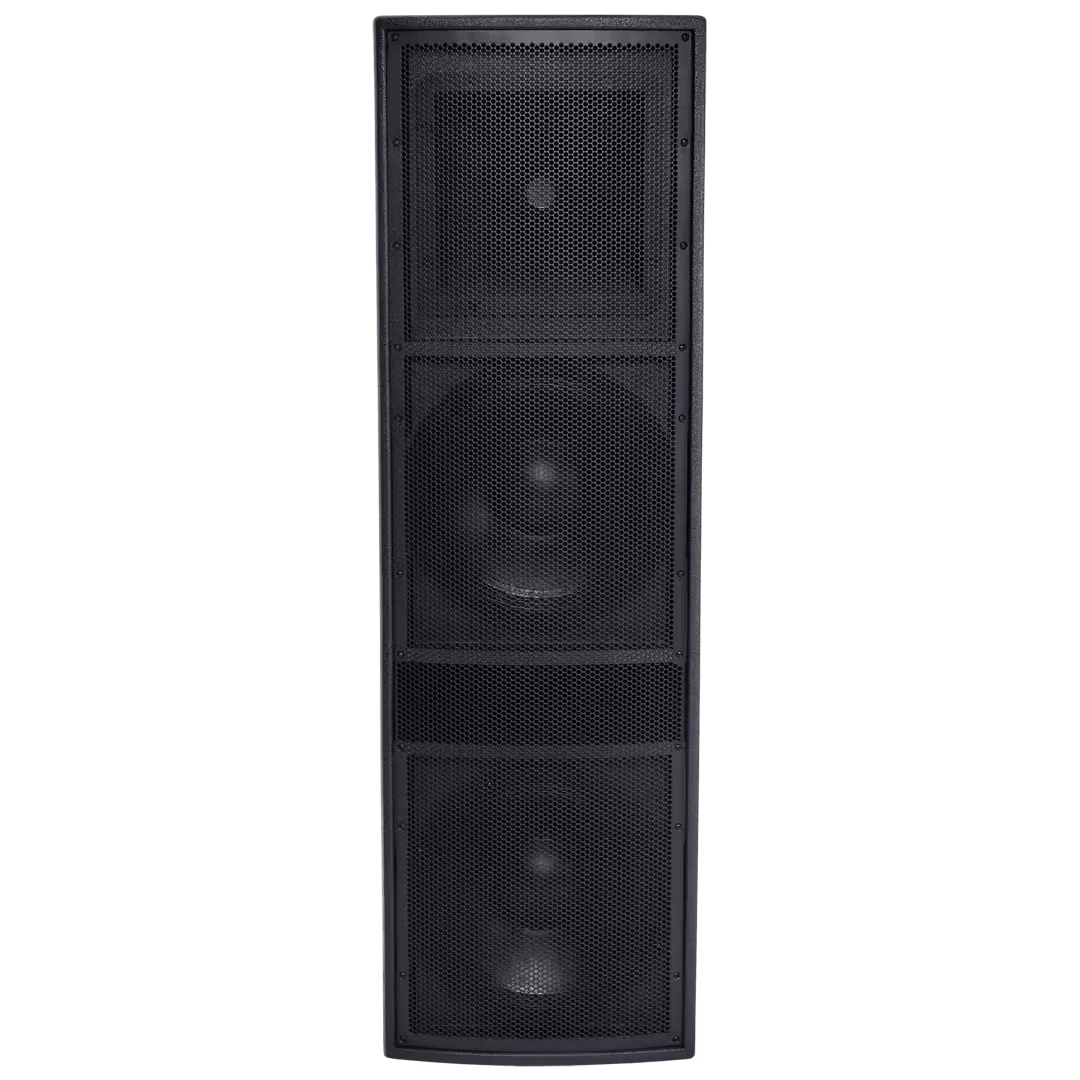

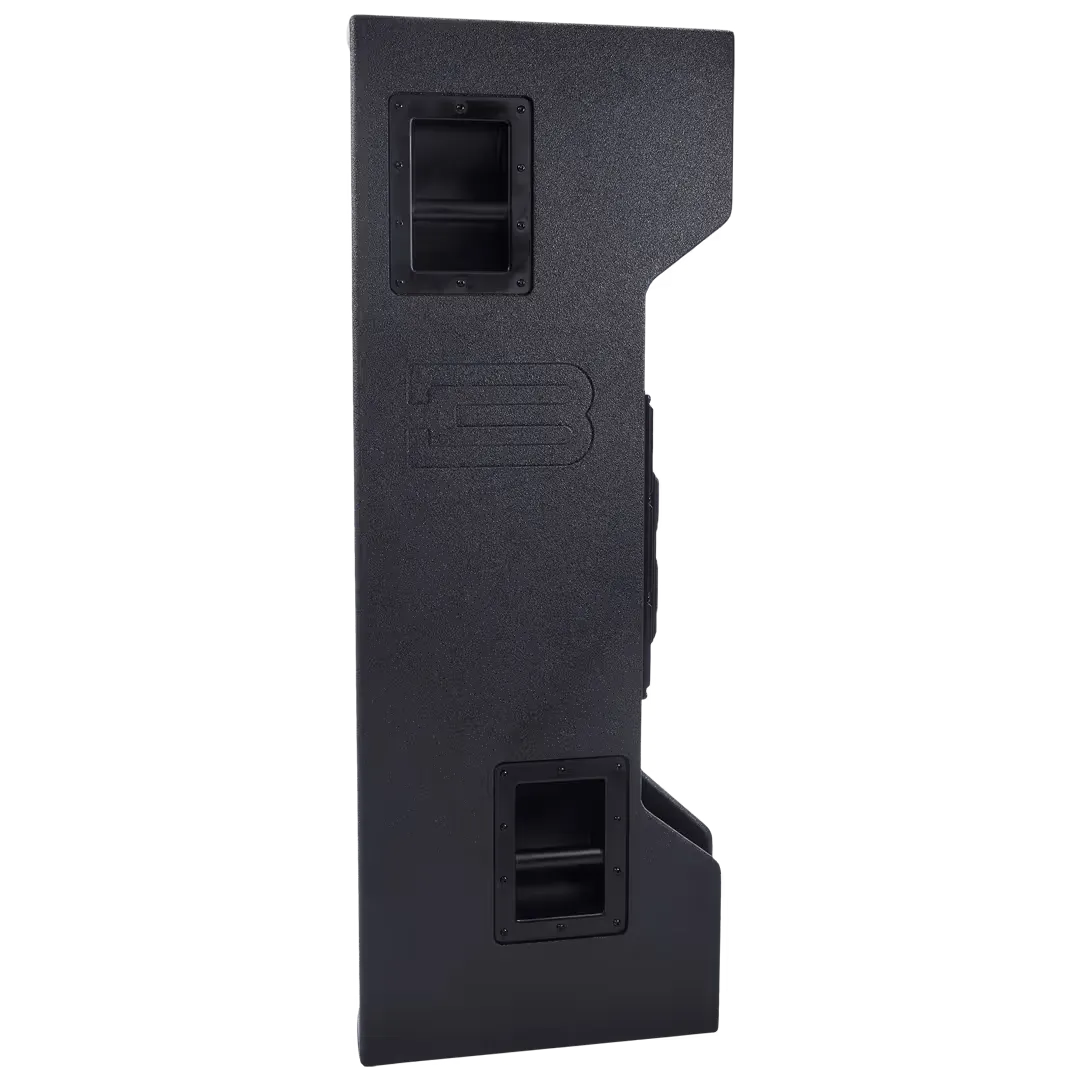

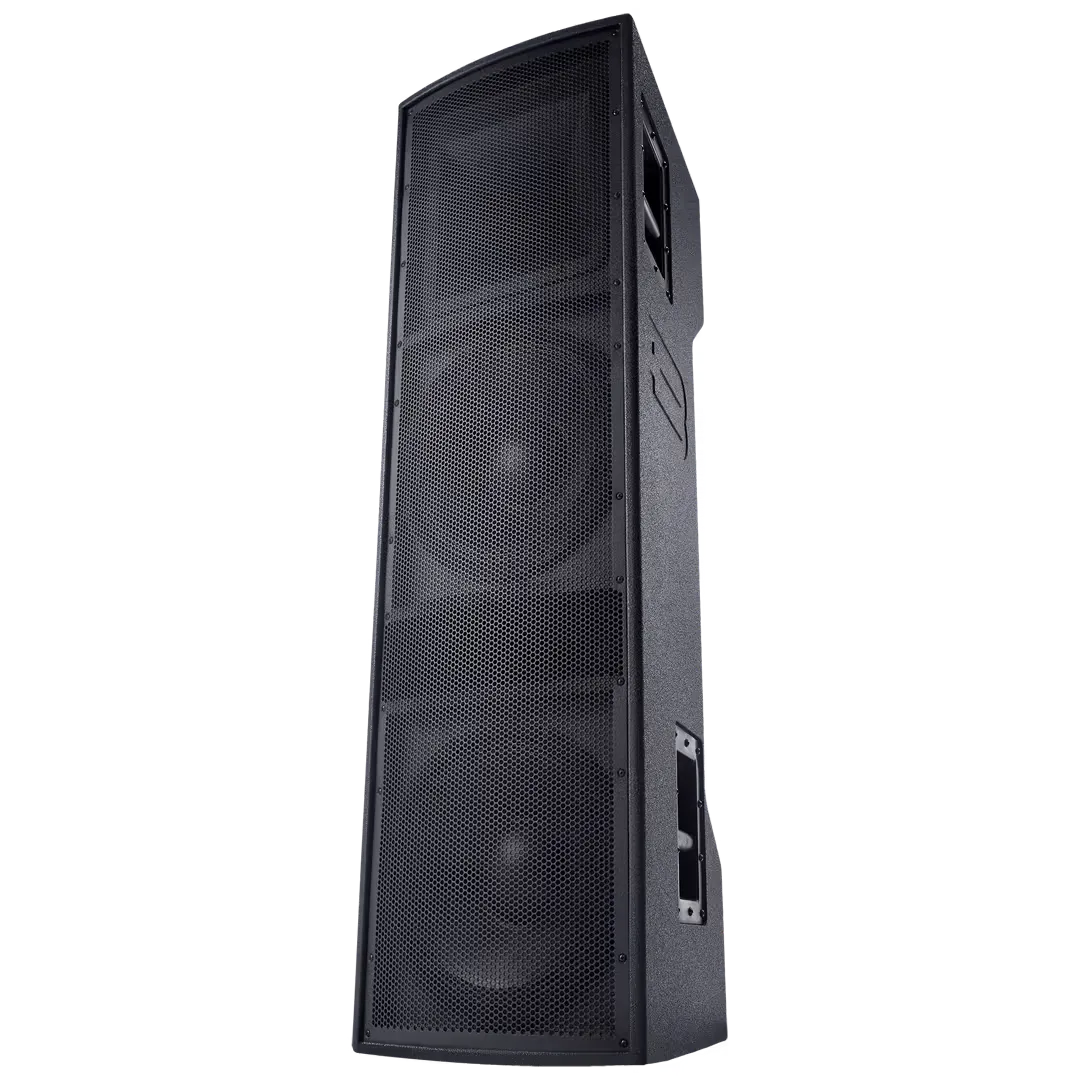

BassBoss AT212-MK3 Dual 12 inch Powered Top

The AT212-MK3 is a tall, slim full-range top built around two high-sensitivity 12-inch neodymium woofers and a 3-inch compression driver on a cast-aluminum, rotatable 80 x 60 degree horn. Its 3,200 watts of Class D amplification (2,400 W to the lows, 800 W to the highs) hold 136 dB sustained and peak at 142 dB from 50 Hz up, in a cabinet light enough to fly from most rigging and stack straight onto an SSP218, Makara, or Kraken sub.

Four M10 fly points, a single 35mm pole socket, and Neutrik powerCON True1 in/out keep rigging and power simple, and the DSP holds eight onboard presets plus a hundred more over ControlBASS via Ethernet. The auto-sensing 100-240 VAC supply and dado-jointed Baltic birch enclosure are shared across the MK3 platform.

Frequency Response	50 - 18,000 Hz (+/- 3 dB)
Max Sustained SPL	136 dB at 1 m half-space
Peak SPL	142 dB at 1 m half-space
Dispersion	80 x 60 degrees, rotatable constant directivity horn
Transducers	2 x 12 inch (300mm) neodymium woofers, 3 inch compression driver on a 1.4 inch exit
Amplifier	3,200 W Class D, 2-channel (2,400 W LF / 800 W HF)
Current Draw	4.6 A at 120 V / 2.3 A at 240 V
Dimensions / Weight	47.75 x 14.3 x 17.75 in / 99 lb (45 kg)
