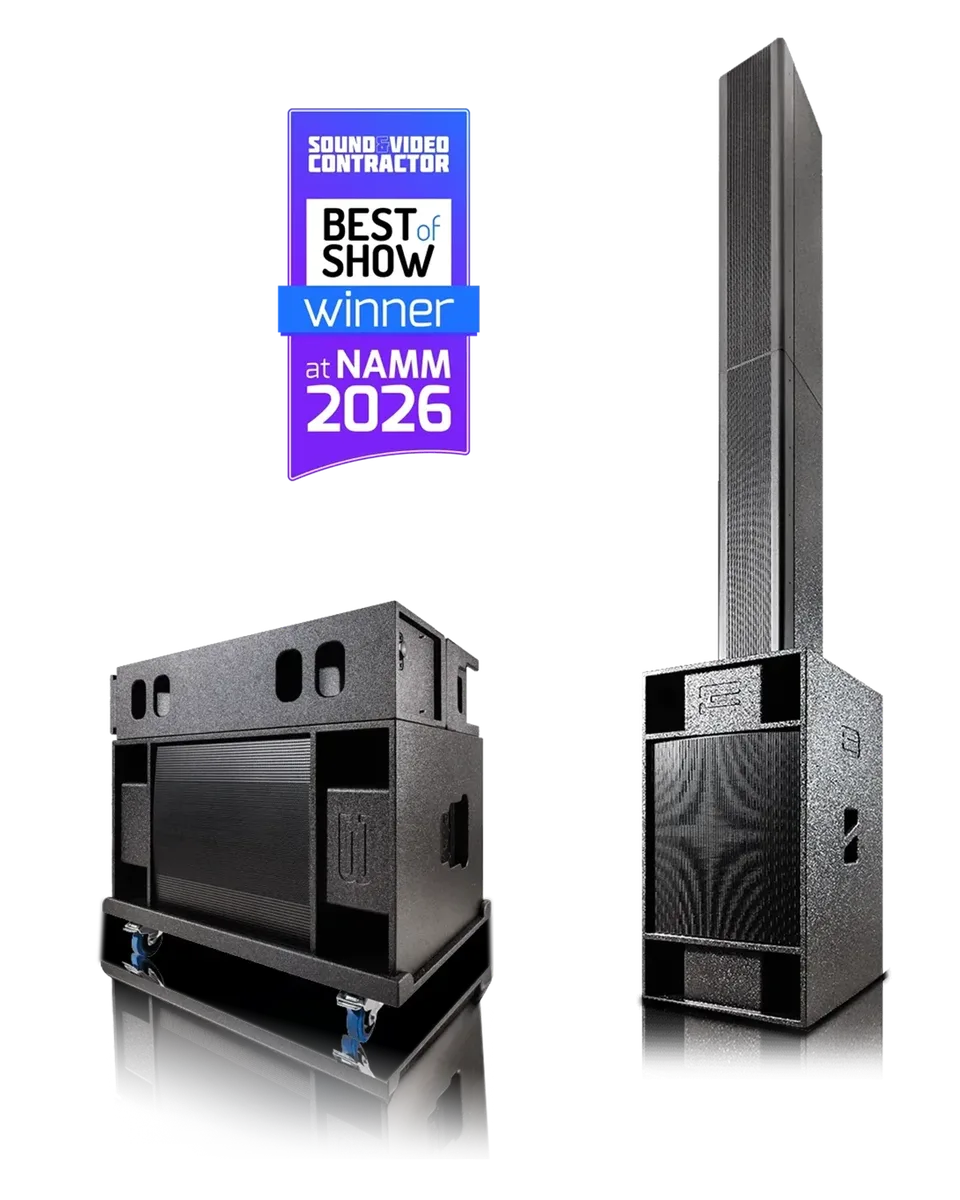

BassBoss Sublim8 Self-Powered Column Full-Range System

Sublim8 is a 3-section self-powered column system: a subwoofer cabinet with an 18-inch neodymium woofer, a spacer section, and a mid-high cabinet carrying two 8-inch neodymium woofers and a 3-inch compression driver on an isophasic wave guide. 4,000 watts of Class D amplification across the three sections holds 130 dB sustained and 133 dB peak through a 120 x 20 degree pattern from 35 Hz up.

All three sections travel on an included transport dolly with four locking casters, along with section covers and pass-through cabling that link the stack without extra cable runs. It ships in black or white to match the room, with a pass-through outlet on the sub section for powering a top-mounted lighting fixture. Power comes in on Neutrik powerCON True1 from an auto-sensing 100-240 VAC supply, with ControlBASS handling preset control over Ethernet.

Frequency Response	35 - 19,000 Hz (+/- 3 dB)
Max Sustained SPL	130 dB half-space
Peak SPL	133 dB half-space
Dispersion	120 x 20 degrees
Transducers	1 x 18 inch LF woofer, 2 x 8 inch MF woofers, 3 inch compression driver
Amplifier	4,000 W Class D (2,400 W LF / 800 W MF / 800 W HF)
Current Draw	5.4 A at 120 V / 2.5 A at 240 V
Dimensions / Weight	Assembled 106 x 19.75 x 24 in / 200 lb (90.7 kg)
