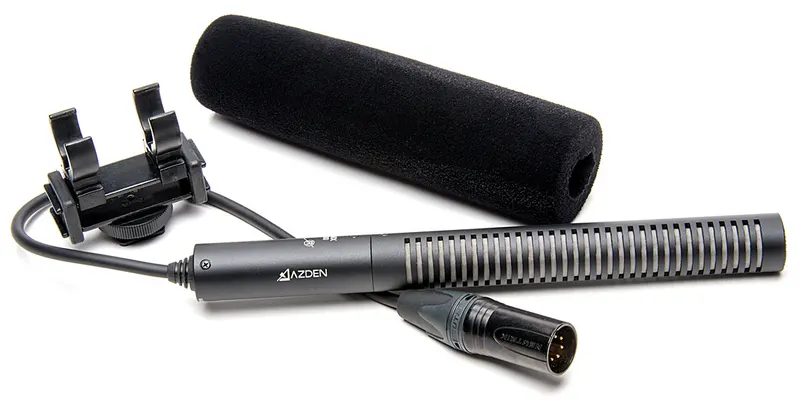

Azden SMX-100
Stereo Shotgun Microphone

The SMX-100 is a high quality stereo shotgun microphone. Designed for broadcasters, videographers and audio professionals, the SMX-100 offers wide frequency response in a compact, lightweight camera-mount design. The M-S pick-up configuration means recorded signals are stereo and mono compatible making the SMX-100 an excellent choice for all video-based audio applications.

External phantom power between 11 and 52 VDC is required to operate the microphone, which terminates with a hard-wired 5 pin XLR connector. The SMX-100 is 8.5" long and comes complete with a custom carrying case, high density foam windscreen and shock-mount microphone holder.

Features

• Handcrafted in Japan
• Designed for broadcasters, videographers and audio professionals
• Stereo microphone
• Wide frequency response
• High max SPL at 120dB
• Phantom powered condensor
• 5-pin XLR output

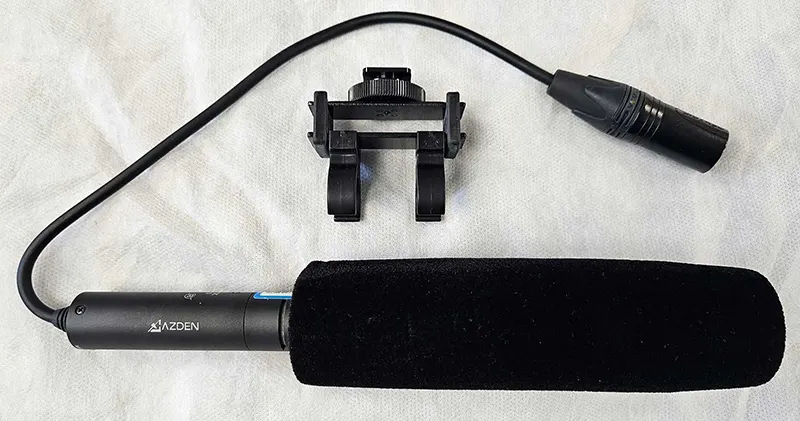

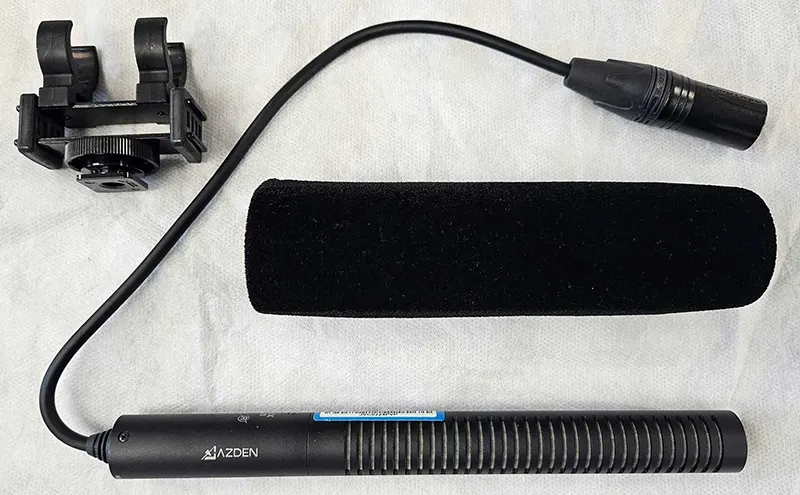

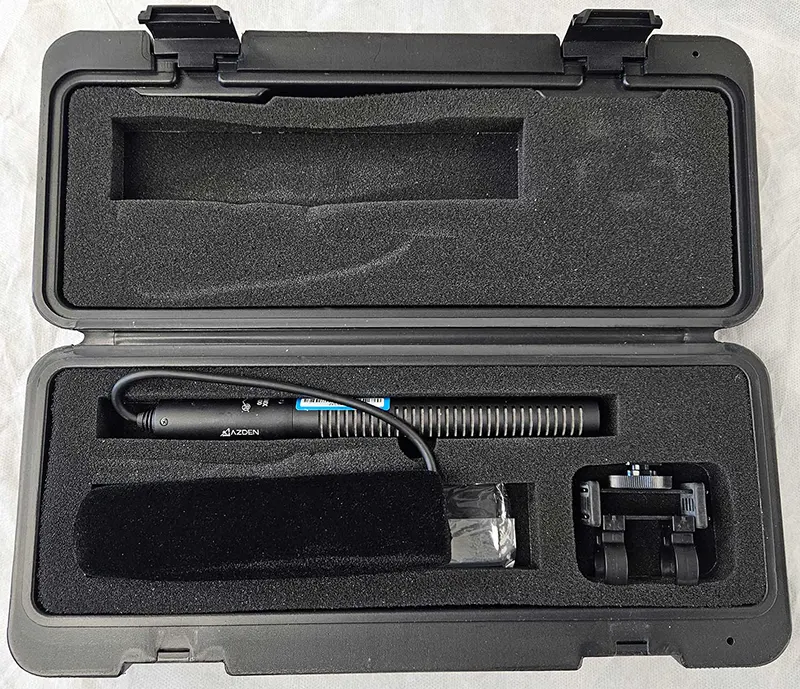

• Comes with shock mount, windscreen, and custom carrying case

Specs

• Frequency Response: 20-18,000Hz
• Sensitivity: Uni-directional -33dB @ 1kHz Re: 1v/PA
• Impedance: 180 Ohms at 1kHz
• Max SPL Input Level: 120dB (1kHz @1% T.H.D.)
• Signal To Noise Ratio: 70dB
• Power: Phantom 11-52VDC
• Weight: 110g (3.88oz)
• Size: 21mm x 180mm (0.83″ x 8.66”)
• Connector: 5-Pin XLR
