Aviom A320 Personal Mixer

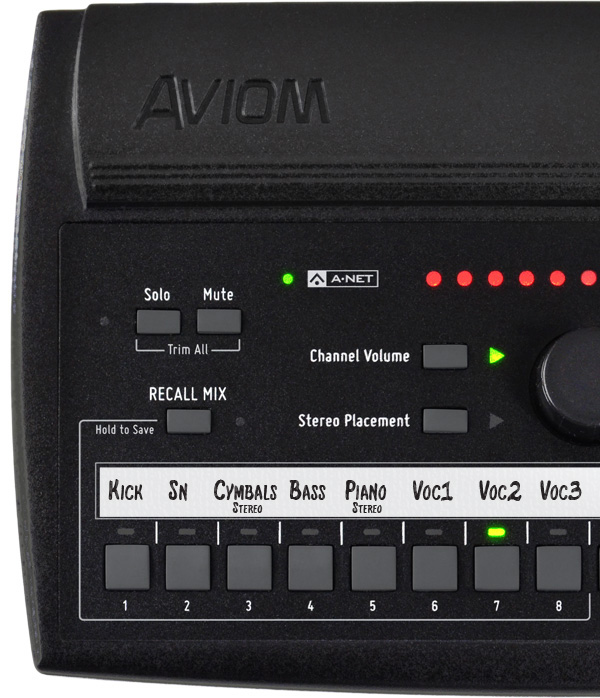

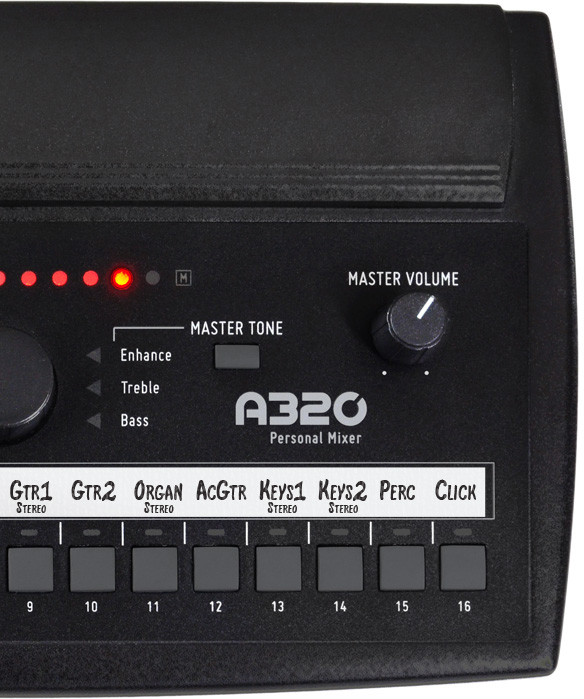

The A320 gives a musician their own monitor mix without asking the front-of-house engineer for it. Sixteen mono or stereo sources arrive over A-Net and are handled by a 32-channel mix engine, and the player sets their own balance from the panel rather than calling changes across the stage.

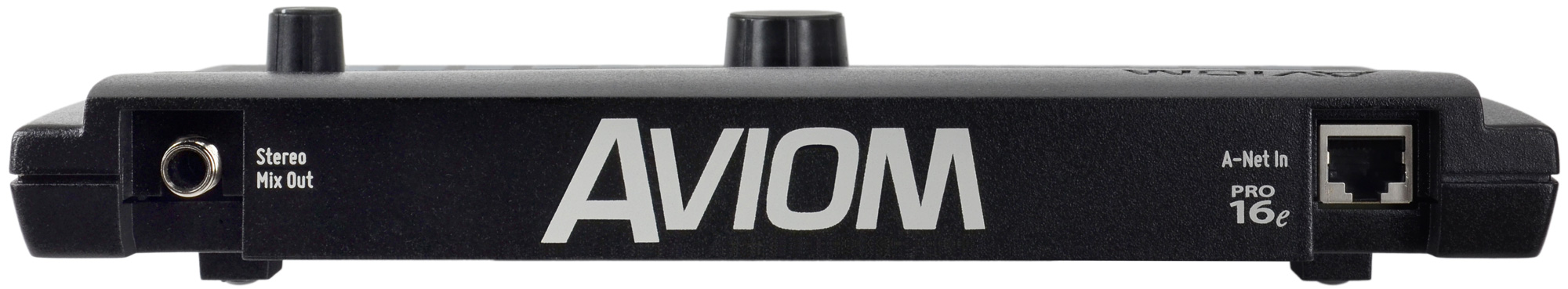

One RJ45 A-Net input carries both the audio and the 24 VDC that powers the unit, so a single Cat-5 run from an A-Net distributor is the entire installation. Conversion is 24-bit at 44.1 or 48 kHz with latency of 0.880 msec and THD+N under 0.003%. The 1/4 inch TRS output switches between headphone and line level and drives 275 mW per side into 50 ohms. The unit is 10.26 x 6.14 x 1.91 inches and 1.3 lb, with an optional MT-1a mic stand mount.

Mix Engine	16 mono or stereo sources, 32-channel mix engine
A-Net	1 A-Net In, RJ45; supports Pro16 (16 channel) and Pro16e (32 channel)
Output	1/4 in TRS stereo, headphone or line level
Headphone Output	275 mW per side into 50 Ohms (both sides driven), 5 Ohm output impedance
Conversion	24-bit, 44.1 / 48 kHz
THD + Noise	Under 0.003%
Signal to Noise	-106 dB
Frequency Response	3 Hz - 22 kHz, +0.2 / -3 dB at 50 Ohms
Latency	0.880 msec
Power	24 VDC, 0.5 A over the A-Net cable from an A-Net distributor
Dimensions / Weight	10.26 x 6.14 x 1.91 in; 1.3 lb (0.59 kg)
