Audix AP42BP Dual-Channel Wireless Bodypack System

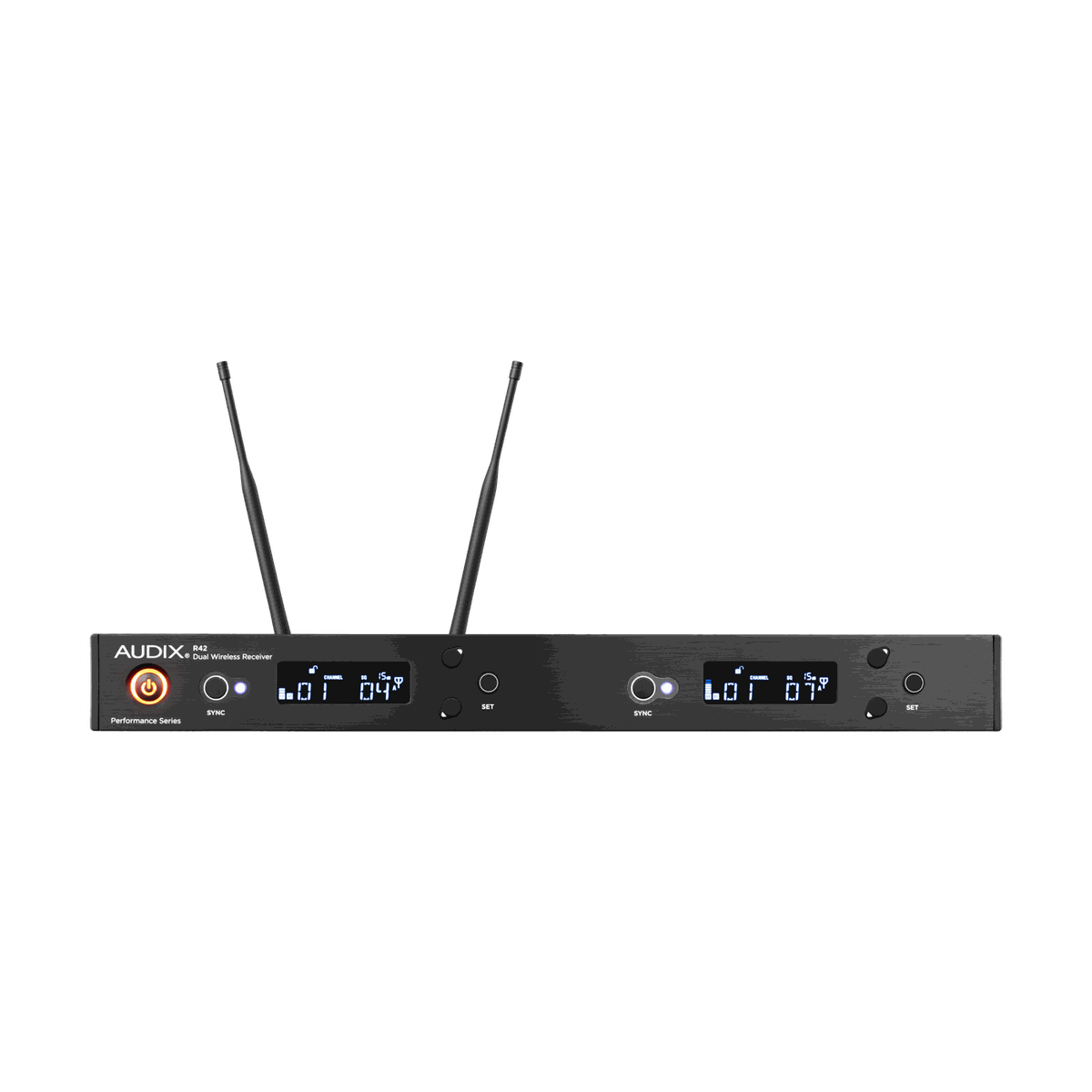

The Audix AP42BP is a Performance Series analog UHF wireless system built around the B60 bodypack transmitter. The AP42 puts two independent channels in one rack space. The R42 is a dual-channel antenna-diversity receiver covering a 32 MHz window with 106 pre-coordinated frequencies, and up to 8 systems can operate together. Auto scan and infrared sync set each channel up in seconds.

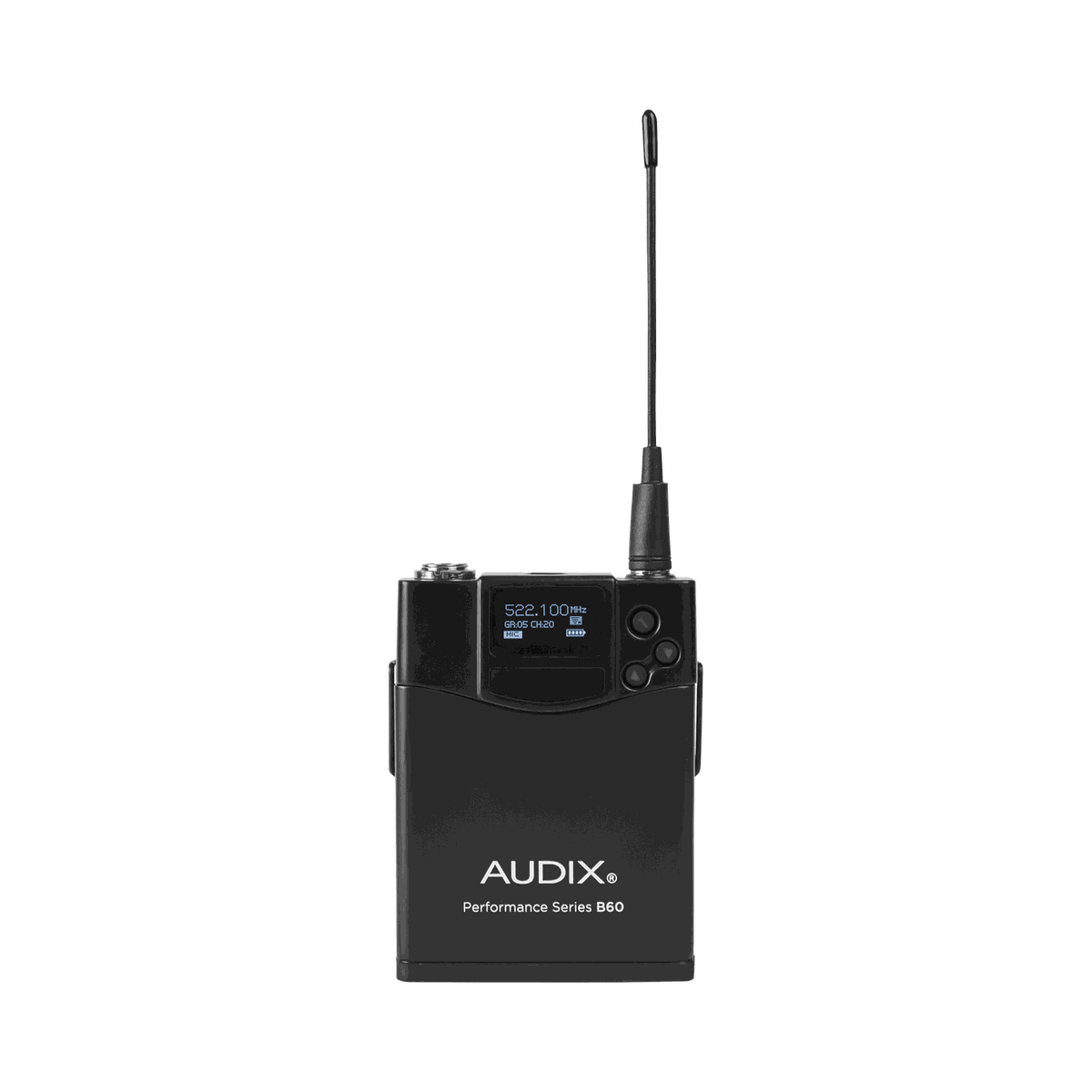

The B60 takes any lavalier, headworn, or instrument microphone in the Audix line on its 3-pin mini-XLR input, and it will take a guitar or bass just as happily. Gain is switchable at 0, -6, -12 and -24 dB so a hot instrument pickup and a quiet lavalier can both sit correctly.

Receiver	R42 dual-channel, single tuner antenna diversity
Frequency Range	A: 522 MHz - 554 MHz / B: 554 MHz - 586 MHz
Switchable Frequencies	106 pre-coordinated frequencies
Simultaneous Systems	Up to 8
Audio Frequency Response	45 Hz - 18 kHz
Signal-to-Noise Ratio	105 dB at 30 kHz deviation (A-weighted)
Output Connectors	XLR balanced and 1/4 in unbalanced
Transmitter	B60 bodypack, 3-pin mini-XLR input, 10 mW / 30 mW RF
Transmitter Battery	2 x AA, approximately 14 hours
