AtlasIED TSD-RL21 Two Channel Mixer
The AtlasIED TSD-RL21 is a two channel mixer. The versatile AtlasIED TSD-RL21 2x1 mic/line mixer is ideal for applications where paging, public address, and BGM music is required. Both inputs are adjustable by front panel controls with removable knobs, which may be easily replaced by security, covers to prevent tampering. Published frequency response is 20Hz - 20kHz (+/-1dB).

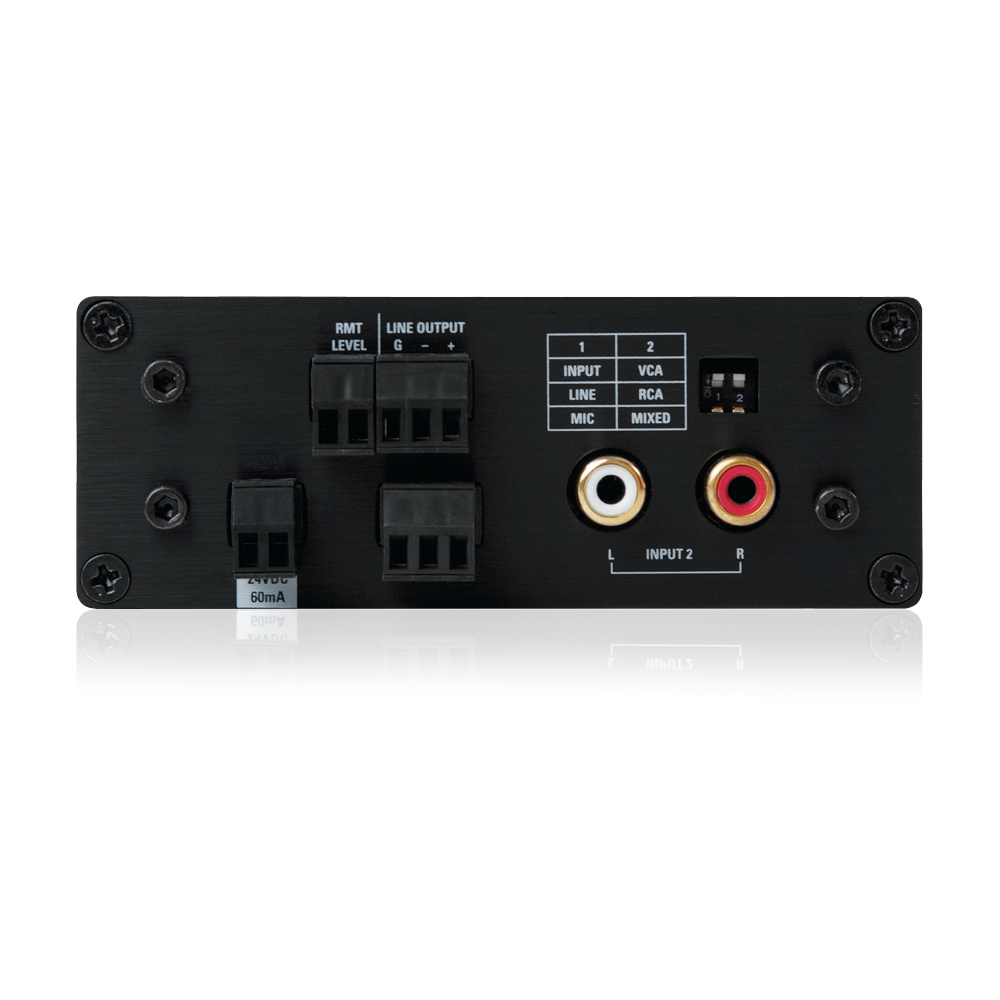

The remote level control feature allows use of the AtlasIED AAVC-10K (or equivalent) decorative wall plate control for convenient remote adjustment of either the entire mix bus or RCA input 2 only (the typical BGM input). The TSD-RL21 is highly efficient and meets Energy Star standards as one 24V DC power supply (available separately) can power multiple Atlas Time Saving Devices. AtlasIED lists one (1) mic/line input; one (1) summing RCA line input; remote level control assignable mix bus or input 2 only; balanced mono line out. It measures 1.5" high, 4" wide, and 2.5" deep. It carries a manufacturer warranty of 36 months from date of purchase.
| Part Number | TSD-RL21 |
|---|---|
| Unbalanced Input Impedance | 10KΩ |
| THD | .06% & 1kHz |
| Input Level | 316mV (-10dBV) |
| Balanced Input Impedance | 1.2KΩ Balanced, 600Ω Unbalanced |
| Line Input Level | 1V (0dBV) Balanced 2V (+6dBV) Balanced Output |
| Mic Input Level | 46dB Gain 10mV (-40dBV) Balanced |
| Balanced Line Output Impedance | 300Ω Balanced, 150Ω Unbalanced |
| Line Output Level | 1V (0dBV) In |
| Frequency Response | 20Hz - 20kHz (+/-1dB) |
| Signal to Noise Ratio Line to Line | 85dBV |
| Signal to Noise Ratio Mic to Line | 70dBV |
| 24VDC Power Requirements | 60mA |
| Height | 1.5" (3.81 cm) |
| Width | 4" (10.16 cm) |
| Depth | 2.5" (6.35 cm) |
| Weight | 6oz., .165kg |
| Voltage Compatibility | 24V |
| Warranty Period | 36 months from date of purchase |
