AtlasIED TSD-MIX32RL 3x2 Stereo Line Mixer with Remote Level
The AtlasIED TSD-MIX32RL is a 3x2 stereo line mixer with remote level. The AtlasIED TSD-MIX32RL is a 3x2 stereo line mixer with Remote level control. It is ideal for applications where multiple stereo line sources need to be combined into a preamp utilizing the local or remote Master level control. Published frequency response is 20Hz - 20kHz (±1dB).

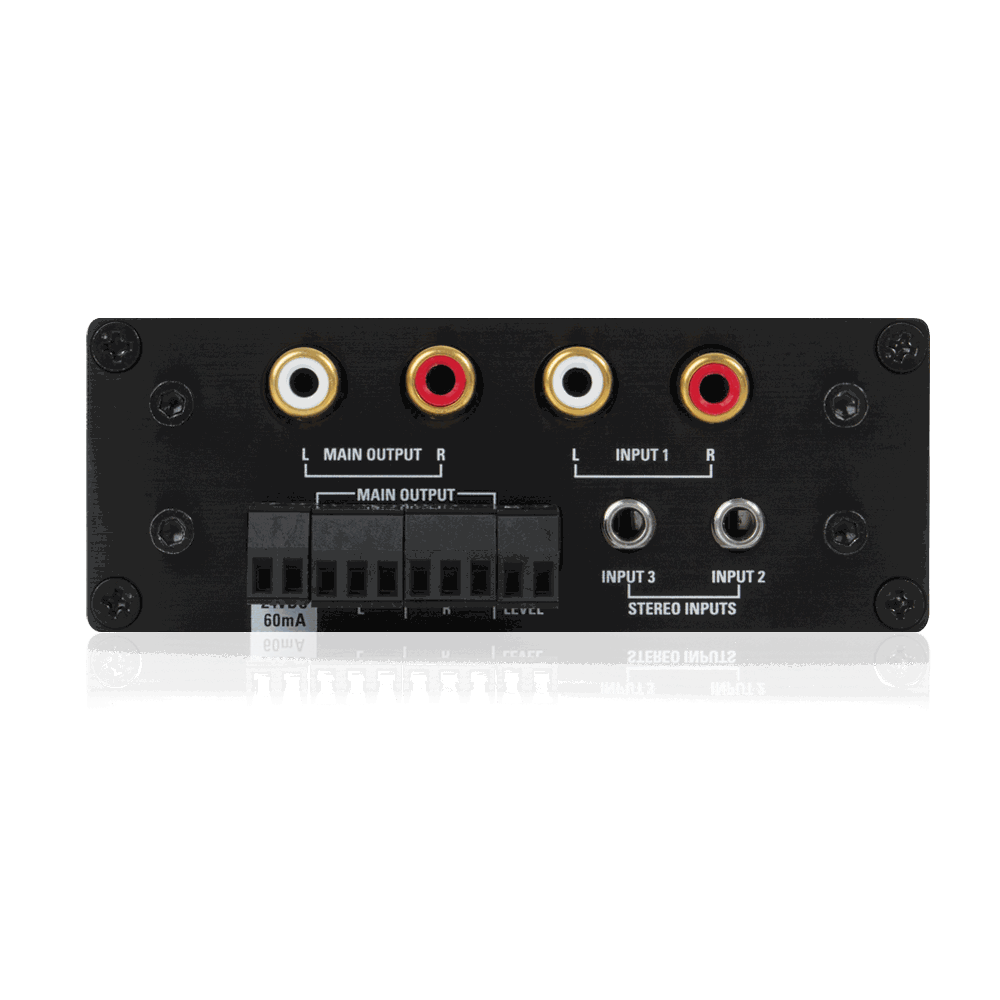

The unit can be easily interfaced with AtlasIED amplifiers. Applications include restaurants, conference rooms, and schools. AtlasIED lists three stereo unbalanced line inputs, one set of RCA and two 3.5mm; balanced line outputs left & right; unbalanced line outputs left & right; base & treble controls ±6dB. It measures 1.5" (39mm) high, 4" (101mm) wide, and 2.75" (70mm) deep. It carries a manufacturer warranty of 36 months from date of purchase.
| Part Number | TSD-MIX32RL |
|---|---|
| Unbalanced Line Input | 300mV (-10dB) |
| Maximum Input Signal | 1.5V (3dBV) |
| THD | .06% @ 1kHz |
| Signal to Noise Ratio | Line to Line: 85dBV |
| Balanced Output Impedance | 300Ω |
| Unbalanced Output Impedance | 150Ω |
| Power Consumption | 60mA |
| Power Consumption | 1.4W |
| Maximum Output Balanced/Unbalanced | 5V (14dBV) |
| Frequency Response | 20Hz - 20kHz (±1dB) |
| Voltage | 24VDC, 60mA |
| Height | 1.5" (39mm) |
| Width | 4" (101mm) |
| Depth | 2.75" (70mm) |
| Voltage Compatibility | 24V |
| Warranty Period | 36 months from date of purchase |
