AtlasIED TSD-MIX42RT 4x2 Mic/Line Mixer with Priority Sense and Remote Control
The AtlasIED TSD-MIX42RT is a 4x2 mic/line mixer with priority sense and remote control. The AtlasIED TSD-MIX42RT 4x2 mic/line mixer is ideal for applications where paging, priority music override and/or remote input selection with level control are required. Use alone or in conjunction with amplifiers in meeting rooms, digital signage, luxury suites, and other applications requiring versatile, stereo or mono multi source mix control. Published frequency response is 20Hz - 20kHz (+/-1dB).

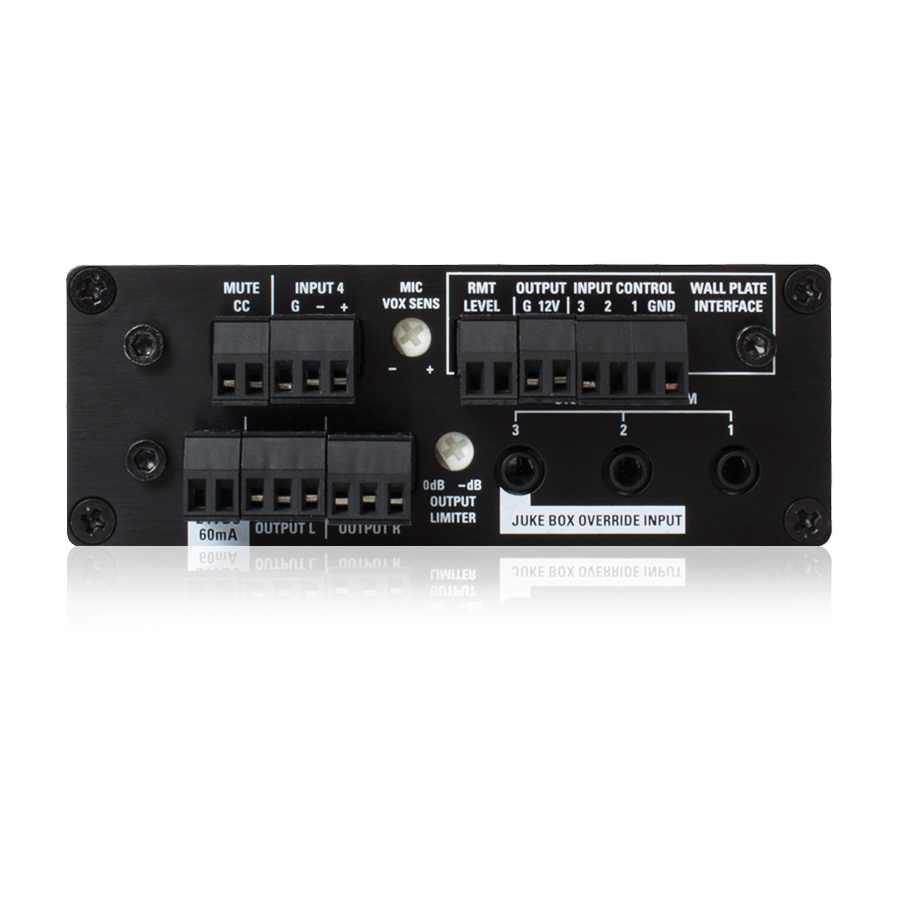

The unit includes one mic/balanced line input via removable Phoenix style connector and three stereo 3.5mm inputs. Switchable phantom power is provided for the mic input to facilitate condenser microphones. AtlasIED lists stereo or mono configurations; one balanced mic/line input; three unbalanced stereo line inputs 3.5mm; 12dB/octave high pass filter @ 125Hz available on the mic input. It measures 1.5" high, 4" wide, and 5.2" deep. It carries a manufacturer warranty of 36 months from date of purchase.
| Part Number | TSD-MIX42RT |
|---|---|
| Input impedance | 1.2KΩ Balanced, 600Ω Unbalanced |
| THD | .06% & 1kHz |
| THD | .06% @ 1kHz |
| Phantom Power | 24VDC Defeatable |
| Low Cut Filter | 125Hz/12dB Defeatable |
| Power Consumption | 60mA |
| Line Input Level | 1V (0dBV) Balanced 2V (+6dBV) Balanced Output |
| Mic Input Level | 46dB Gain 10mV (-40dBV) Balanced |
| Output impedance | 300Ω Balanced, 150Ω Unbalanced |
| Line Output Level | 1V (0dBV) In |
| Frequency Response | 20Hz - 20kHz (+/-1dB) |
| Frequency Response | 20Hz - 20kHz (±1dB) |
| Signal to Noise Ratio Line to Line | 85dBV |
| Signal to Noise Ratio Mic to Line | 78dBV |
| Voltage | 24VDC, 60mA |
| Height | 1.5" (3.81 cm) |
| Width | 4" (10.16 cm) |
| Depth | 5.2" (13.2 cm) |
| Weight | 13oz., .3kg |
| Voltage Compatibility | 24V |
| Warranty Period | 36 months from date of purchase |
