AtlasIED TSD-PA252G 25W x 2 @ 4Ω Two-Channel Power Amplifier

The AtlasIED TSD-PA252G is a 25W x 2 @ 4Ω two-channel power amplifier. The TSD-PA252G is a reliable, cost effective 4Ω stereo amplifier well suited for higher power amplification requirements. Output is 25W per channel at 4Ω or 50W bridge mono at 8Ω. Published frequency response is 20Hz - 20kHz.

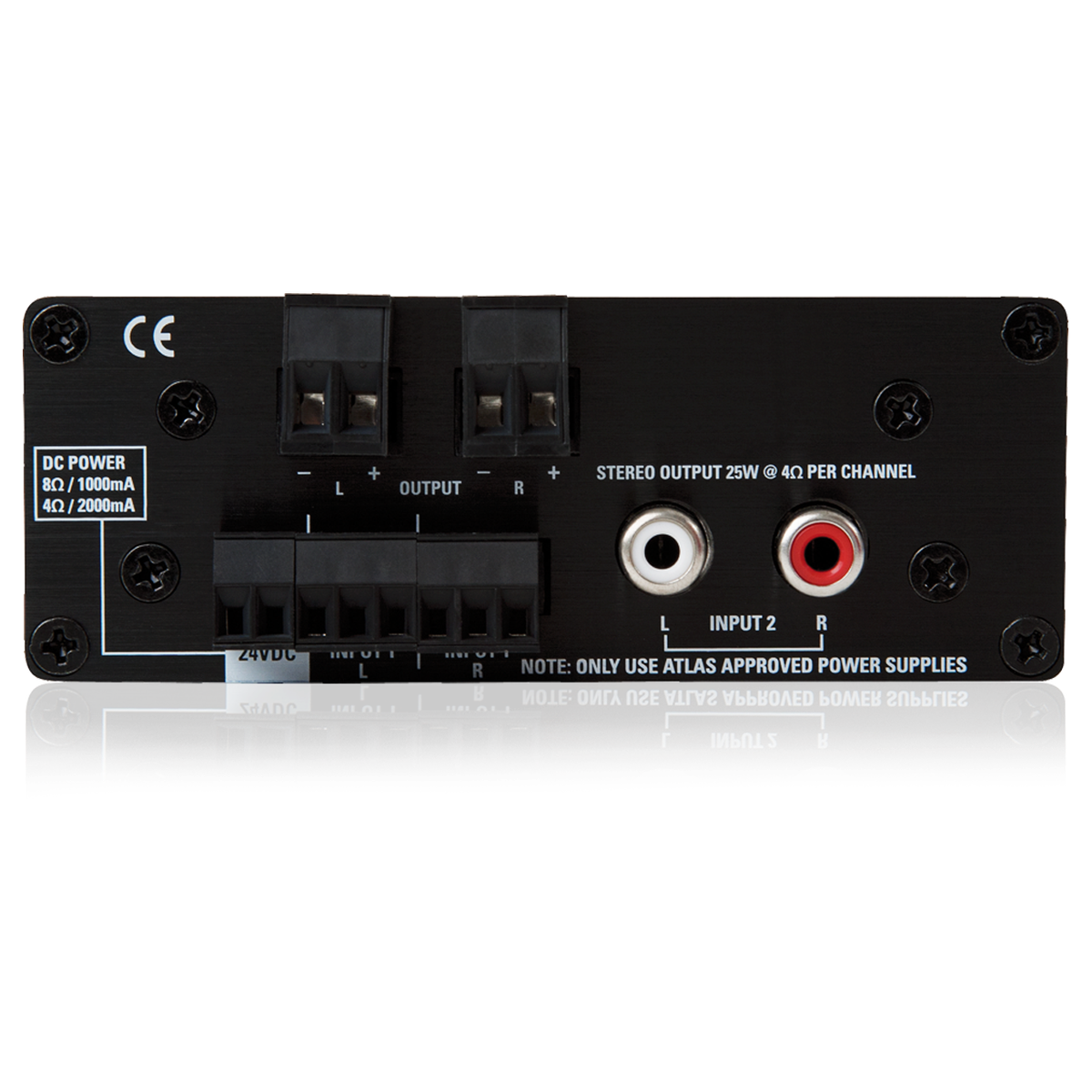

Input is via balanced stereo phoenix style and unbalanced RCA connectors. Front panel gain controls provide adjustment for both left/right or bridged outputs and include removable knobs. AtlasIED lists 25W per channel into 4Ω; two (2) balanced inputs; dual RCA inputs; 50W bridged into 8Ω. It measures 1.5" high, 4" wide, and 5.2" deep. It carries a manufacturer warranty of 36 months from date of purchase.

Part Number	TSD-PA252G
Frequency Response	20Hz - 20kHz
Power Output	25W x 2 CH @ 4Ω, 50W x 1 CH @ 8Ω Bridged
Balanced Input Impedance	10KO Balanced, 5KO Unbalanced
THD	.2% & 1kHz
24VDC Power Requirements	2000mA
Height	1.5" (3.81 cm)
Width	4" (10.16 cm)
Depth	5.2" (13.2 cm)
Voltage Compatibility	24V
Warranty Period	36 months from date of purchase
