AtlasIED TSD-PA20VG 20W Mono 4Ω/25V/70.7V/100V Power Amplifier

The AtlasIED TSD-PA20VG is a 20W mono 4Ω/25V/70.7V/100V power amplifier. The TSD-PA20VG is a cost effective mono amplifier for 4Ω and distributed constant voltage speaker systems. Applications include hallways and classrooms. Published frequency response is 40Hz - 20kHz.

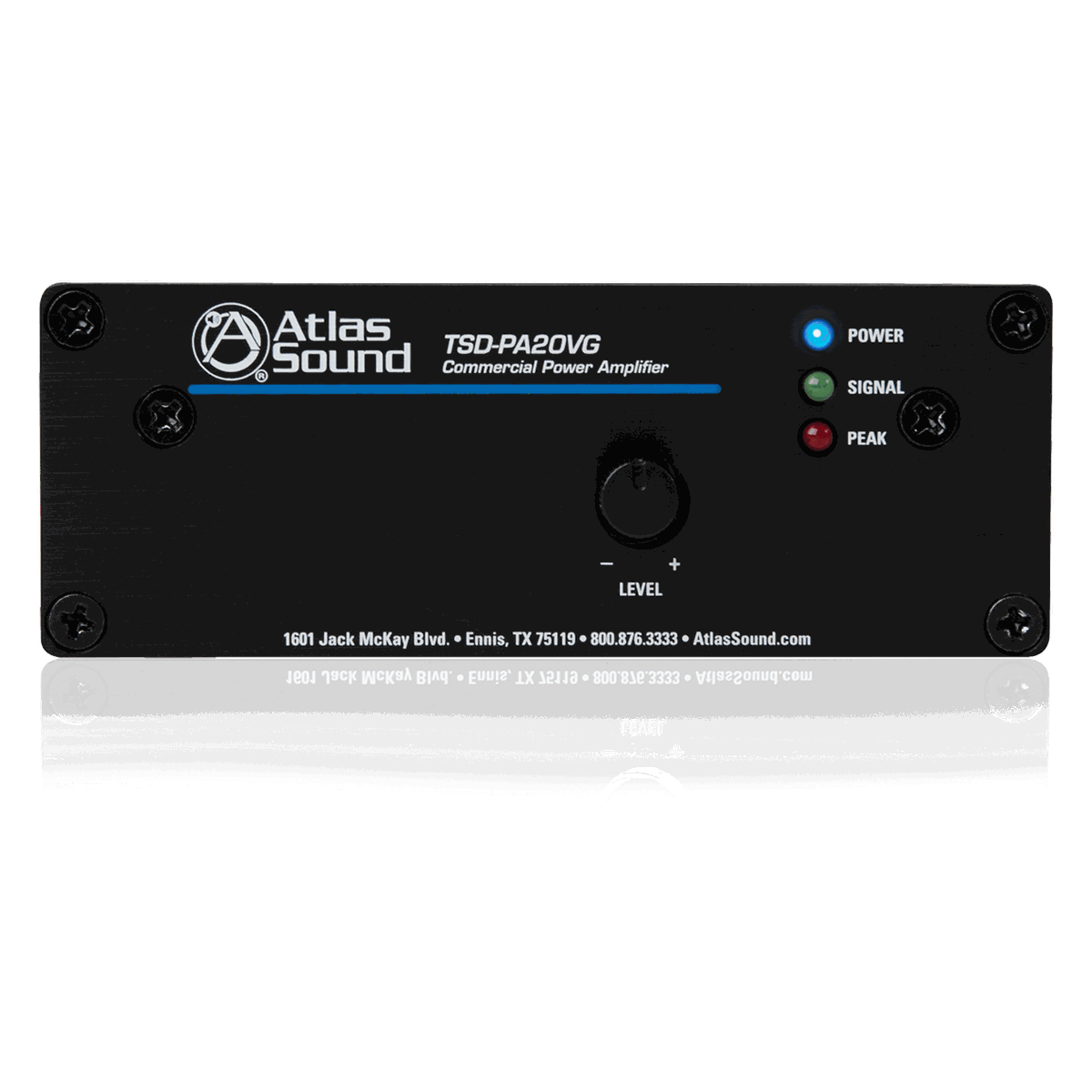

Output is gain controlled from a potentiometer on the front panel with removable knob. Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. AtlasIED lists 4Ω/25V/70.7V/100V output; one (1) balanced input; removable level control with set-it-and-forget-it security cover; input signal and peak indicator LEDs. It measures 1.5" high, 4" wide, and 5.2" deep. It carries a manufacturer warranty of 36 months from date of purchase.

Part Number	TSD-PA20VG
Frequency Response	40Hz - 20kHz
Power Output	20W @ 4Ω, 10W @ 8Ω, 20W @ 25V/70V/100V Loads
Line Input Level	500mV (-6dBV) Balanced
Power Requirement	490mA
Idle Current	50mA
Height	1.5" (3.81 cm)
Width	4" (10.16 cm)
Depth	5.2" (13.2 cm)
Voltage Compatibility	24V
Warranty Period	36 months from date of purchase
