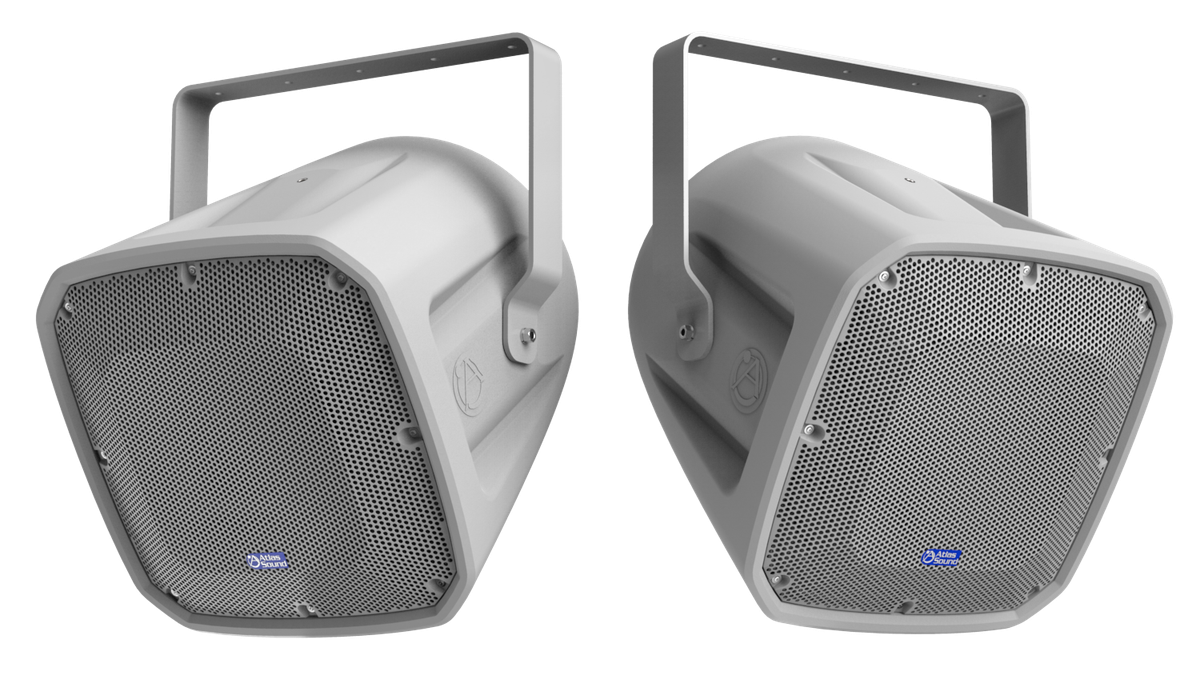

AtlasIED FS12T-BT60 12" 2-Way Multipurpose Nearfield Horn Speaker System 90° Conical

The AtlasIED FS12T-BT60 is a 12" 2-way multipurpose nearfield horn speaker system 90° conical. The FS12T-BT60 is two-way, full-range speaker system engineered for nearfield applications while providing excellent voice and music reproduction. It was designed to withstand exposure to environmental conditions and provide long-lasting reliability.It incorporates a 12" LF driver and 1" HF driver concentrically mounted to a high-directivity waveguide. Published frequency response is 62Hz - 14kHz.

It provides 90° conical coverage and is tuned for optimal source reproduction.The unit is constructed using molded linear low-density polyethylene (LLDPE), creating an incredibly strong yet lightweight enclosure. The unit includes a stainless steel U-bracket and fly-points allowing for easy mounting. AtlasIED lists all-weather construction ensures long-term reliability through varying seasons; 200 watts power handling; constant directivity design offers controlled coverage of 90° conical (2kHz octave band); driver compliment includes 12" cast frame woofer with a concentrically mounted 1" HF driver. It measures 19.56" high, 18.5" wide, and 18.5" deep. It is finished in pantone 423 C - RAL 7045 and carries a manufacturer warranty of 60 months from date of purchase.

Part NumberFS12T-BT60
Power Taps200, 100, 50, 25 Watts & 8Ω bypass
Sensitivity93.5dB SPL
Frequency Response62Hz - 14kHz
Height19.56" (49.78 cm)
Driver Type1" HF and 12" LF
Depth18.5" (46.9 cm)
Dispersion90° Conical
EnvironmentIP45
Max SPL116.5dB SPL
Width18.5"(46.9 cm)
Weight39.00 lbs (17.69 kgs)
ColorPantone 423 C - RAL 7045
Warranty Period60 months from date of purchase
