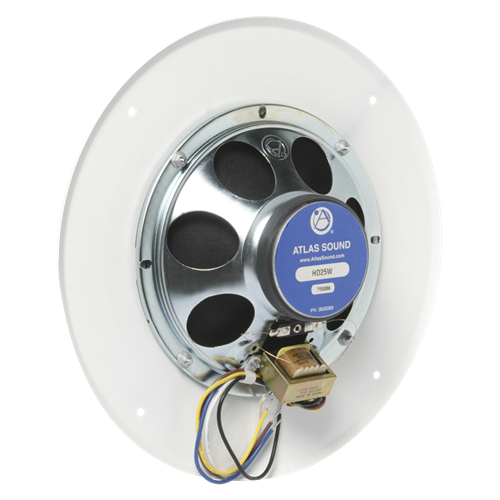

AtlasIED HD25W 8" In-Ceiling Speaker with 5-Watt 25V Transformer and 62-8 Baffle
The AtlasIED HD25W is an 8" in-ceiling speaker with 5-watt 25V transformer and 62-8 baffle. HD25W is a cost-effective 8" dual-cone speaker assembly which delivers wide frequency response for general purpose voice and music reproduction.Unit is shipped complete with grille and 25V transformer factory wired to reduce field installation time and expense. HD25W model includes the industry favorite Model 62-8 grille. It runs a treated paper driver over 100Hz - 10kHz.
Model will accept optional protective enclosures and mounting accessories to meet installation and code requirements. AtlasIED lists 10 oz. magnet offers lower frequency response; 25 volt transformer offers .5, 1, 2 and 5 watt taps; baffle is industry standard 62-8 with baked on white epoxy enamel finish; dual cone type driver. It measures 2 7/8" deep and 8" in diameter. It ships at 4.50 lbs and carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | HD25W |
|---|---|
| Speaker Type | Treated Paper |
| Sensitivity | 97dB Peak, 94dB Average |
| Frequency Response | 100Hz - 10kHz |
| Power Taps | .5, 1, 2, & 5 Watts |
| Dispersion | 105° |
| Depth | 2 7/8" (7.3025 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 4.50 lbs (2.04 kgs) |
| Warranty Period | 60 months from date of purchase |
