AtlasIED TSD-HF11 Paging Horn Crossover & Limiter

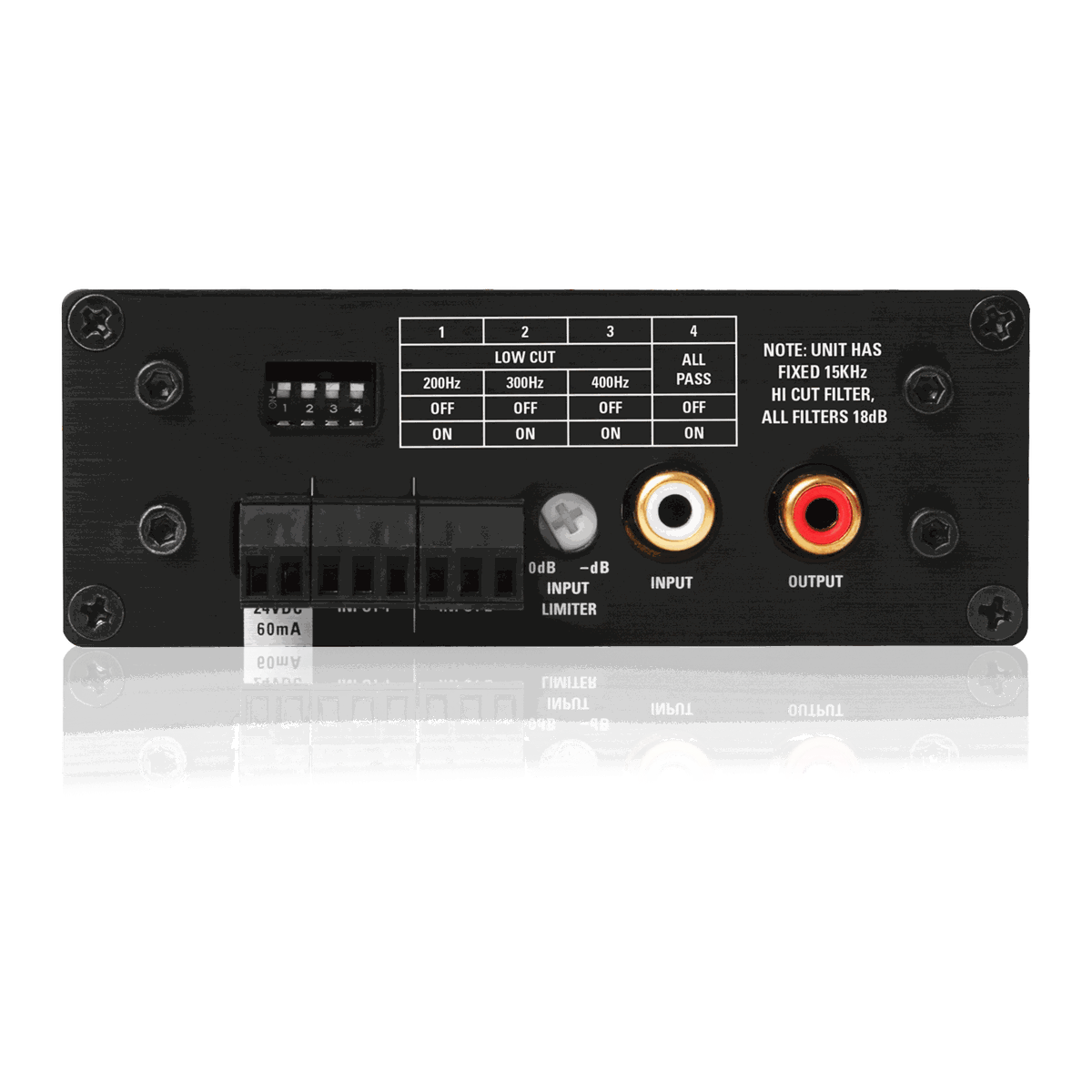

The AtlasIED TSD-HF11 is a paging horn crossover & limiter. The TSD-HF11 is specifically designed use with paging horns in applications where band pass filter and power limiting are required. The TSD-HF11 has a 1 Input and 1 Output configuration and includes Input and Output trim controls, selectable Hi-Pass filter, and a variable limiter to prevent excess signal from entering the amplifier. Published frequency response is 20Hz - 15kHz.

The TSD-HF11 can be used with a variety of paging horns and amplifiers as its full feature set allows individualized customization based on system requirements. Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. AtlasIED lists selectable hi-pass and lo-pass filter; balance and unbalance inputs; input and output trim controls; variable limiter. It measures 1 1/2" (38mm) high, 4" (101mm) wide, and 2 1/2" (63.5mm) deep. It carries a manufacturer warranty of 36 months from date of purchase.
