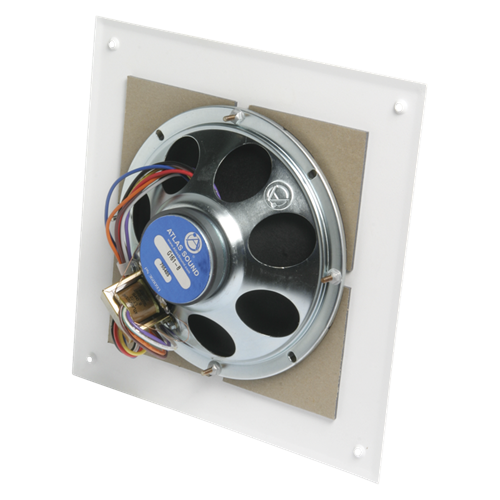

AtlasIED G161-8 8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer and 161-8 Square Baffle

The AtlasIED G161-8 is an 8" in-ceiling speaker with 4-watt 25V/70V transformer and 161-8 square baffle. Convenient, labor saving assemblies are ideal for use wherever a general-purpose paging and music speaker is required. Quality components are factory wired and shipped complete with dual-cone speaker, dual-voltage transformer and round or square grille.Quality speaker package for ceiling or wall installation include speaker with 5 oz. It runs a treated paper driver over 100Hz - 10kHz.

Magnet and dual-voltage transformer. Included grille is square with attractive white epoxy finish. AtlasIED lists 4 watt, dual voltage 25/70 volt transformer; 8" speaker with wizzer cone and 5oz. magnet; factory-assembled loudspeaker packages reduce installation time and expense; packaged in individual boxes that include both hardware bag and installation instructions. It measures 2 5/8" deep and 8" in diameter. It ships at 4.67 lbs and carries a manufacturer warranty of 60 months from date of purchase.

Part NumberG161-8
Frequency Response100Hz - 10kHz
Sensitivity96dB
Power Taps.5, 1, 2, & 4 Watts
Speaker TypeTreated Paper
Dispersion105°
Depth2 5/8" (6.6675 cm)
Diameter8" (20.32 cm)
Shipping Weight4.67 lbs (2.12 kgs)
Warranty Period60 months from date of purchase
