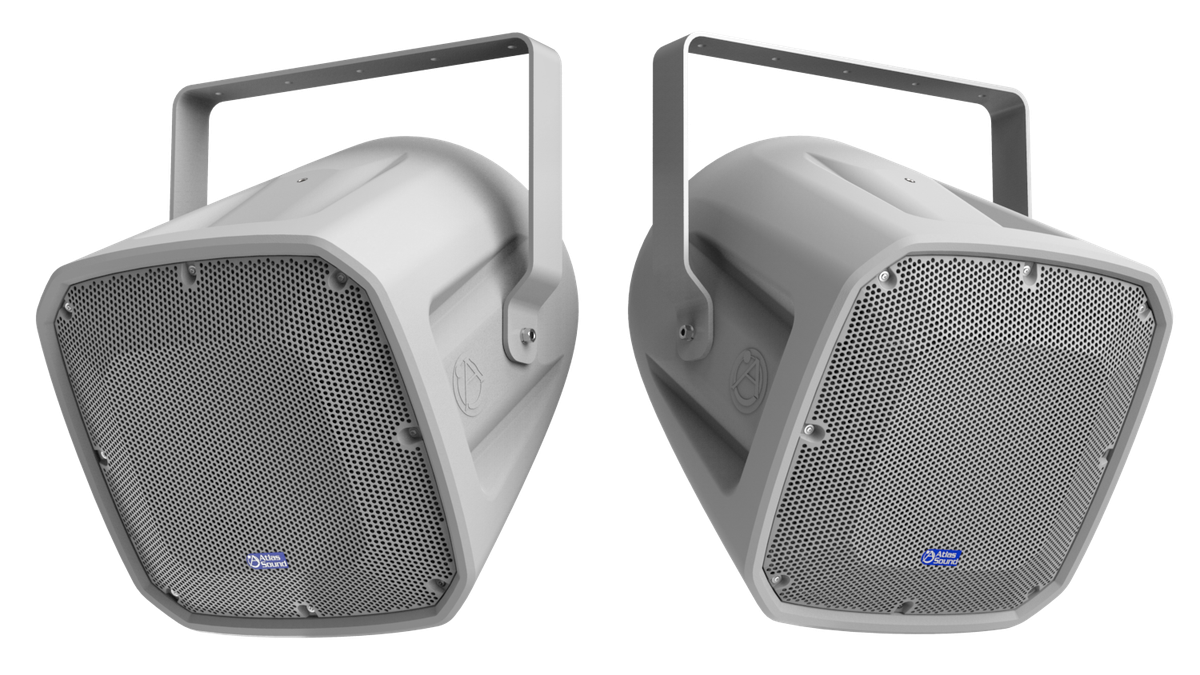

AtlasIED FS12T-SUB 12" Multipurpose Low Frequency Horn Speaker System

The AtlasIED FS12T-SUB is a 12" multipurpose low frequency horn speaker system. The FS12T-SUB is a low-frequency speaker system engineered to provide extended bass response in applications requiring weather resistance. It was designed to withstand exposure to environmental conditions and provide long-lasting reliability. Published frequency response is 47.5Hz - 130Hz.

It incorporates a 12" LF driver and tuned for optimal source reproduction. The unit is constructed using molded linear low-density polyethylene (LLDPE), creating an incredibly strong yet lightweight enclosure. AtlasIED lists all-weather construction ensures long-term reliability through varying seasons; 400 watts power handling; easy, weather resistant connection via a convenient recessed terminal block located on the back of the loudspeaker; includes a built-in, high efficiency 400 watt 70.7V transformer. It measures 19.56" high, 18.5" wide, and 18.5" deep. It is finished in pantone 423 C - RAL 7045 and carries a manufacturer warranty of 60 months from date of purchase.

Part NumberFS12T-SUB
Power Taps400, 200, 100, 50 Watts & 4Ω bypass
Sensitivity98dB SPL
Frequency Response47.5Hz - 130Hz
Driver Type12" LF
EnvironmentIP45
Max SPL124dB SPL
Height19.56" (49.78 cm)
Depth18.5" (46.9 cm)
Width18.5"(46.9 cm)
Weight41.00 lbs (18.6 kgs)
ColorPantone 423 C - RAL 7045
Warranty Period60 months from date of purchase
