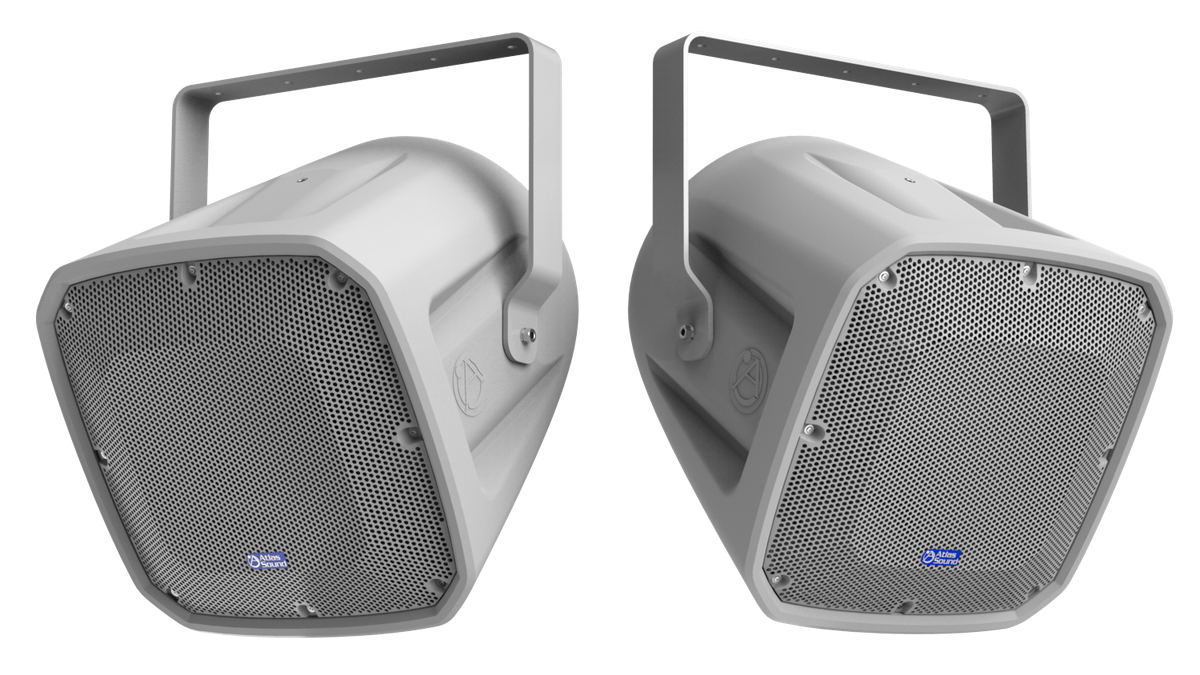

AtlasIED FS12T-94 12" 2-Way Multipurpose Horn Speaker System 90° x 40°

The AtlasIED FS12T-94 is a 12" 2-way multipurpose horn speaker system 90° x 40°. The FS12T-94 is two-way, full-range speaker system engineered to provide excellent voice and music reproduction in applications requiring weather resistance. It was designed to withstand exposure to environmental conditions and provide long-lasting reliability.It incorporates a 12" LF driver and 1" exit HF compression driver concentrically mounted to a high-directivity waveguide. Published frequency response is 80Hz - 17.6kHz.

It provides 90° x 40° coverage and is tuned for optimal source reproduction.The unit is constructed using molded linear low-density polyethylene (LLDPE), creating an incredibly strong yet lightweight enclosure. The unit includes a stainless steel U-bracket and fly-points allowing for easy mounting. AtlasIED lists all-weather construction ensures long-term reliability through varying seasons; 400 watts power handling; constant directivity design offers controlled coverage of 90° horizontal by 40 ° vertical (2kHz octave band); driver compliment includes 12" cast frame woofer with a concentrically mounted 1" exit compression driver. It measures 19.56" high, 18.5" wide, and 18.5" deep. It is finished in pantone 423 C - RAL 7045 and carries a manufacturer warranty of 60 months from date of purchase.

Part NumberFS12T-94
Power Taps400, 200, 100, 50 Watts & 4Ω bypass
Sensitivity102.5dB SPL
Frequency Response80Hz - 17.6kHz
Height19.56" (49.78 cm)
Driver Type1" HF and 12" LF
Depth18.5" (46.9 cm)
Dispersion90° H x 40° V
EnvironmentIP45
Max SPL128.5dB SPL
Width18.5"(46.9 cm)
Weight48.00 lbs (21.77 kgs)
ColorPantone 423 C - RAL 7045
Warranty Period60 months from date of purchase
