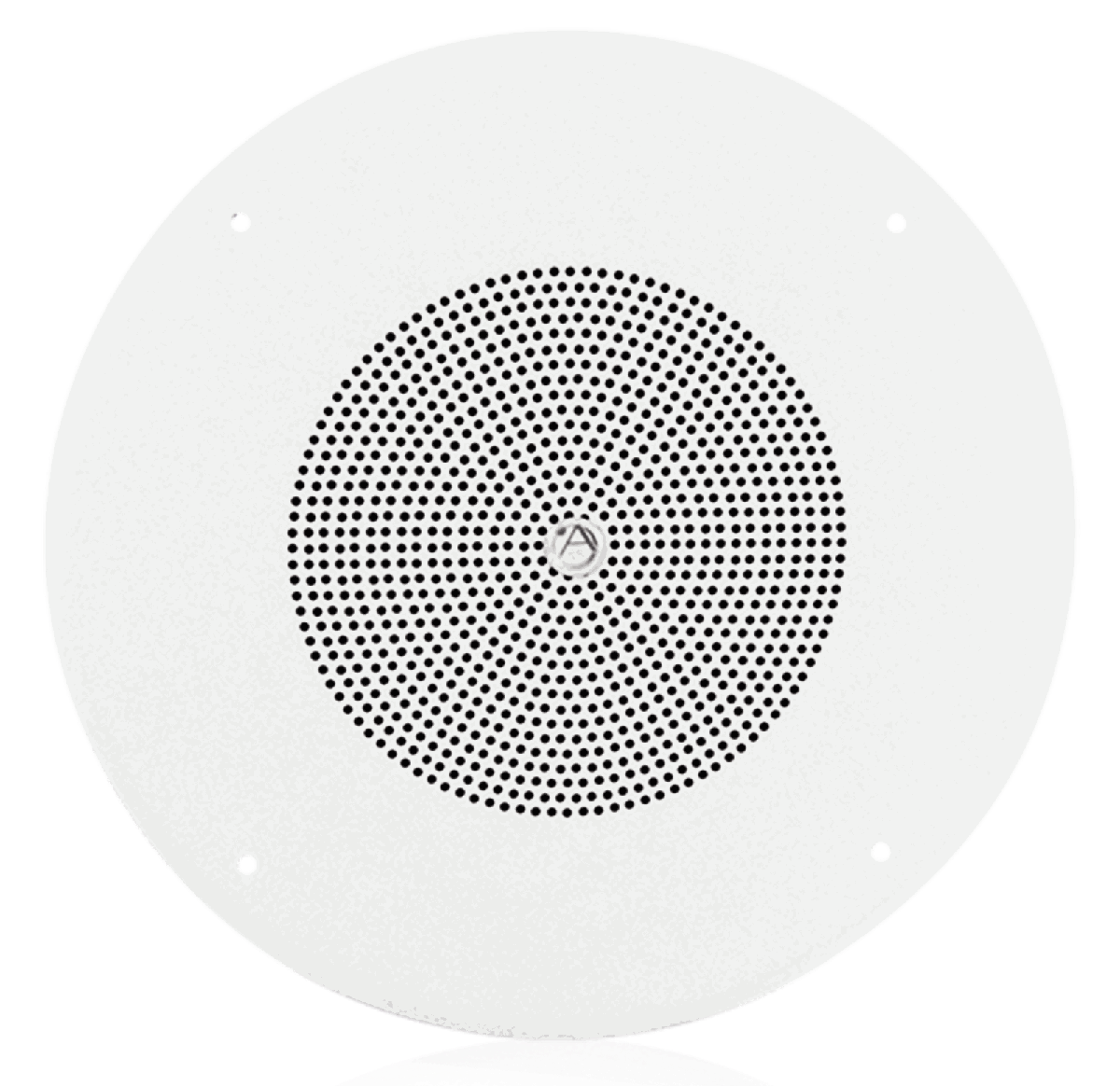

AtlasIED FD72W 8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer and 62-8 Baffle
The AtlasIED FD72W is an 8" in-ceiling speaker with 4-watt 25V/70V transformer and 62-8 baffle. Model FD72W is a cost effective assembly that include high-quality 8" speaker, 25V/70.7V transformer and screw type grill. The FD72W features a conventional cone design speaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance. It runs a treated paper driver over 100Hz - 10kHz.
Speaker / transformer is factory installed on a 62-8 style baffle. AtlasIED lists attractive white finish; easy to order speaker/transformer/grill assembly; mounts to standard tile bridges, enclosures, and plaster rings; suited for any commercial paging or BGM application. It measures 2 5/8" deep and 8" in diameter. It ships at 3.67 lbs and carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | FD72W |
|---|---|
| Speaker Type | Treated Paper |
| Sensitivity | 97dB Peak, 94dB Average |
| Frequency Response | 100Hz - 10kHz |
| Power Taps | .5 , 1, 2, & 4 Watts |
| Dispersion | 105° |
| Depth | 2 5/8" (6.6675 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 3.67 lbs (1.66 kgs) |
| Warranty Period | 60 months from date of purchase |
