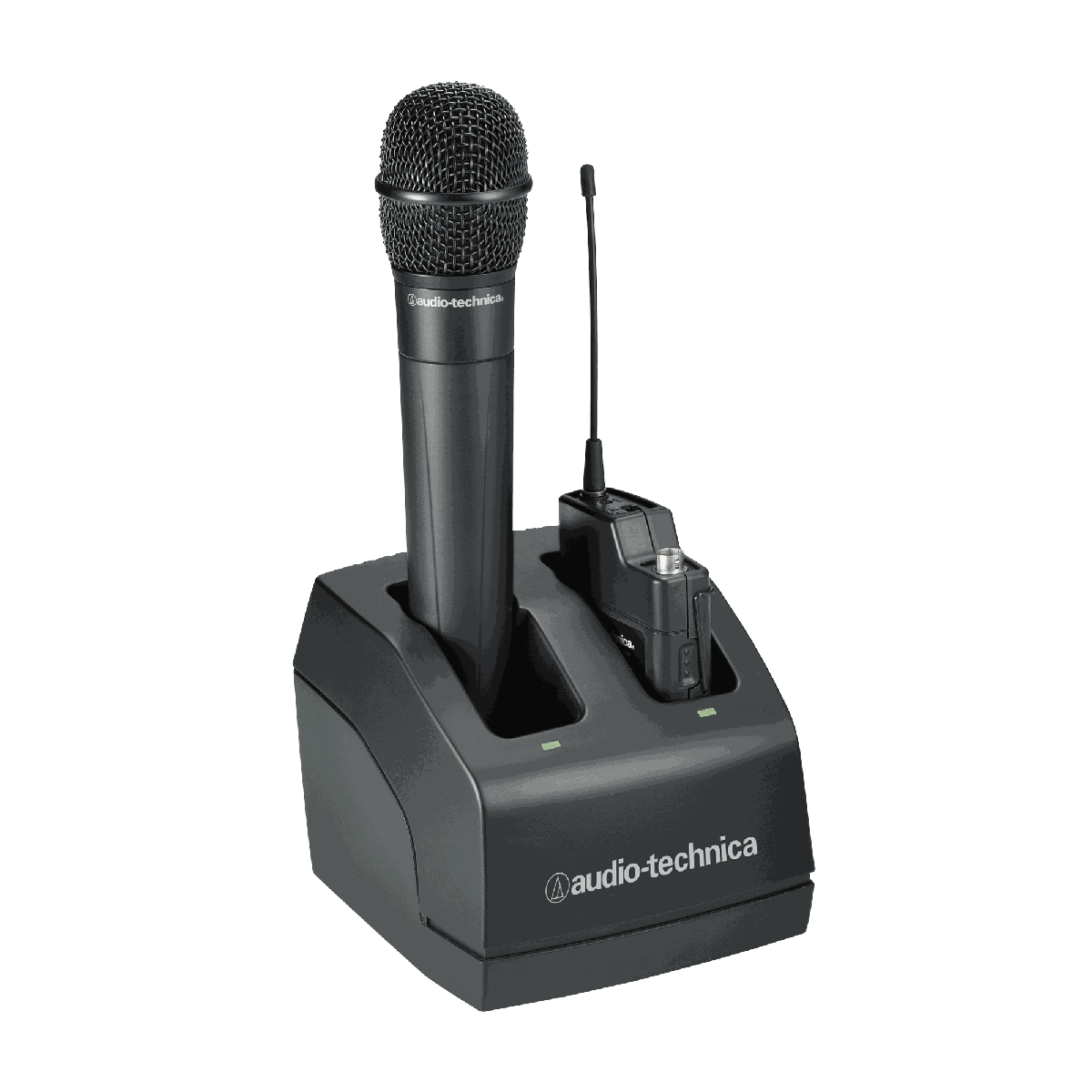

Audio-Technica ATW-CHG2a Two-Bay Recharging Station
The ATW-CHG2a is a two-bay recharging station for Audio-Technica's 2000 Series transmitters, charging NiMH batteries directly inside an ATW-T220c handheld or ATW-T210c UniPak transmitter in any combination, so nothing has to be opened or swapped between shows. It draws power from a standard wall outlet and keeps two channels topped off at once.
A built-in safety feature monitors cell voltage and automatically shuts the unit off if it detects a problem, alkaline (non-rechargeable) batteries, or damaged cells, protecting both the batteries and the charger. Once a battery is full, a maintenance-charging function prevents self-discharge for as long as the transmitter sits in the dock.
| Type | Two-bay recharging station |
|---|---|
| Compatible | ATW-T220c handheld, ATW-T210c UniPak transmitters |
| Input Rating | 12V DC, 230 mA (maximum) |
| Output Rating | 3.2V DC, 230 mA x2 |
| Charging Time | Approx. 10 hours (1900 mAh NiMH) |
| Operating Temperature | 0 to +40°C |
| Dimensions | Approx. 131.0 x 130.0 x 105.0 mm (5.16" x 5.12" x 4.13") |
| Safety | Auto shutoff on alkaline/damaged batteries; maintenance charging |
