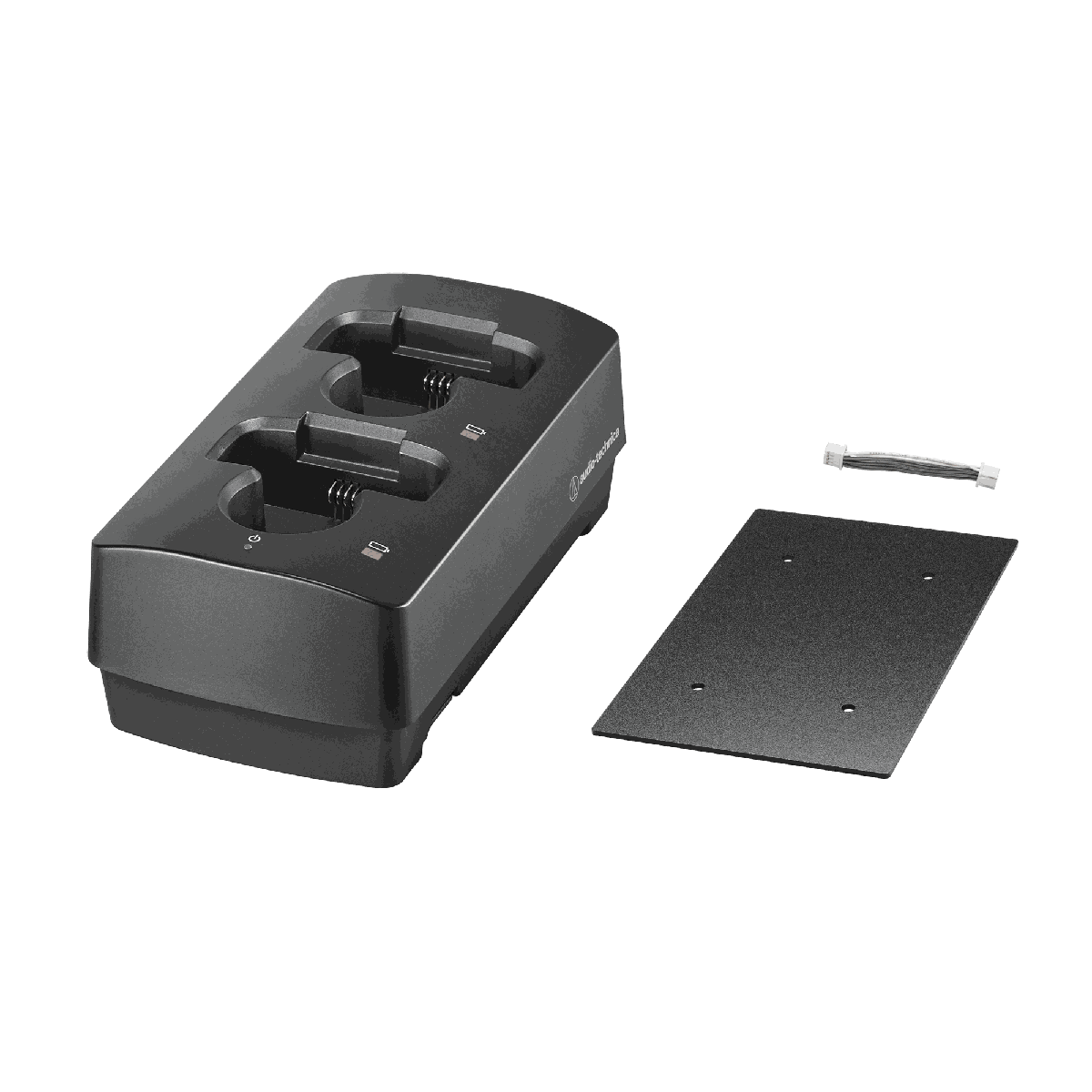

Audio-Technica ATW-CHG3AEXP Two-Bay Charging Station with Link Kit

The ATW-CHG3AEXP bundles Audio-Technica's ATW-CHG3A two-bay charging station with an AT8687 link kit, giving a growing 3000 Series rig the hardware to expand from one charging station to several. The station itself works with 3000 Series handheld and bodypack transmitters, the 3000 Series IEM receiver, and System 20 PRO transmitters, charging NiMH batteries right inside the housing with automatic shutoff if it detects alkaline or damaged cells.

The AT8687 kit includes a link cable, link plate, and four plate screws that physically join this ATW-CHG3A to another ATW-CHG3A or networked ATW-CHG3AN station. With additional AT8687 kits, up to five charging stations can be linked and run from a single AD-SA1230XA AC adapter (sold separately), a common path for a house of worship or theater scaling up its wireless mic locker over time.

IncludedATW-CHG3A two-bay charging station + AT8687 link kit
Compatible3000 Series transmitters, 3000 Series IEM receiver, System 20 PRO transmitters
Power Requirements12V DC, 3.0 A
Charging Output3.6V DC, 500 mA x2
Charging TimeApprox. 6.5 hours (1,900 mAh NiMH battery)
ExpansionUp to 5 stations linked to one AD-SA1230XA AC adapter (sold separately)
Dimensions (charger)185 x 99 x 68.5 mm (7.28" x 3.90" x 2.70")
SafetyAuto shutoff on alkaline/damaged batteries; maintenance charge
