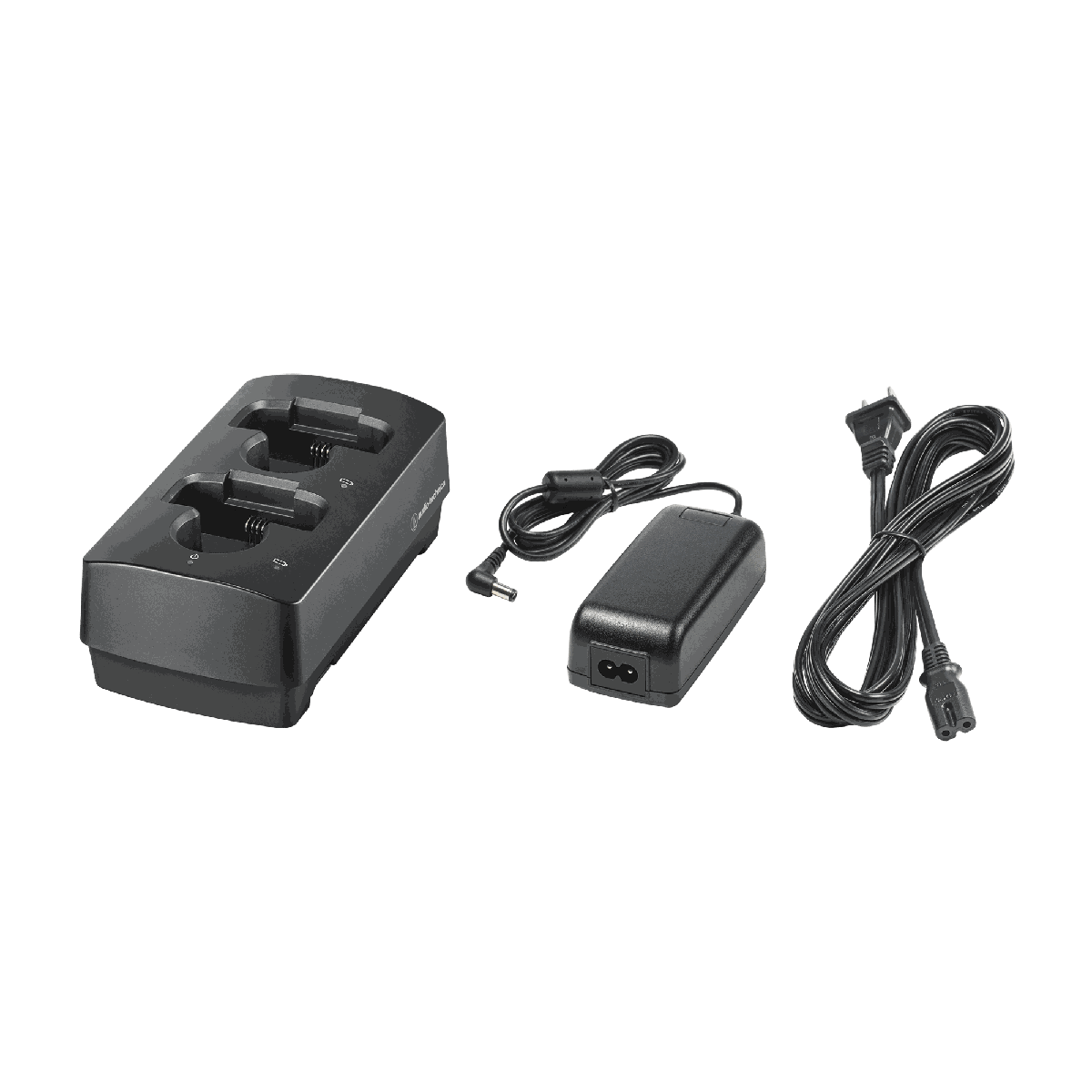

Audio-Technica ATW-CHG3NAAD Networked Two-Bay Charging Station with AC Adapter
The ATW-CHG3NAAD bundles Audio-Technica's ATW-CHG3NA networked two-bay charging station with the AD-SA1230XA AC adapter it needs to run. Like the non-networked ATW-CHG3A, it charges NiMH batteries in place inside 3000 Series handheld and bodypack transmitters, the 3000 Series IEM receiver, and System 20 PRO transmitters, with automatic shutoff if it detects alkaline or damaged batteries.
What sets the NA version apart is the network jack: using AT8687 link kits (sold separately), the ATW-CHG3NA can link with up to four ATW-CHG3A stations, all sharing the single AC adapter in this bundle, while the network connection reports the charge status of every transmitter across all linked stations through the Audio-Technica app or third-party software. That makes it the natural hub for a mic locker with several charging stations to monitor from one place.
| Included | ATW-CHG3NA networked two-bay charging station + AD-SA1230XA AC adapter |
|---|---|
| Compatible | 3000 Series transmitters, 3000 Series IEM receiver, System 20 PRO transmitters |
| Power Requirements | 12V DC, 3.0 A |
| Charging Output | 3.6V DC, 500 mA x2 |
| Charging Time | Approx. 6.5 hours (1,900 mAh NiMH battery) |
| Networking | Ethernet; links up to 5 ATW-CHG3NA/ATW-CHG3A stations on one adapter |
| Dimensions (charger) | 185 x 99 x 68.5 mm (7.28" x 3.90" x 2.70") |
| Safety | Auto shutoff on alkaline/damaged batteries; maintenance charge |
