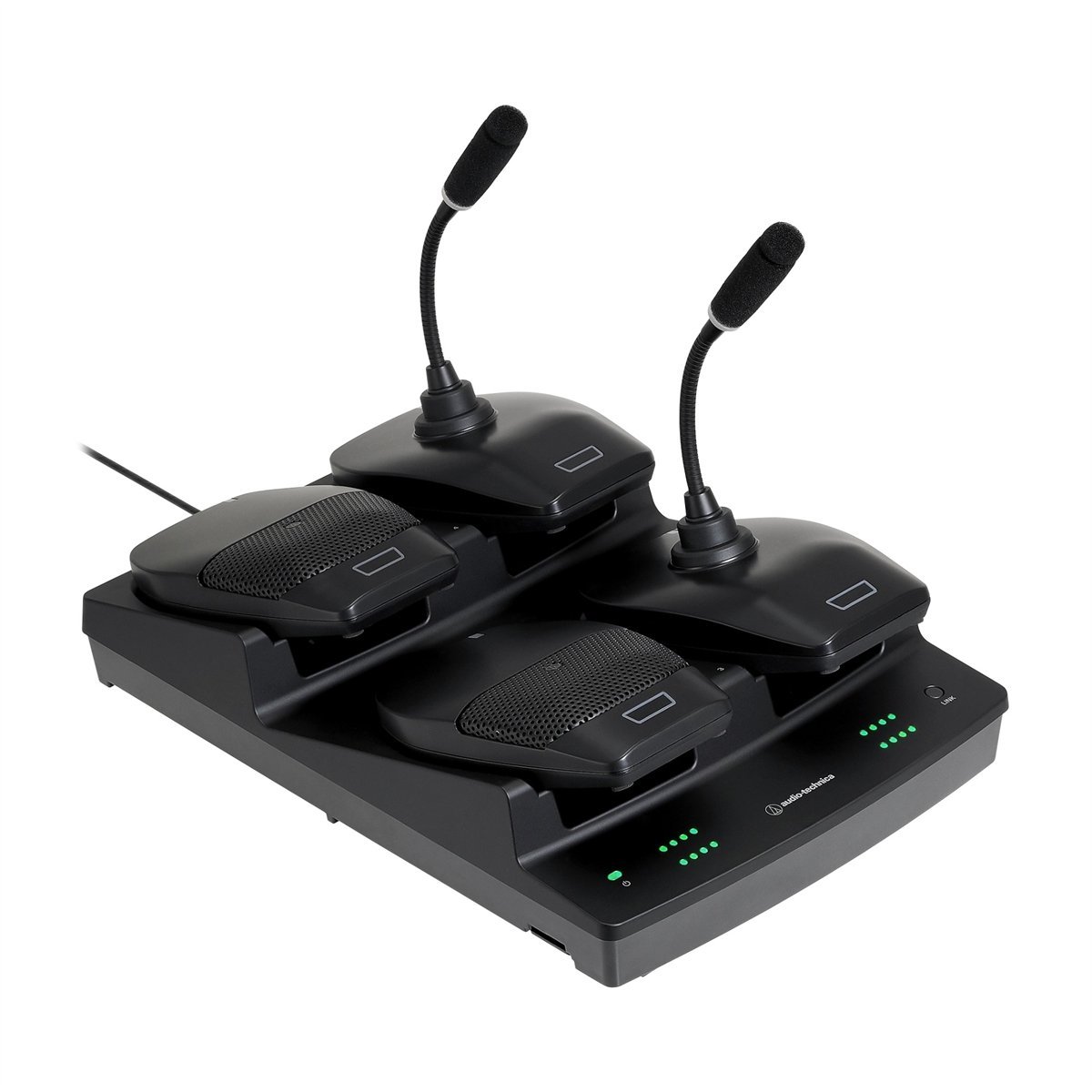

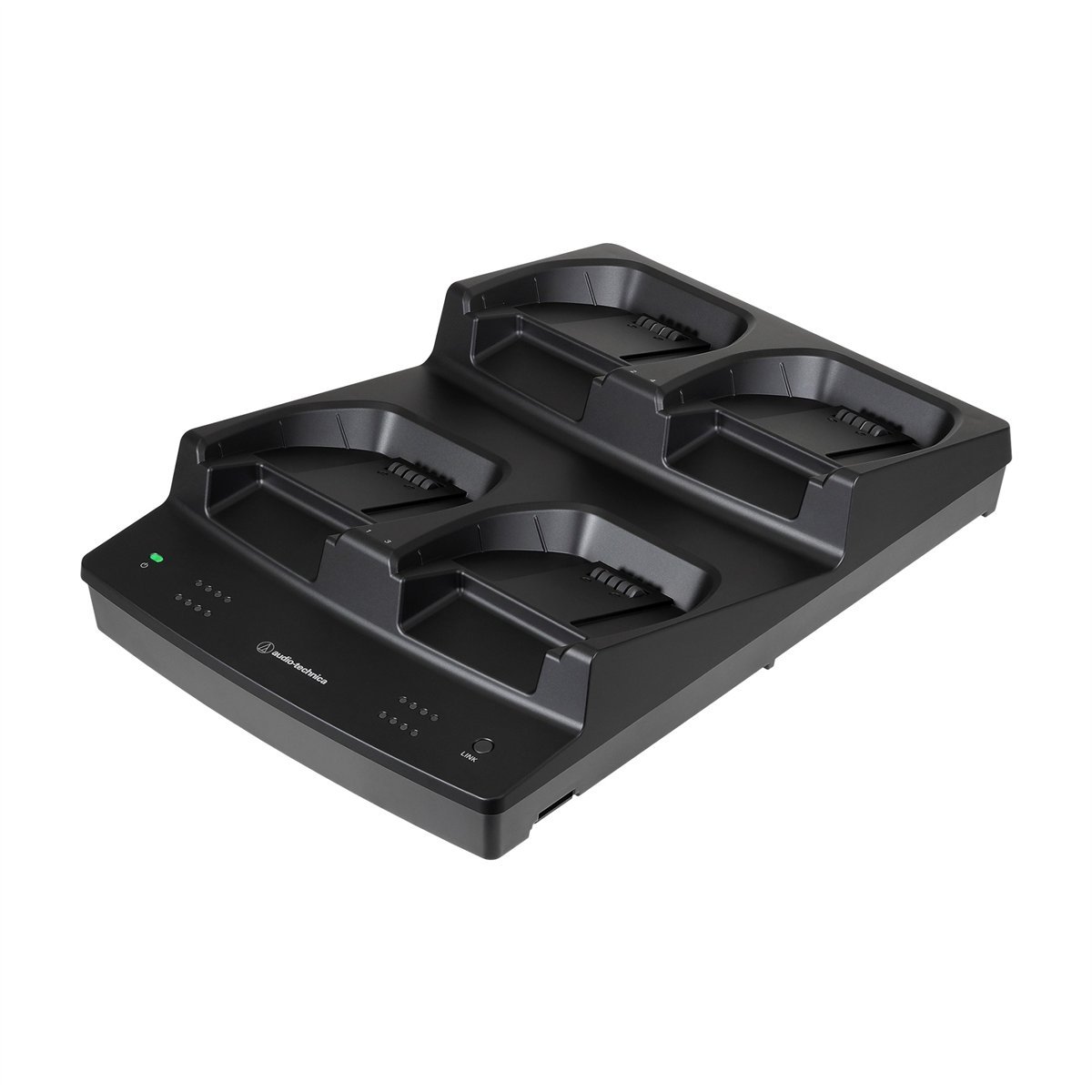

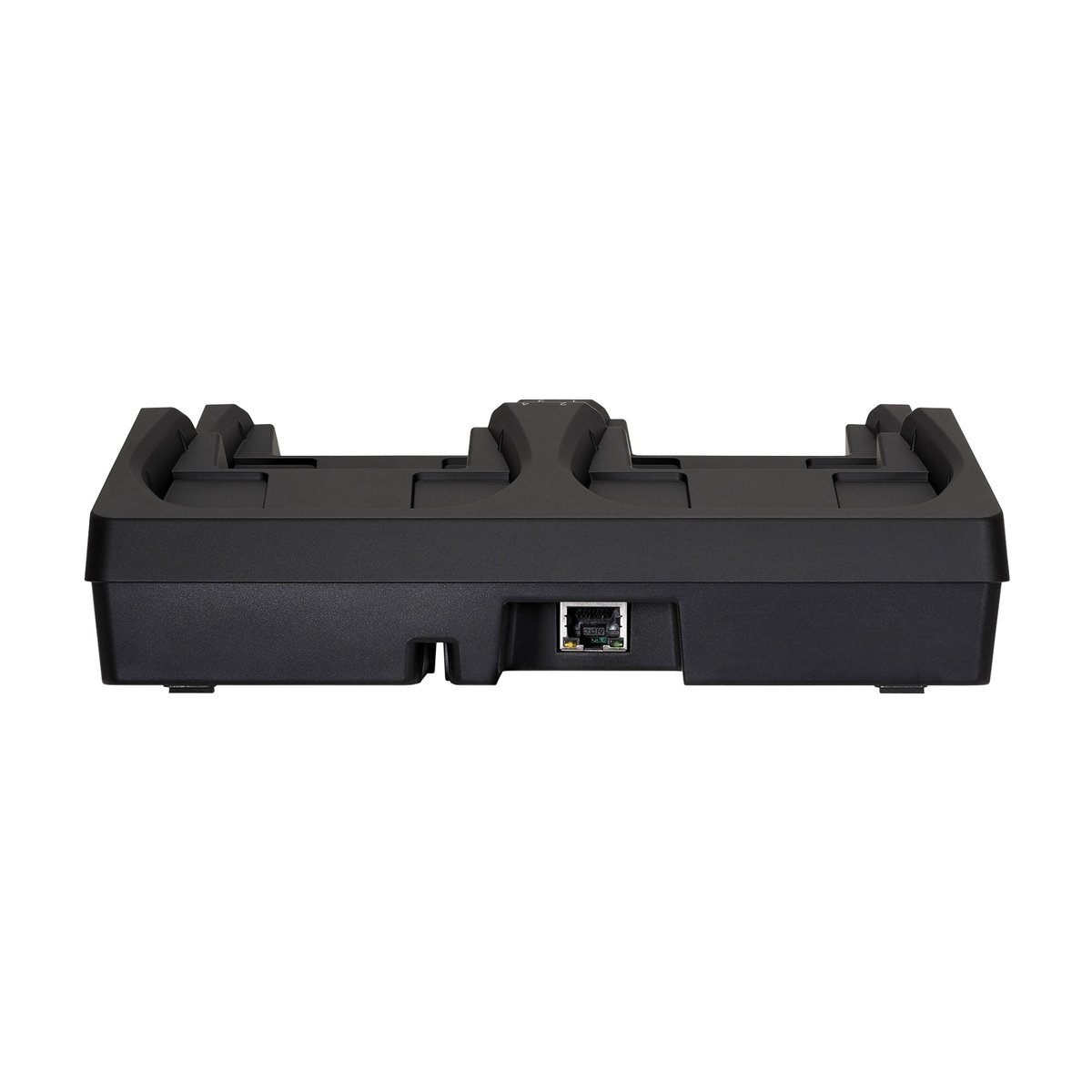

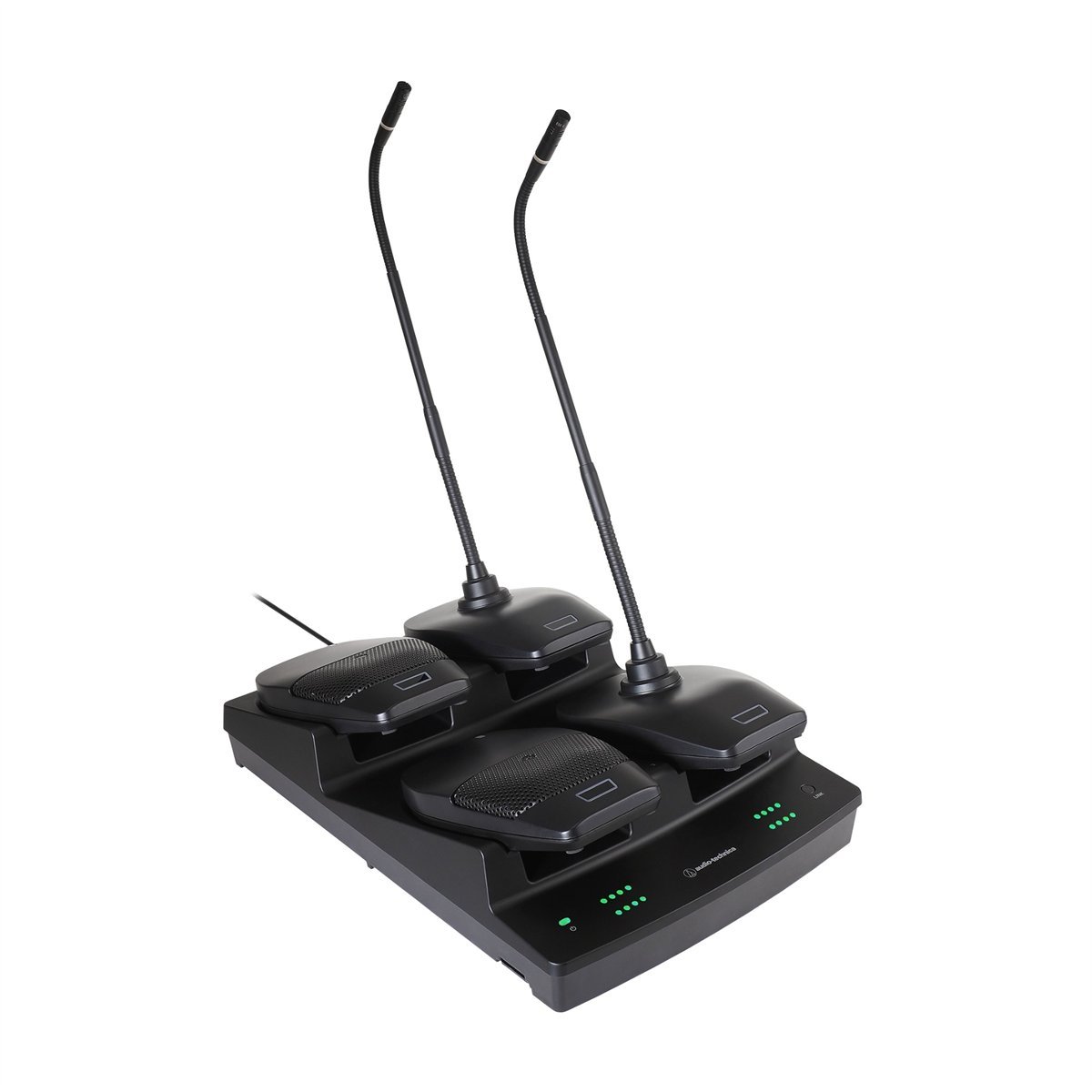

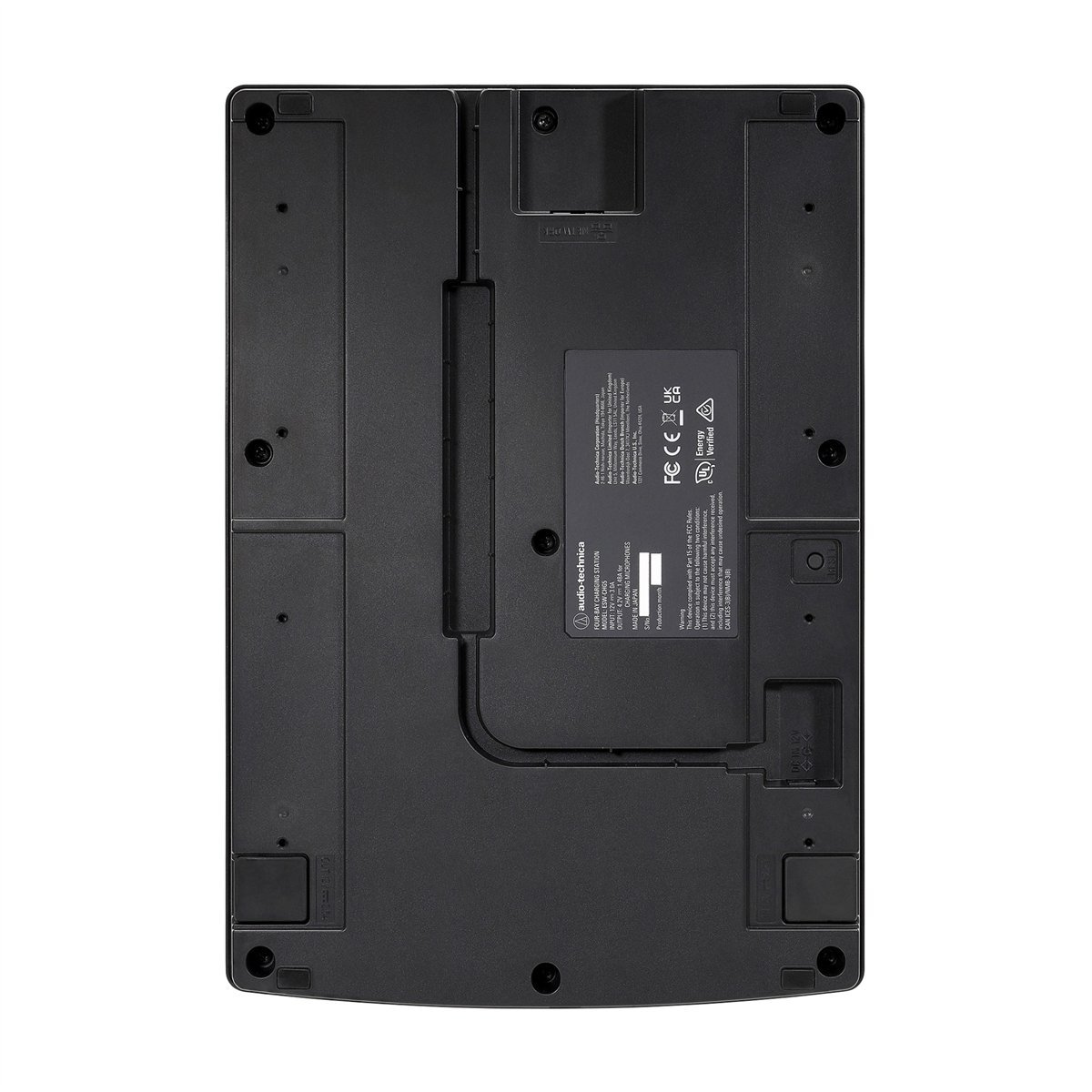

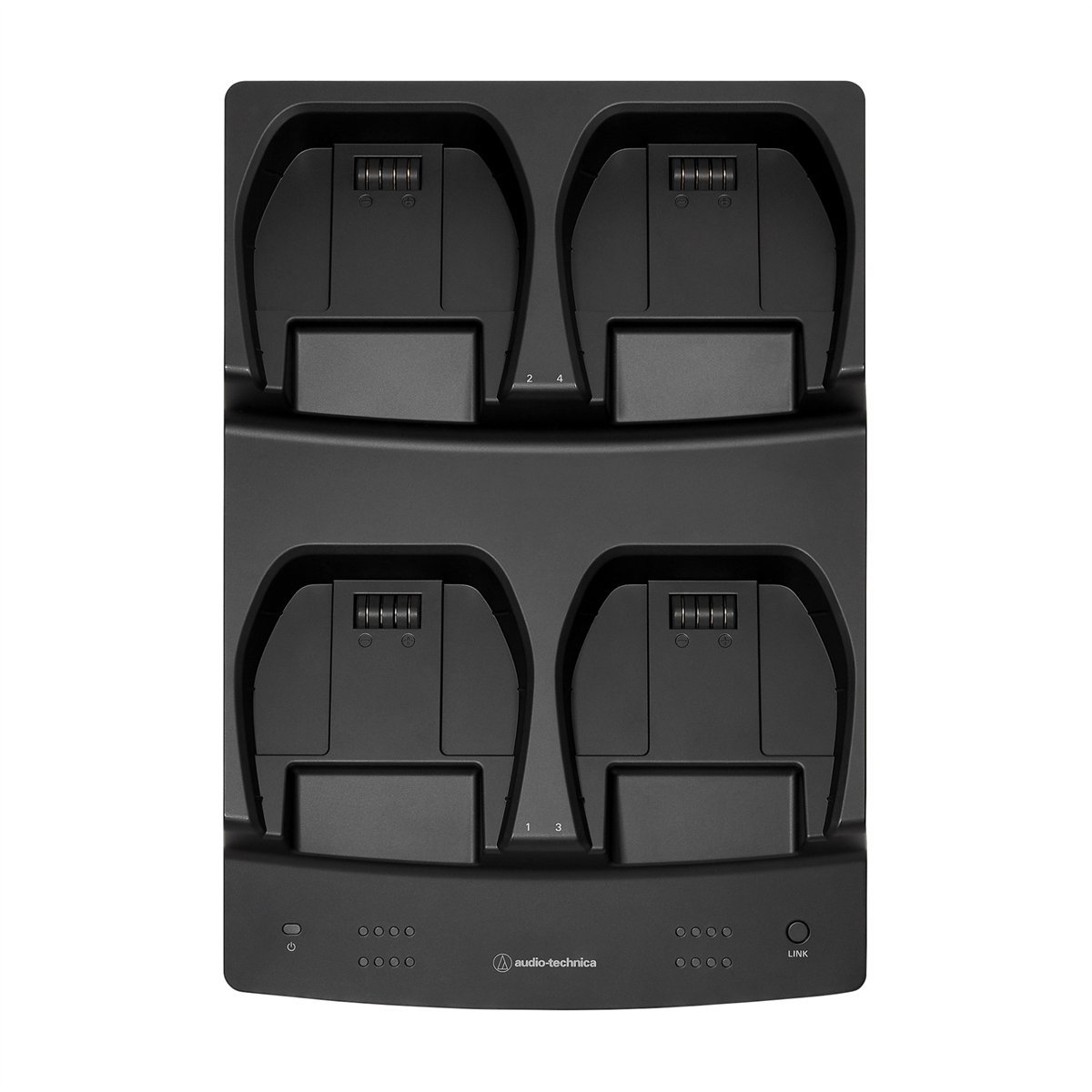

Audio-Technica ESW-CHG5 4-Bay Charging Station
The ESW-CHG5 is a four-bay charging station for any combination of Audio-Technica Engineered Sound Wireless desk stand or boundary transmitters, built to rapidly recharge a room's worth of mics between meetings - in as little as two hours for a full set of four. Indicator lamps on the station and status in Audio-Technica's Wireless Manager software both report charge state, and firmware on docked transmitters can be pushed remotely.
Up to two ESW-CHG5 stations can be linked and powered from a single AC adapter, useful for larger installs with several desk stand or boundary transmitters in rotation. The AD bundle adds the link plate and link cable needed to gang a second station on, so an install that starts with one charging bay can scale without a separate hardware order.
| Type | Four-bay charging station for ESW desk stand/boundary transmitters |
|---|---|
| Power Input | 12V DC, 3.0A |
| Charging Output | 4.2V DC, 1.5A (up to 30.6W with 4 units charging) |
| Recharge Time | As little as 2 hours |
| Linking | Up to 2 stations off one AC adapter |
| Monitoring | Indicator lamps + Audio-Technica Wireless Manager software |
| Firmware | Remote update for all docked transmitters |
