Audio-Technica ESW-CHG4 2-Bay Charging Station

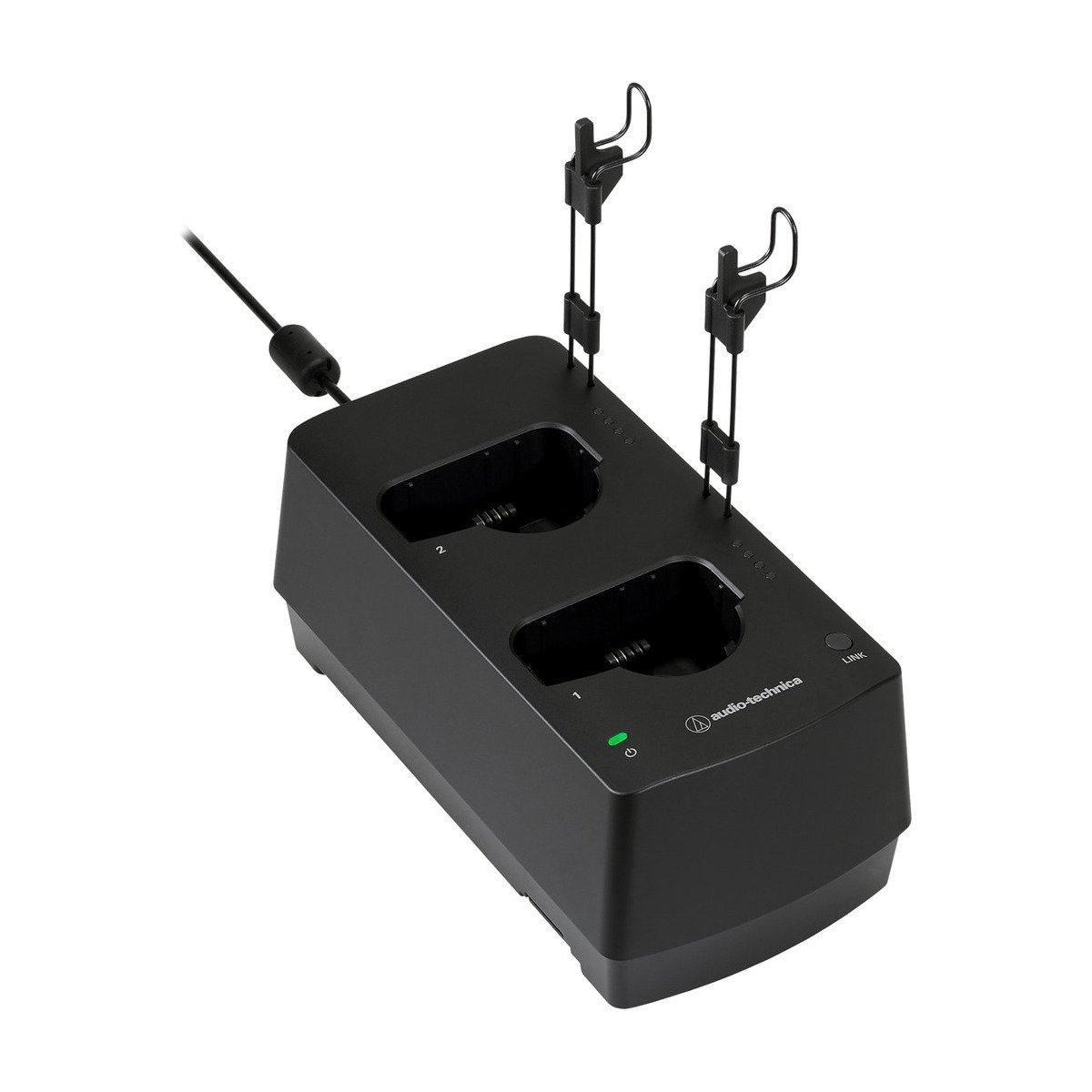

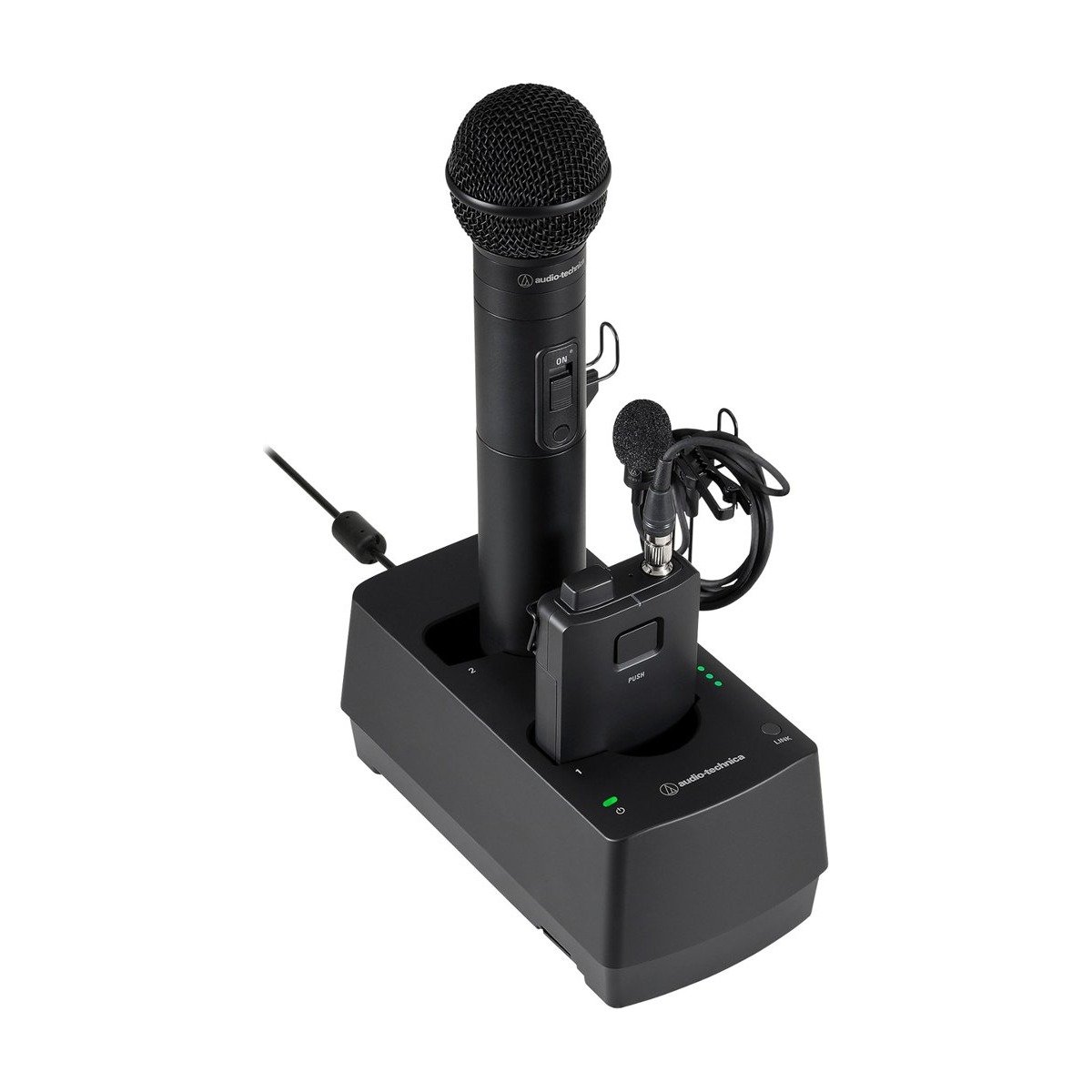

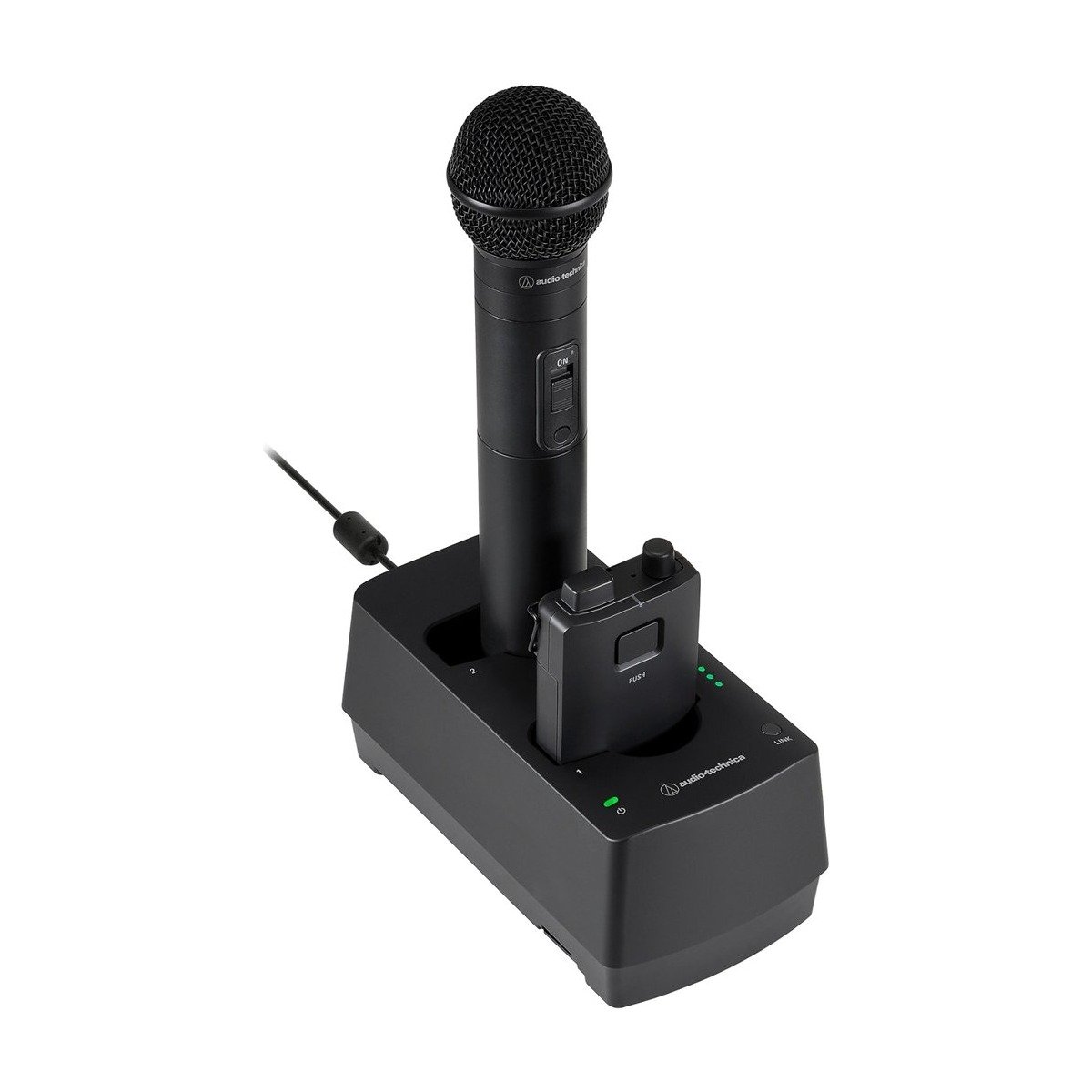

The ESW-CHG4 is a two-bay charging station for any combination of Audio-Technica Engineered Sound Wireless bodypack or handheld transmitters, built to rapidly top off batteries between sessions - roughly 2 hours for an ESW-T4101 bodypack, about 3 hours for an ESW-T4102 handheld. A microphone hanger is built in for tidy lavalier storage between uses, and firmware on docked transmitters can be updated remotely without pulling them off the charger.
Up to four ESW-CHG4 stations can be linked and run from a single AC adapter over Cat5e cable, and charge status reports into Audio-Technica's Wireless Manager software so a tech can check the whole rack from one screen. The AD bundle adds the link plate and link cable needed to gang stations together, so a system that starts with one station can grow without extra hardware runs.
| Type | Two-bay charging station for ESW bodypack/handheld transmitters |
|---|---|
| Power Input | 12V DC, 3.0A |
| Charging Output | 4.2V DC, 1.5A (1-4 units linked) |
| Recharge Time | ~2 hrs (ESW-T4101), ~3 hrs (ESW-T4102) |
| Linking | Up to 4 stations off one AC adapter and Cat5e cable |
| Dimensions | 95 mm W x 180 mm D x 78.5 mm H |
| Weight | 532 g (19 oz) |
| Monitoring | Audio-Technica Wireless Manager software |
