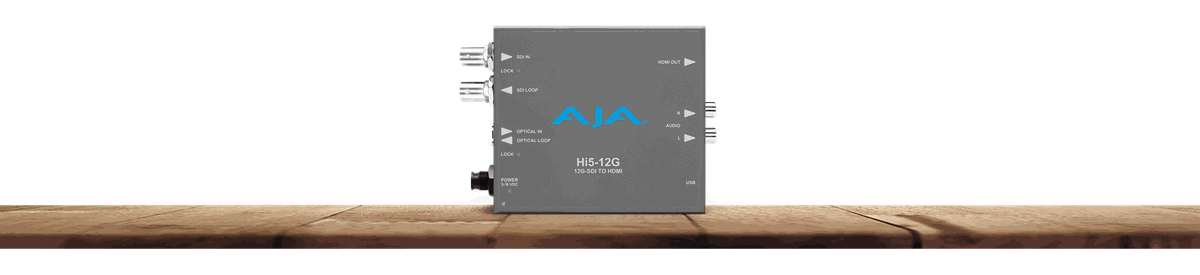

AJA Hi5-12G-TR 12G-SDI to HDMI 2.0 Converter

The Hi5-12G-TR converts a single-link 12G-SDI source to HDMI 2.0 for driving 4K/UltraHD displays at up to 60p, handling resolutions up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160). As the transceiver (TR) model, it can take an SDI or fiber source to an HDMI destination while passing the source on through SDI or fiber to a second device, and a reclocked SDI loop-out simplifies confidence monitoring in an SDI pipeline.

It ships with a single-channel LC fiber SFP transceiver so 4K signals can travel long distances on single-mode fiber in either direction. The Hi5-12G-TR generates HDR metadata in accordance with HDMI v2.0 and CTA-861-G, and runs on 5 to 16 VDC from the included universal power supply.
