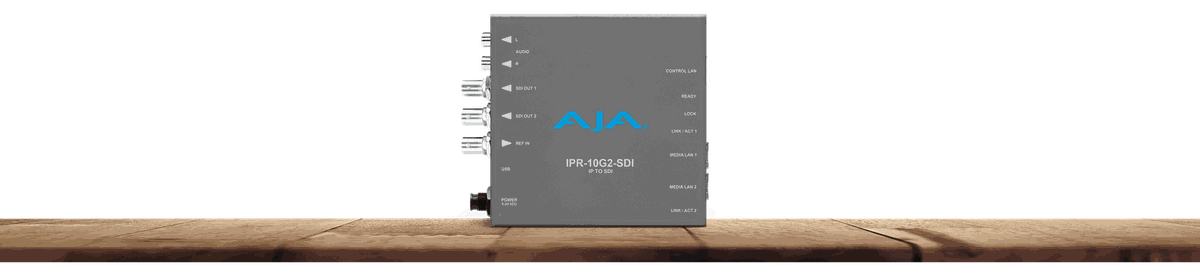

AJA IPR-10G2-SDI SMPTE ST 2110 To 3G-SDI IP Mini-converter

IPR-10G2-SDI receives SMPTE ST 2110 media from an IP network and outputs baseband SDI. It supports single-channel ST 2110 with dual-stream hitless switching and provides two mirrored 3G-SDI BNC outputs up to HD 60p at 4:2:2 10-bit YCbCr.

It handles up to 16-channel SDI embedded audio at 24-bit 48 kHz synchronous. Two 10 GigE SFP+ cages carry media while a 1 GigE RJ-45 handles control. The converter draws 13 watts from a 5-20 VDC universal supply and measures 5.07" x 0.94" x 5.06".
