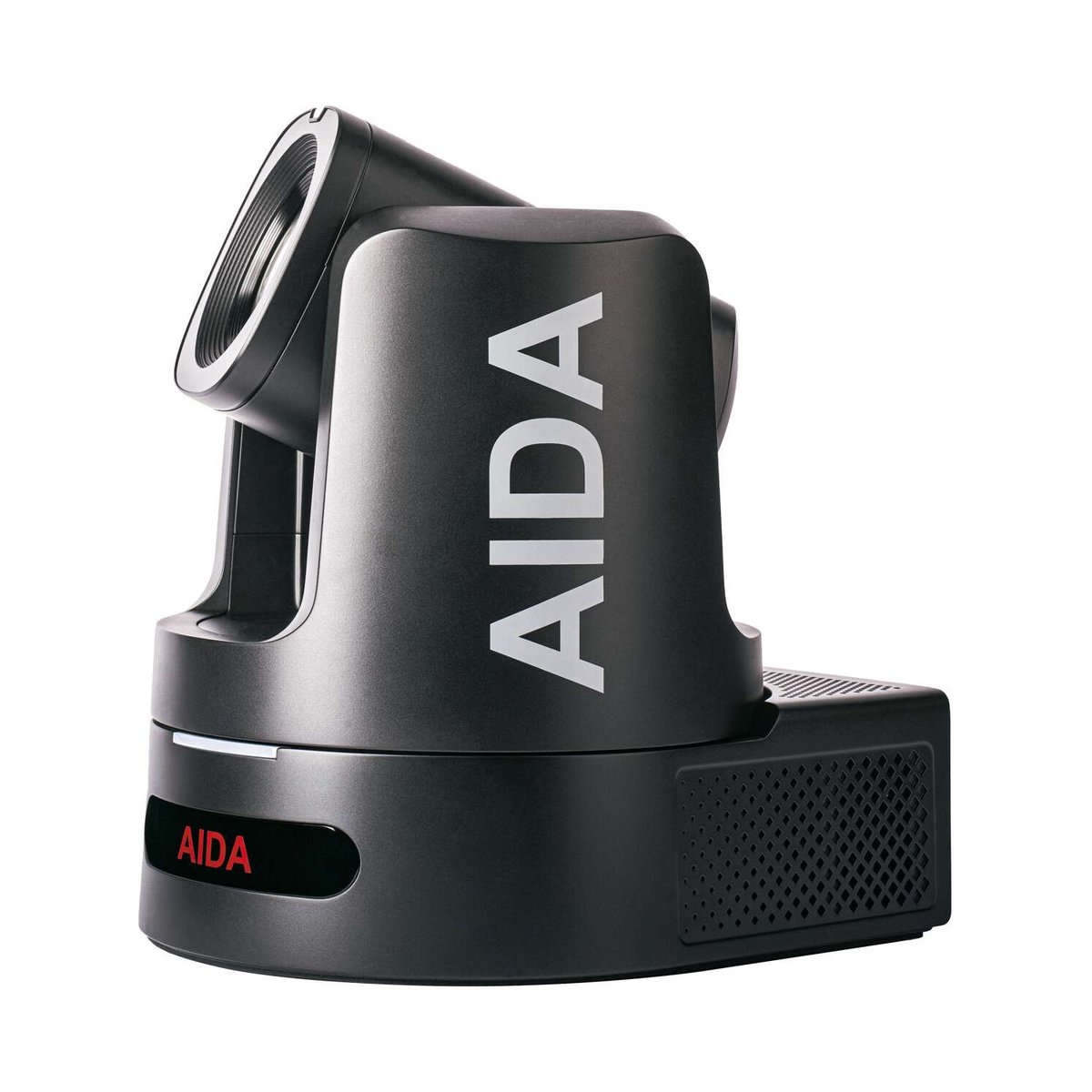

Aida Imaging AIDA PTZ4K12G-FNDI-X30B 4K Full-Bandwidth NDI 12G-SDI Auto-Tracking PTZ Camera, 30X Zoom, Black

The AIDA PTZ4K12G-FNDI-X30 is AIDA's top-tier PTZ camera, built around a 4K 9-megapixel 1/1.8-inch Sony CMOS sensor and a 30x zoom lens (f=6.91-214.64mm) with a 60-degree wide field of view. It is the most connected camera in AIDA's lineup: 12G-SDI and 3G-SDI for full-bandwidth 4K signal runs, HDMI, USB-C, SFP+ fiber for long cable runs, and IP with SRT and NDI|HX3, so it slots into broadcast trucks and IP-based studios alike without a converter.

Pan travels -170 to +170 degrees and tilt -90 to +90 degrees, and the camera includes AI auto-tracking to follow a moving subject, support for Intel's FreeD protocol for virtual-set and augmented-reality workflows, and a genlock port to lock timing with other cameras and studio hardware. Housed in hardened aluminum for durability under repeated production use, it is built for broadcast productions, large houses of worship, and AR/virtual studios that need both the image quality and the connectivity to match a full production truck. Available in Black or White.

Sensor4K 9MP 1/1.8-inch Sony CMOS
Optical Zoom30x, f=6.91-214.64mm, 60-degree wide field of view

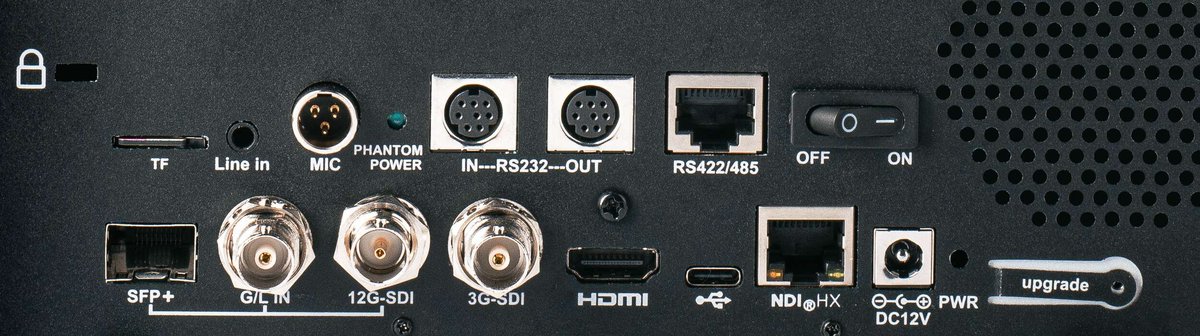

Outputs12G-SDI, 3G-SDI, HDMI, USB-C, SFP+ fiber, IP/SRT, NDI|HX3
Pan / Tilt-170 to +170 degrees pan, -90 to +90 degrees tilt
Special FeaturesAI auto-tracking, Intel FreeD protocol, genlock sync port
ConstructionHardened aluminum housing
ColorBlack or White
