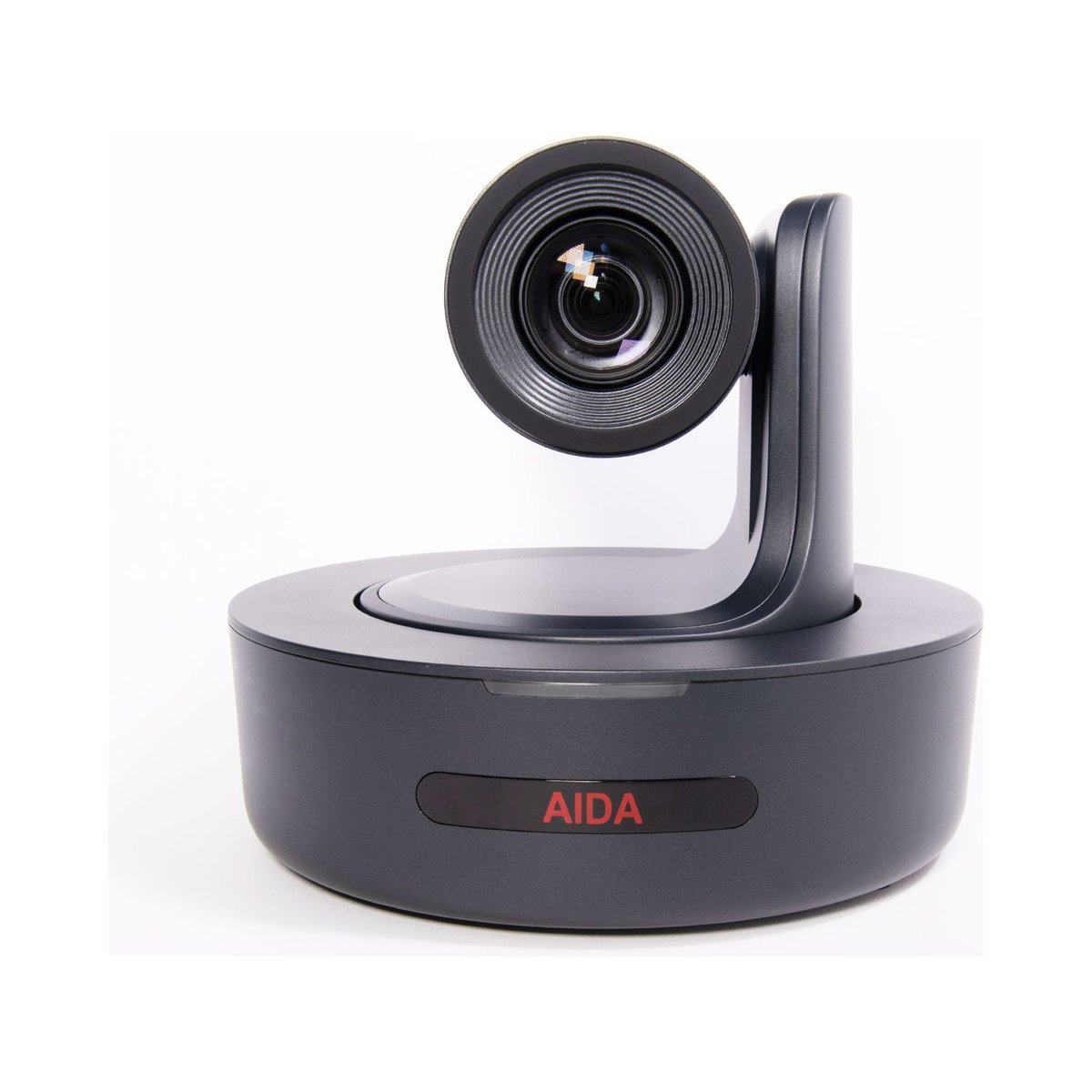

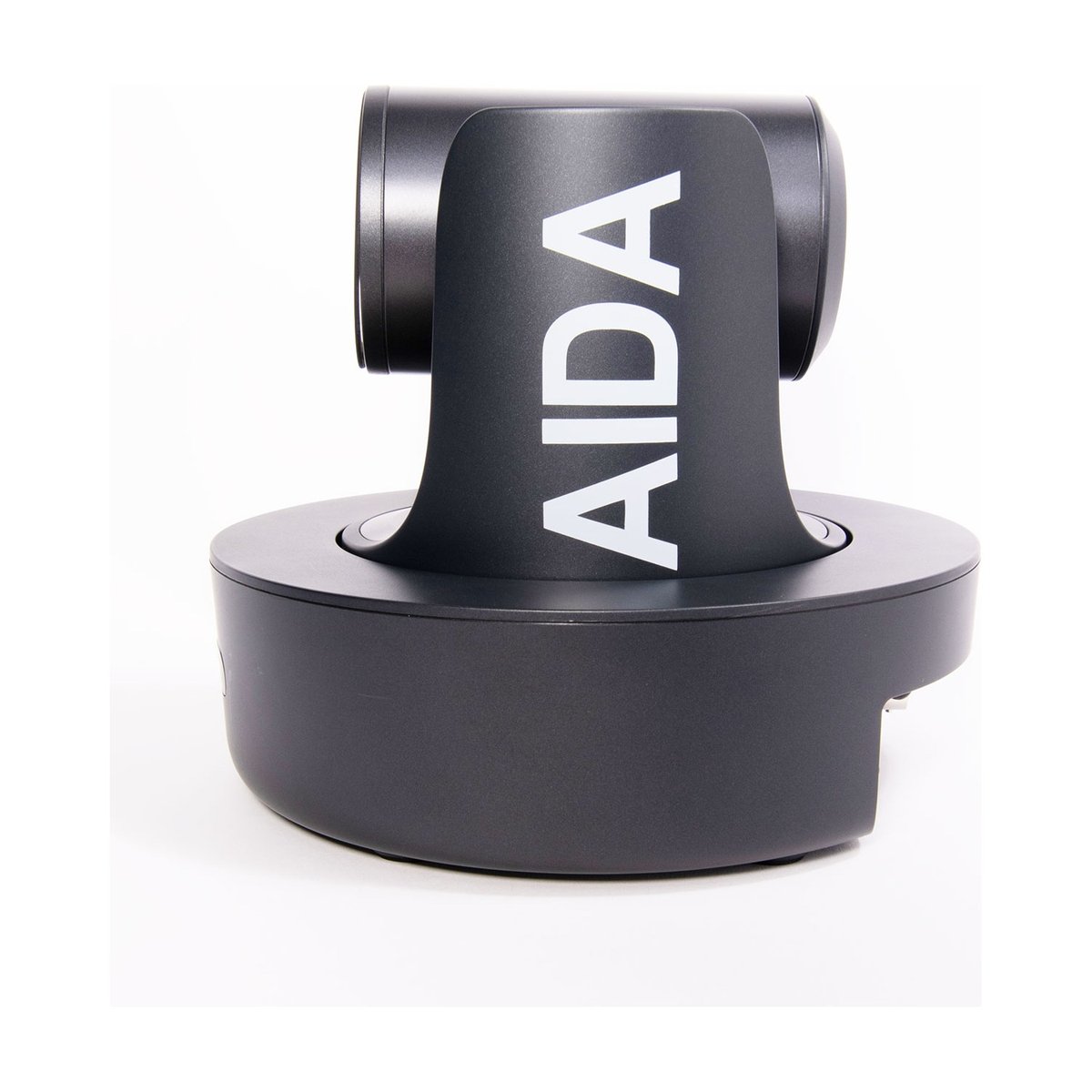

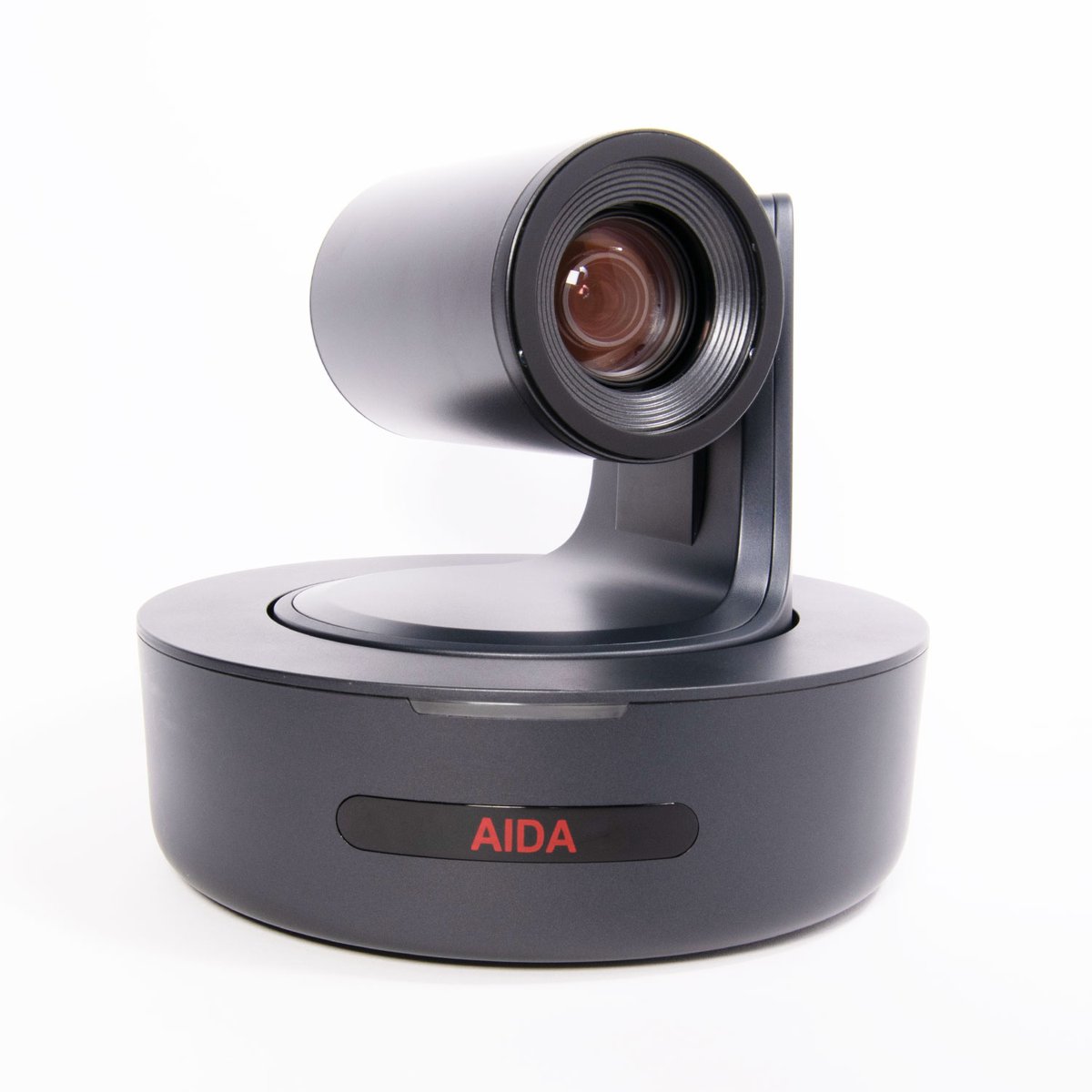

AIDA PTZ-X20-IP Full HD Broadcast/Conference PTZ Camera, 20X Zoom

The AIDA PTZ-X20-IP steps up to 20x power zoom from a 1/2.5-inch progressive CMOS sensor, outputting simultaneously over 3G/HD-SDI, HDMI, USB 3.0/2.0, and RJ-45 IP. On the IP side it streams using either H.264 or the more efficient H.265 (HEVC) codec, and while the SDI, HDMI, and USB outputs must share a common resolution up to 1080p60, the IP stream can run independently at its own resolution and frame rate.

Camera control uses the VISCA protocol over TCP/IP or RTSP/RTMP, with 10 presets available from the included IR remote and up to 128 over serial control for larger installs. A motion-compensated temporal noise reduction filter keeps low-light footage clean without blurring movement. AIDA positions this camera for broadcast applications, huddle rooms, and houses of worship, the same venues where a 20x reach and clean IP streaming both matter.

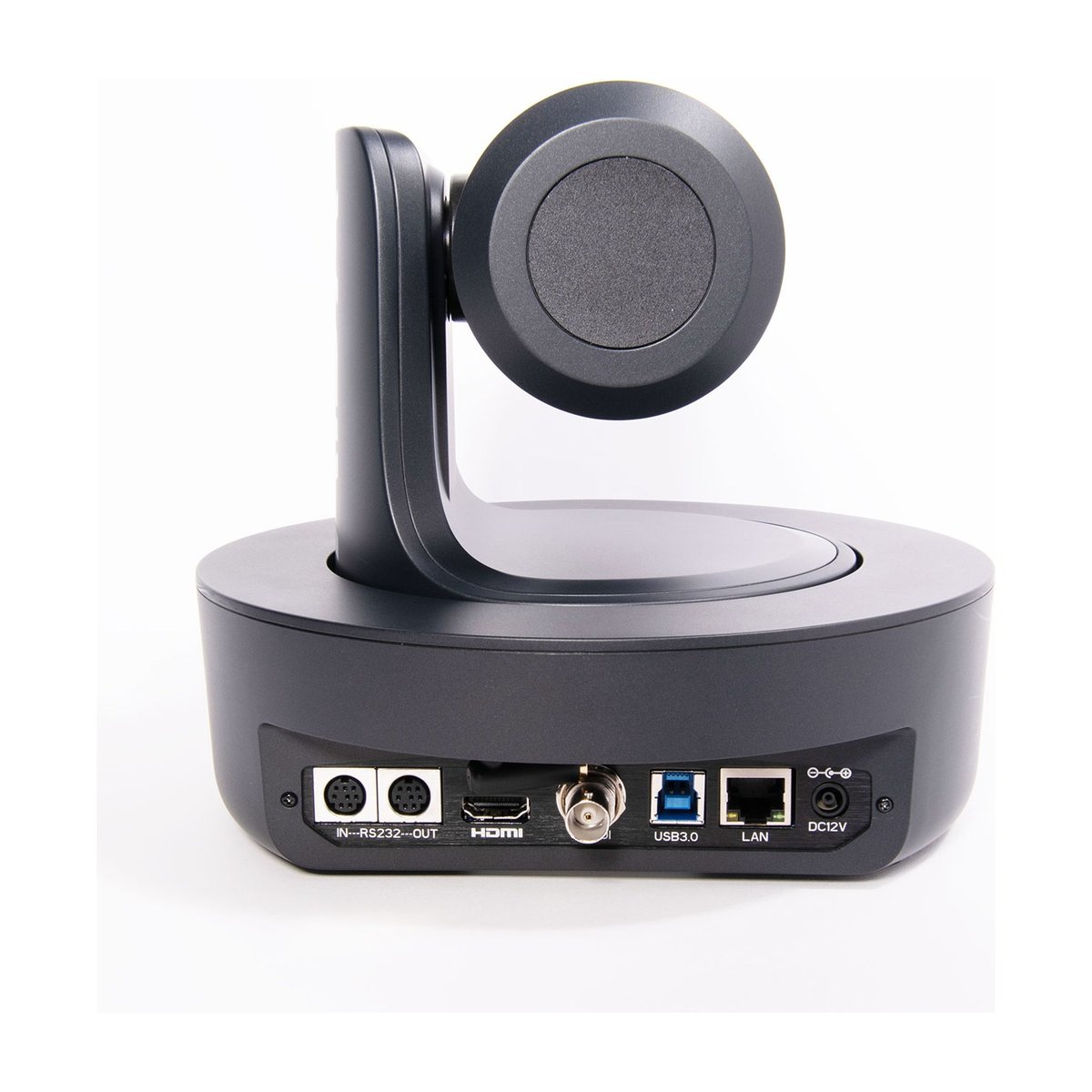

  • Outputs3G/HD-SDI, HDMI, RJ-45, USB 3.0/2.0
  • Image Sensor1/2.5-inch progressive CMOS, 1920 x 1080 effective pixels
  • Resolution1080p & 1080i: 1920 x 1080
  • Power12VDC (+9 – +15VDC) PoE+ (IEEE802.3at Standard Required)
  • Weight1.35kg / 2.97lbs
Image Sensor1/2.5-inch progressive CMOS, 1920 x 1080 effective pixels
Optical Zoom20x power zoom
Outputs3G/HD-, , RJ-45, USB 3.0/2.0
IP StreamingH.264 or H.265 (HEVC)
ControlVISCA over TCP/IP, RTSP/RTMP
Presets10 via IR remote, up to 128 via serial control
Noise ReductionMotion-compensated temporal noise reduction
Typical UseBroadcast, huddle rooms, houses of worship
Field of View61°
Weight1.35kg / 2.97lbs
Resolution1080p & 1080i: 1920 x 1080
Power12VDC (+9 – +15VDC) + (IEEE802.3at Standard Required)
