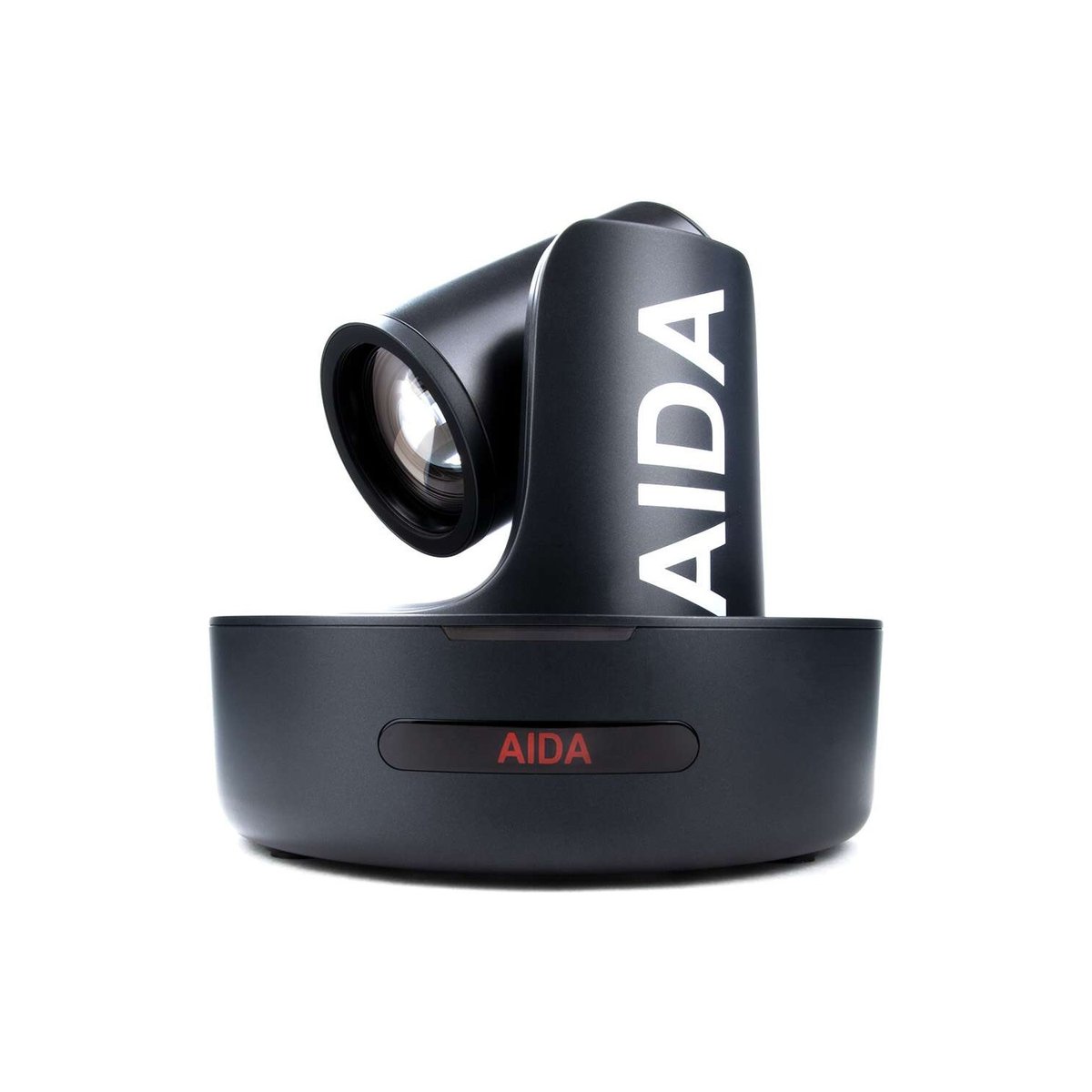

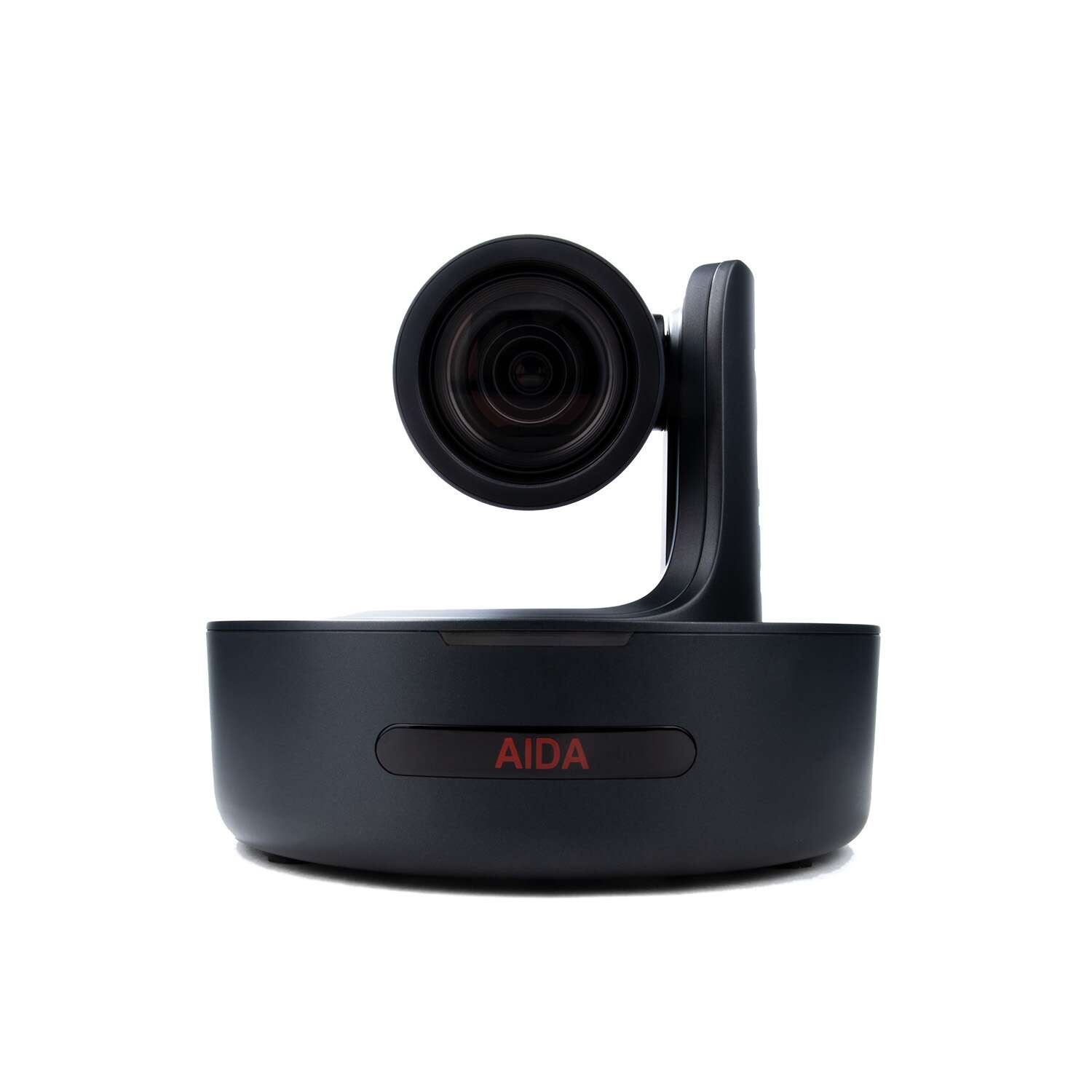

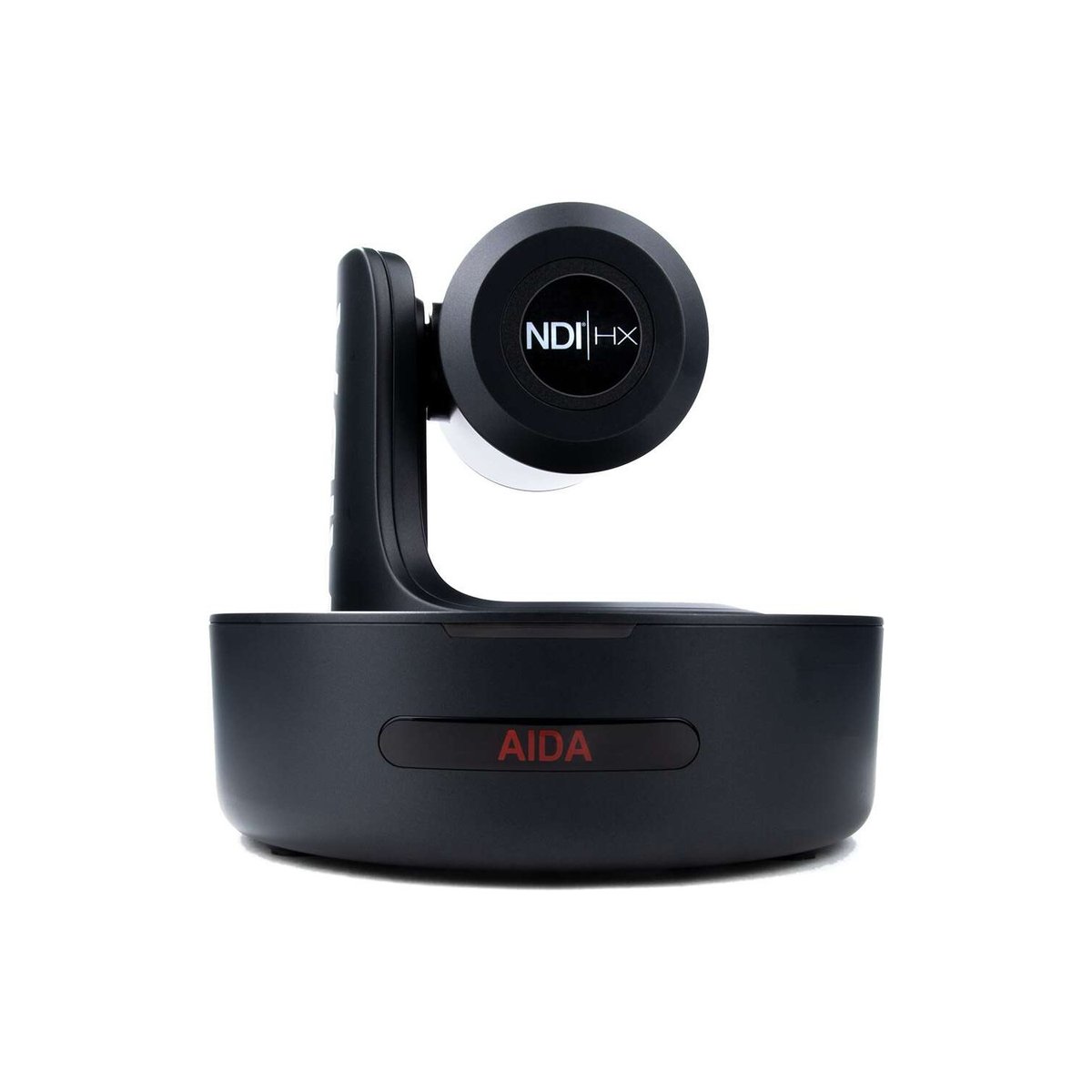

Aida Imaging AIDA PTZ-NDI-X12 Full HD Broadcast/Conference NDI PTZ Camera, 12X Zoom
The AIDA PTZ-NDI-X12 pairs a 1/2.5-inch progressive CMOS sensor with a 12x optical zoom lens and puts out video simultaneously over HD-SDI/3G-SDI, HDMI, USB 3.0/2.0, and NDI|HX2 via IP, so one camera can feed a broadcast switcher, a conferencing app, and an NDI network at the same time. Resolution runs up to 1080p60 on the SDI, HDMI, and USB outputs, while the IP streaming port can carry a different resolution and frame rate independently, from 1 to 60 fps.
Camera control runs over RS-232 serial or VISCA over IP, compatible with most third-party VISCA controllers as well as AIDA's own CCU-IP and CCU-MINI. Up to 10 presets are available from the included IR remote, or up to 128 over serial control for a larger multi-camera install. A motion-compensated temporal noise reduction filter cleans up low-light footage without smearing motion, which matters in dimmer conference rooms and worship spaces where this camera is a common fit.
| Image Sensor | 1/2.5-inch progressive CMOS, 1920 x 1080 effective pixels |
|---|---|
| Optical Zoom | 12x |

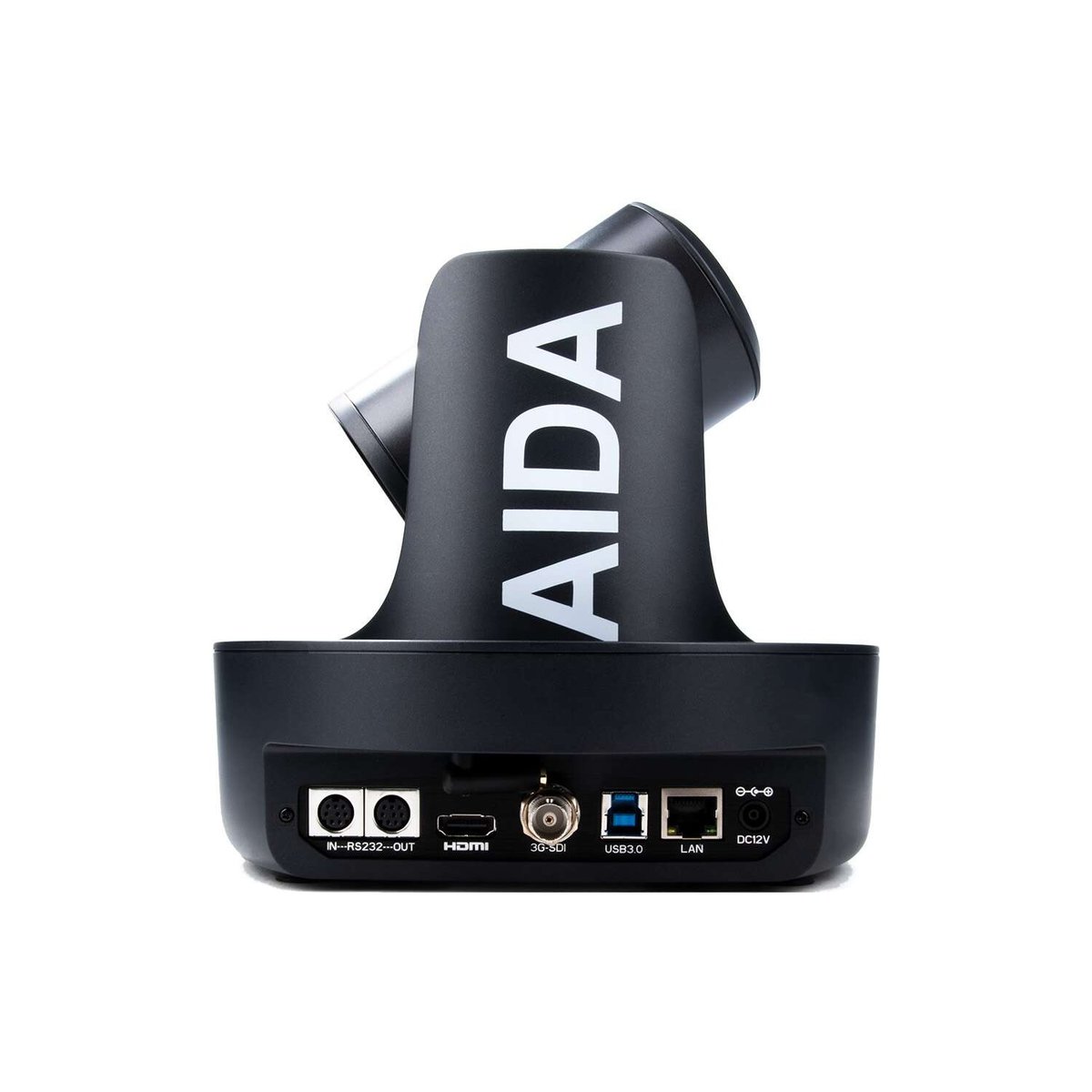

| Outputs | 3G/HD-SDI, HDMI, USB 3.0/2.0, NDI|HX2, RTSP/RTMP over IP |
| Max Resolution | 1080p60 |
| Control | RS-232 serial, VISCA and VISCA over IP |
| Presets | 10 via IR remote, up to 128 via serial control |
| Noise Reduction | Motion-compensated temporal noise reduction |
