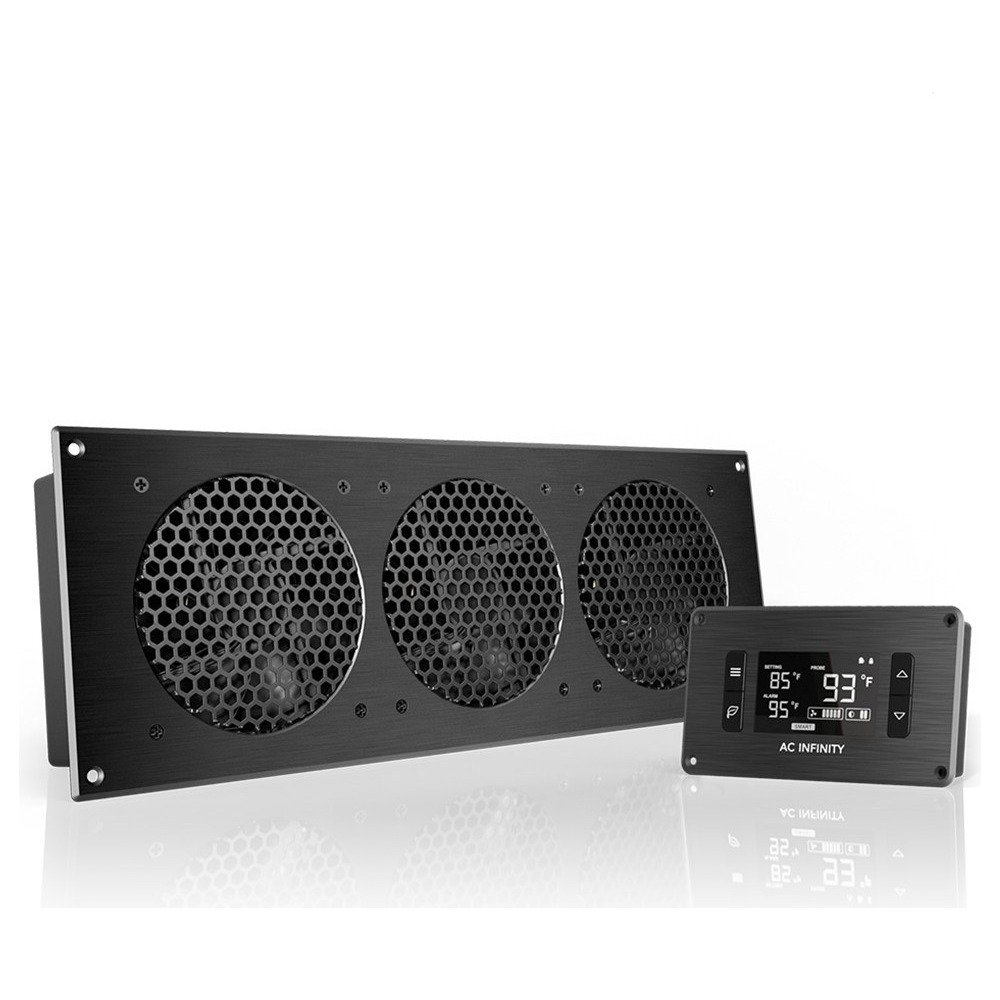

AC Infinity AIRPLATE T9 Cabinet Cooling Fan
The AIRPLATE T9 steps up to an 18-inch fan for cabinets and equipment enclosures that need more total airflow than the smaller AIRPLATE models move, still governed by an LCD thermal controller rather than a fixed manual switch. The controller reads a probe inside the cabinet and adjusts fan speed automatically as equipment heats up, with six speed steps and a backlit display for checking status at a glance.
It shares the same CNC-machined aluminum construction and dual ball bearings as the rest of the AIRPLATE line, rated for a 67,000-hour service life, and the controller can manage additional compatible AC Infinity fans from one panel. It mounts into a cutout in the cabinet the same way the smaller models do.
| Fan Diameter | 18 in. |
|---|---|
| Control Type | LCD temperature controller |
| Bearings | Dual Ball, 67,000-hour L10 life |
| Materials | CNC-machined aluminum frame |
| Operating Temperature | 0 - 158 deg F |
| Operating Humidity | 35 - 85% RH |
| Wall Adapter Input | 100 - 240V AC |
