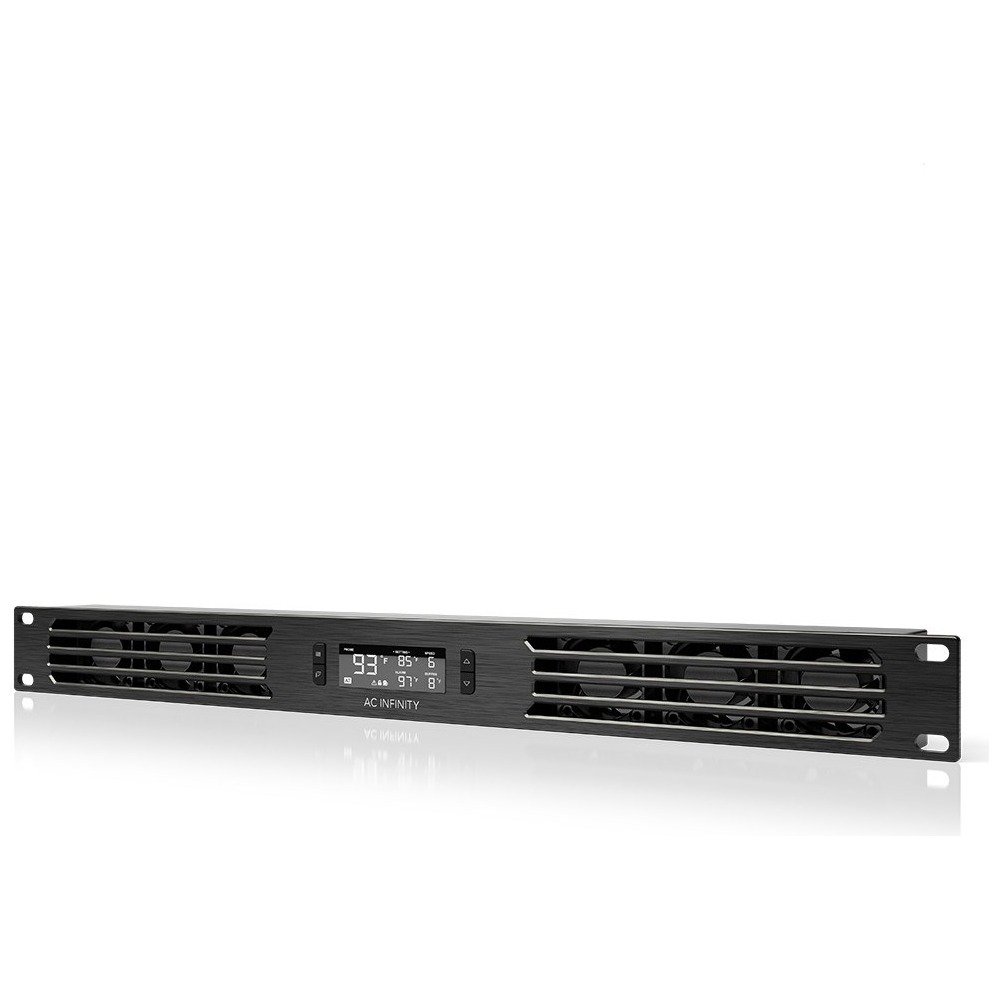

AC Infinity CLOUDPLATE T1 1U Rack Cooling Fan System

The CLOUDPLATE T1 bolts into a single rack unit on a standard 19-inch rack and moves 20 to 60 CFM through six dual-ball-bearing fans, scaling speed to match how much heat the rack is actually generating. An LCD digital controller runs a programmable thermostat with automated speed adjustment, alarm warnings for a stalled fan or over-temperature condition, and a backup memory that holds its settings through a power cycle.

It ships in exhaust or intake airflow direction so it can pull hot air out of a rack or push cool air in depending on how the rest of the rack is set up to breathe, and it mounts with the included rack screws and cage nuts. The anodized aluminum housing and CE/RoHS certification make it a straightforward add to a rack that is already running warm.

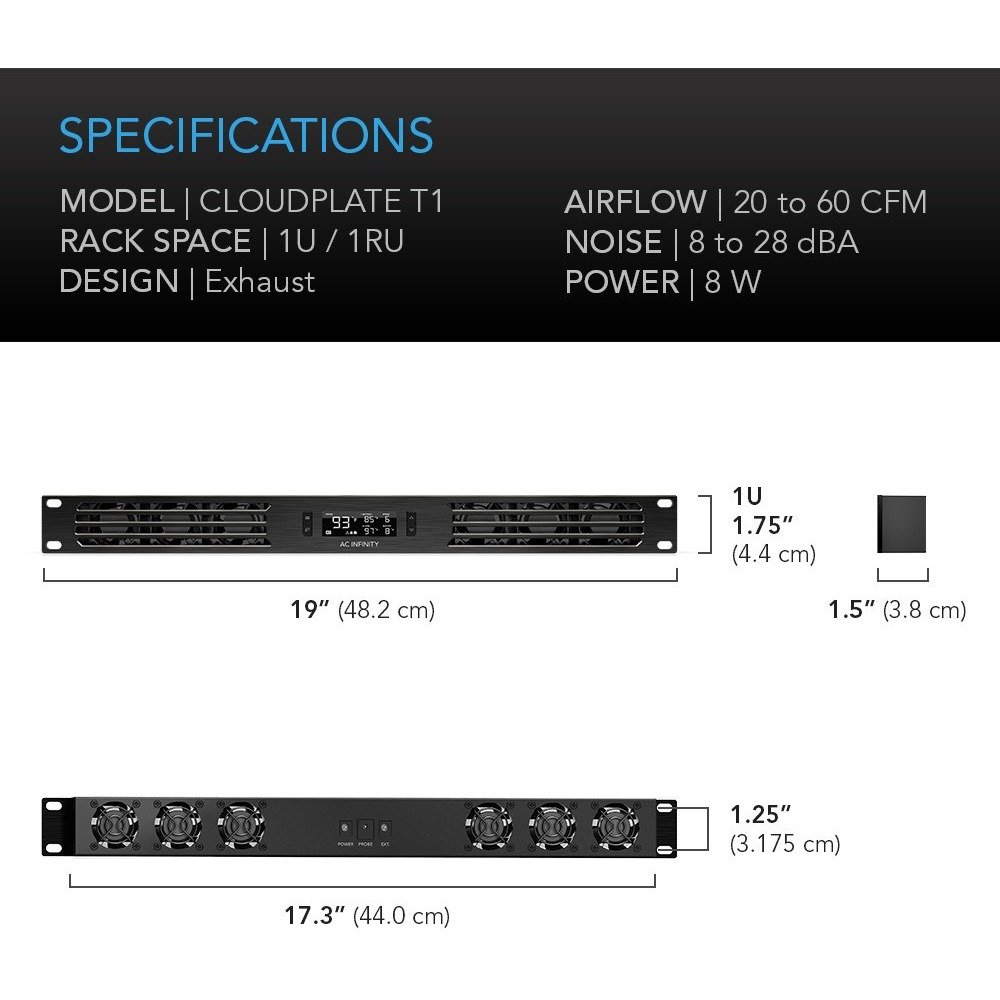

Rack Height1U
Airflow20 - 60 CFM
Noise Level8 - 28 dBA
Power8W, 12V DC
BearingsDual Ball, 67,000-hour L10 life
MaterialsAnodized aluminum, CNC-machined details
Operating Temperature0 - 158 deg F
CertificationsCE, RoHS
