AC Infinity CLOUDPLATE T5 1U Rear-Exhaust Rack Fan System

The CLOUDPLATE T5 uses three custom-engineered dual-ball-bearing fans to pull 40 to 180 CFM out the rear of a 1U rack space, for a rack that already vents forward and needs extra rear exhaust to keep up with a dense equipment load. A programmable thermostat automatically adjusts fan speed against a probed temperature rather than running the fans flat out all the time.

It is CE and RoHS certified and mounts to a standard 19-inch rack with the included hardware, running from a 12V DC supply through a wall adapter.

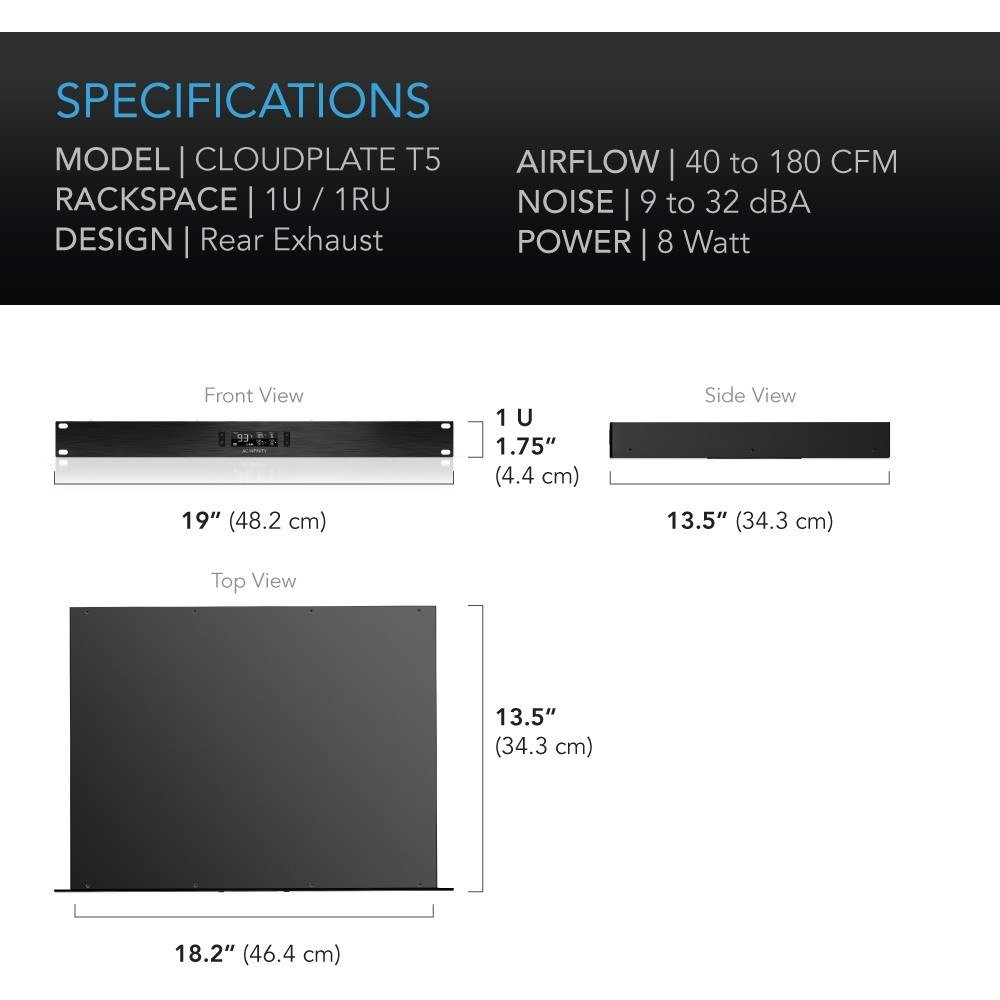

Rack Height1U
DesignRear exhaust
Airflow40 - 180 CFM
Noise Level9 - 32 dBA
Power8 W, 12V DC
BearingsDual Ball, 67,000-hour L10 life
Operating Temperature0 - 158 deg F
CertificationsCE, RoHS
