AC Infinity 1U Heavy-Duty Rack Drawer with Aluminum Faceplate

This 1U drawer gives a rack a place to keep the loose items that otherwise end up on top of the amplifier: adapters, test leads, remotes, spare fuses. The body is 2mm cold rolled steel finished in black powder coat, and the faceplate is anodized aluminum with a brushed grain, so it reads the same as the gear mounted above and below it.

The drawer pulls out roughly 14 inches on its slides and the rotating handle retracts flush with the faceplate when you are done. A lined mat keeps contents from sliding, and a grommet at the rear lets a cable pass through if you are storing something that stays connected. Four #10-32 rack screws with washers and cage nuts are in the box.

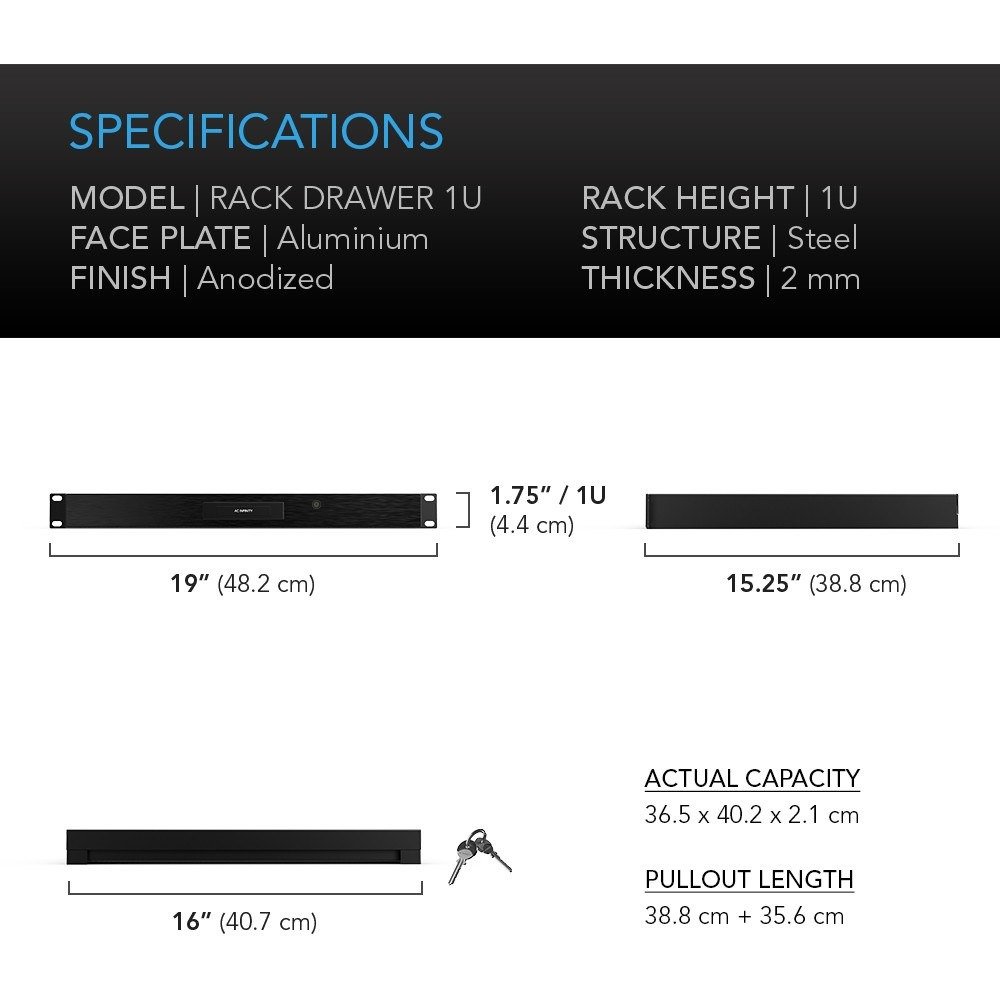

Rack Mount Size1U
Total Dimensions15.25 x 19 x 1.75 in. (38.8 x 48.2 x 4.4 cm)
Interior Capacity36.5 x 40.2 x 2.1 cm
Pull Out Length38.8 cm + 35.6 cm
FaceplateAnodized black brushed aluminum
Structure2mm cold rolled steel, black powder coat
Drawer HandleRetractable rotating
IncludedDrawer mat, rear cable grommet, four #10-32 rack screws with washers and cage nuts
