AC Infinity 2U Heavy-Duty Rack Drawer with Aluminum Faceplate
The 2U version of the AC Infinity rack drawer takes the same 2mm cold rolled steel body and doubles the interior height, which is enough for coiled cable, a wireless receiver in its pouch, or a stack of manuals. The anodized aluminum faceplate is brushed and finished in black so it sits cleanly among the components around it.
Slides carry the drawer out about 14 inches for access from the front of the rack, and the rotating handle folds back flush when it is closed. A mat lines the base to stop contents shifting, and a rear grommet passes a cable through for anything that needs to stay powered. Mounting hardware is four #10-32 rack screws with washers and cage nuts.

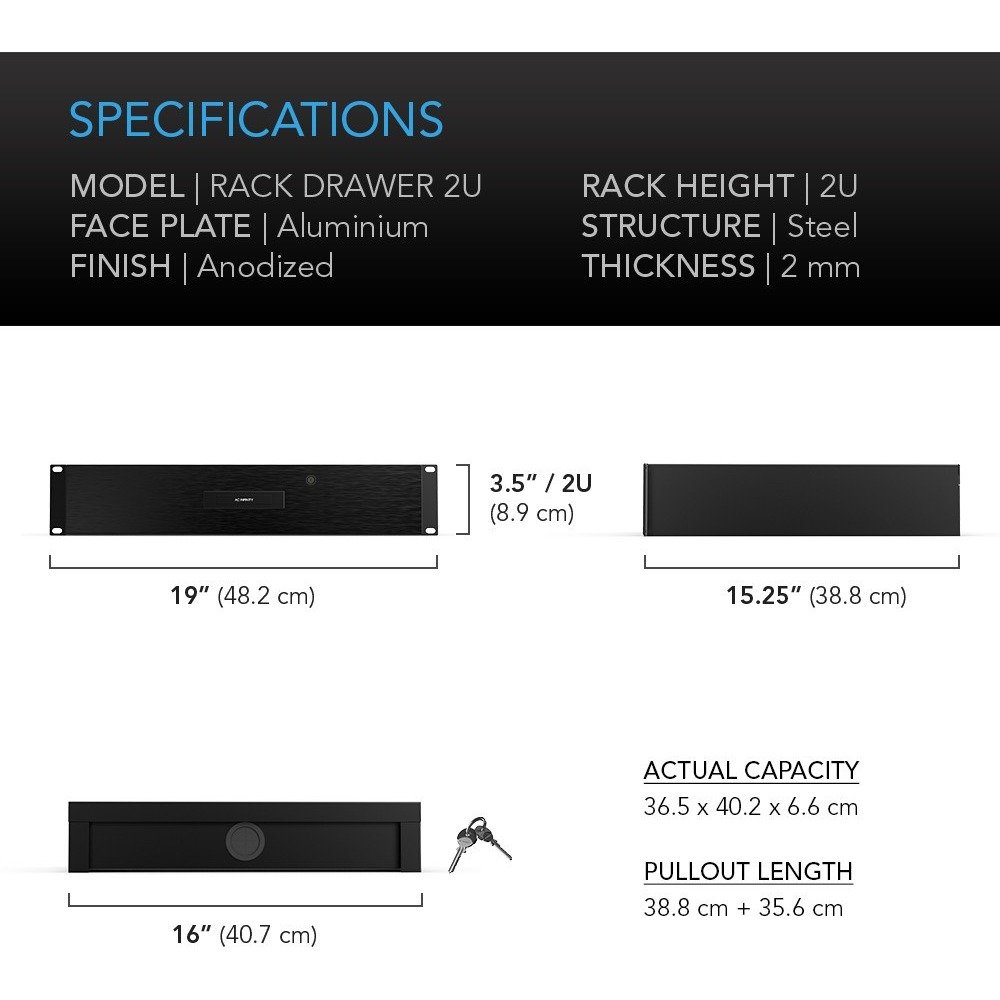

| Rack Mount Size | 2U |
|---|---|
| Total Dimensions | 15.25 x 19 x 3.5 in. (38.8 x 48.2 x 8.9 cm) |
| Interior Capacity | 36.5 x 40.2 x 6.6 cm |
| Pull Out Length | 38.8 cm + 35.6 cm |
| Faceplate | Anodized black brushed aluminum |
| Structure | 2mm cold rolled steel, black powder coat |
| Drawer Handle | Retractable rotating |
| Included | Drawer mat, rear cable grommet, four #10-32 rack screws with washers and cage nuts |
