Yamaha VS Series Surface Mount Loudspeaker

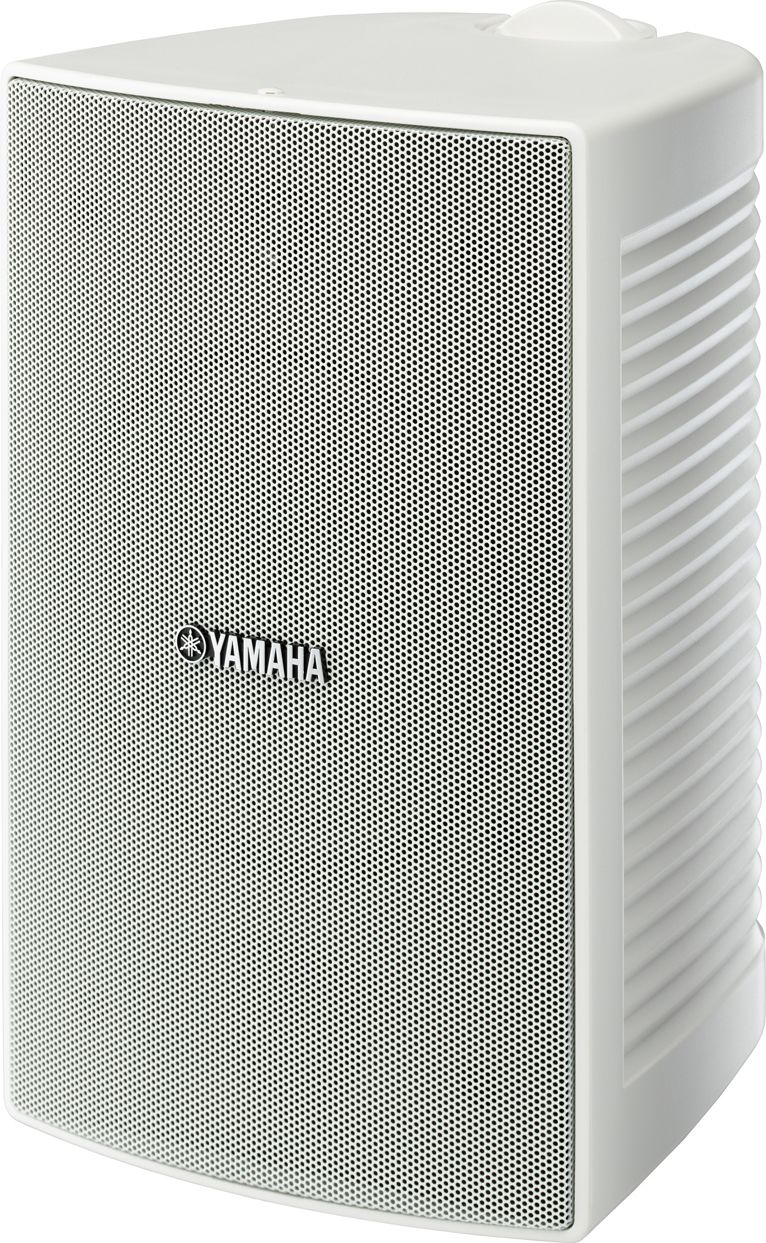

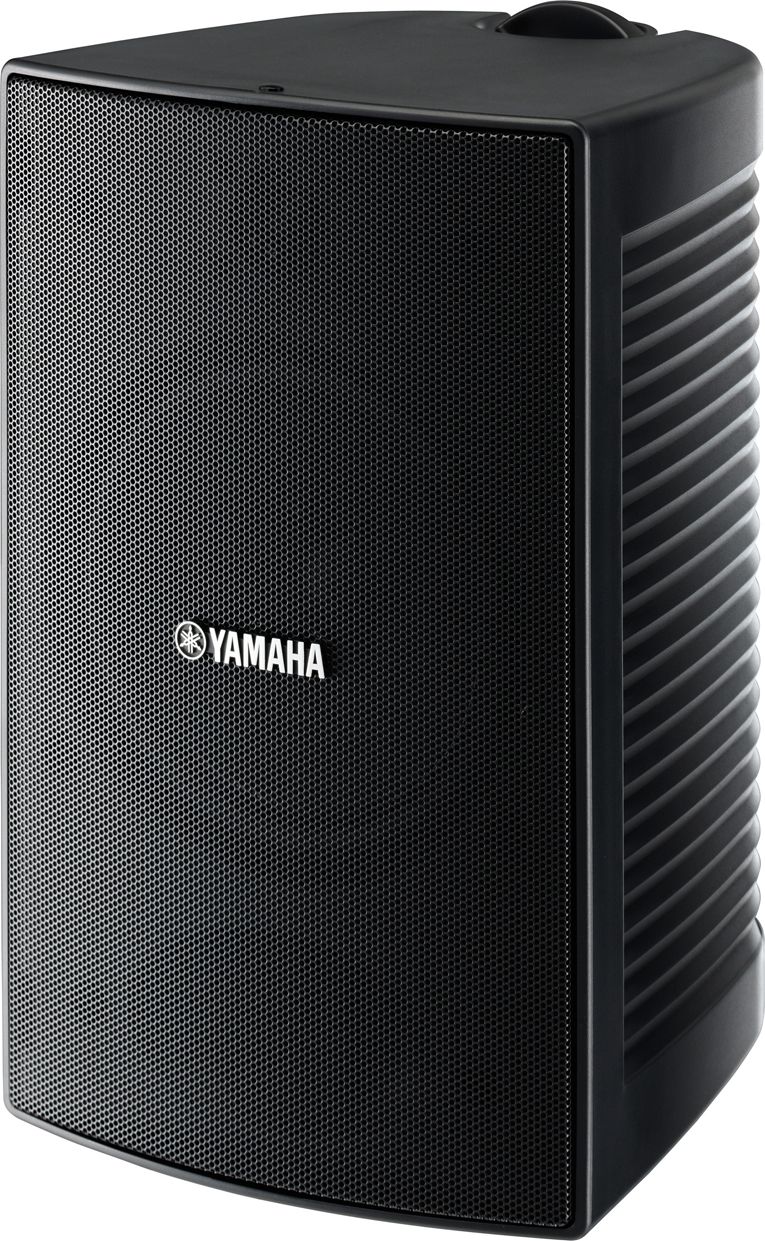

VS Series are the small surface-mount boxes for background music and paging, the ones that go on a wall in a restaurant, a retail floor, or a covered patio. Each is a rectangular HIPS enclosure with a cone driver and a 1-inch balanced dome tweeter, rated IPX3 splash proof under IEC60529, so an outdoor run under an eave is within spec.

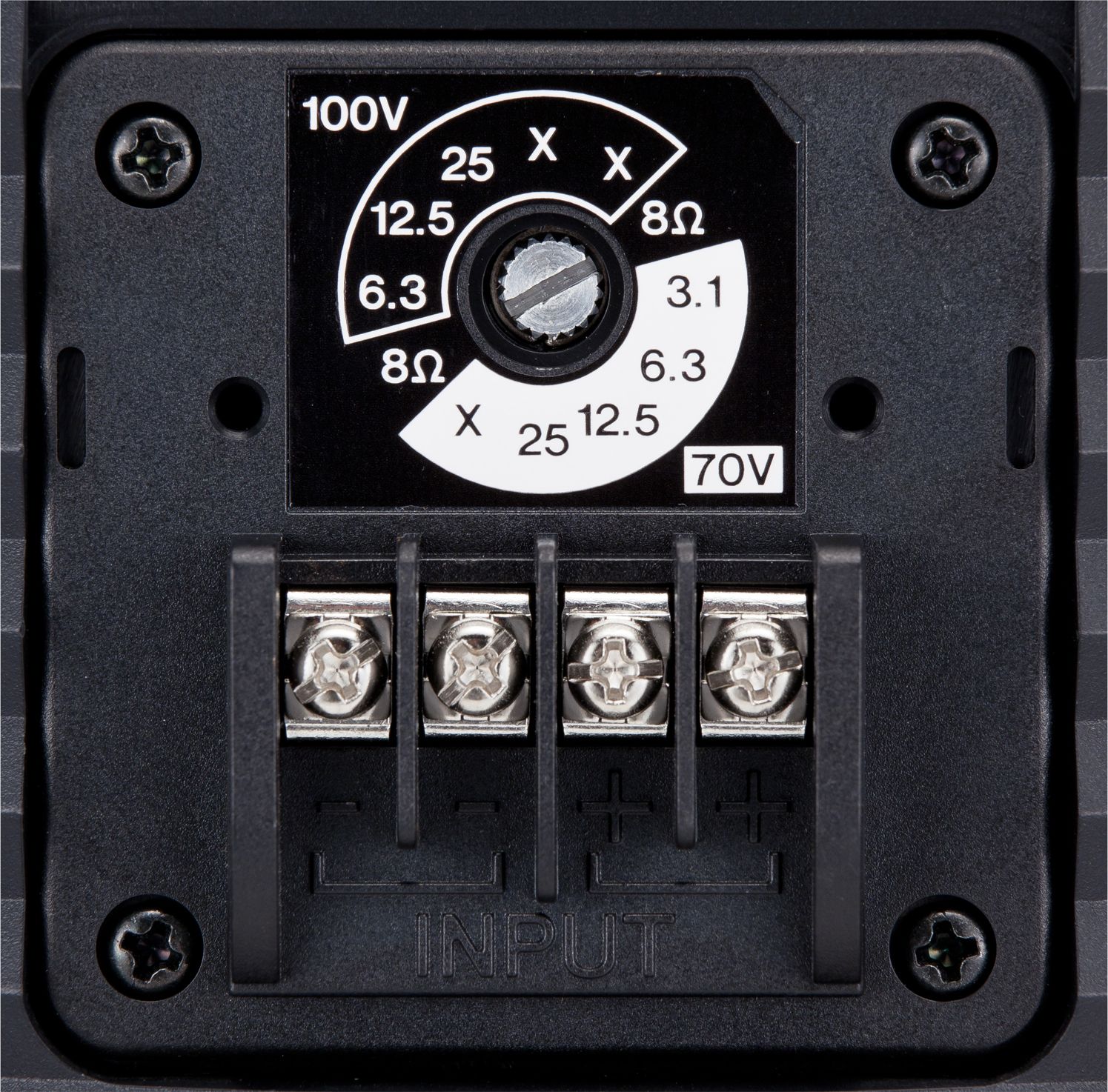

Wiring is flexible: a barrier strip on the back carries transformer taps for both 70V and 100V distributed lines, or the speaker can be run at 8 ohms low impedance on a conventional amplifier. The VS4 covers 100 Hz to 20 kHz with a 110 degree pattern and takes 30 W program; the VS6 goes to 80 Hz with a 90 degree pattern at 50 W program. Both ship as a packaged pair with a U-bracket, retaining knob, and terminal cover.

Type	Surface mount loudspeaker, rectangular HIPS enclosure
Drivers	VS4 4" (100 mm) cone / VS6 6.5" (160 mm) cone, both with 1" (25 mm) balanced dome tweeter
Frequency Range (-10 dB)	VS4 100 Hz - 20 kHz / VS6 80 Hz - 20 kHz
Nominal Coverage	VS4 110 degrees / VS6 90 degrees
Power Rating (Program)	VS4 30 W / VS6 50 W
Transformer Taps (70V)	VS4 15 W, 7.5 W, 3.8 W, 1.9 W / VS6 25 W, 12.5 W, 6.3 W, 3.1 W
Nominal Impedance	8 ohms
Sensitivity	VS4 88 dB / VS6 90 dB SPL (1 W, 1 m on axis)
Rating	IEC60529 IPX3 splash proof
Included	U-bracket, retaining knob, terminal cover and screw
