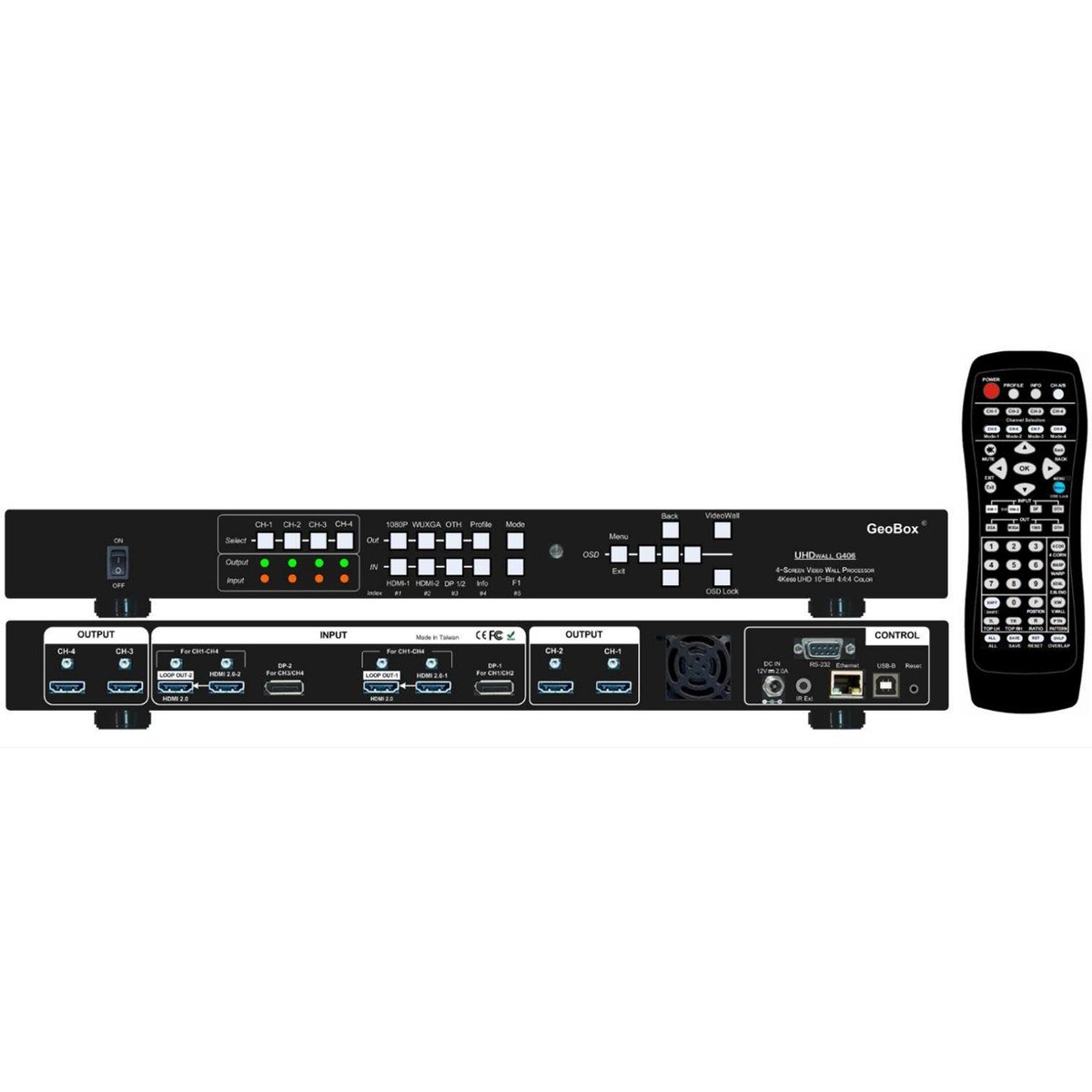

VigilLink GeoBox G406 4-channel 4K Video Wall

The G406 drives a 4-screen video wall from up to 4K sources while also acting as its own input switcher, taking two HDMI 2.0b and two DisplayPort 1.2a inputs and routing any of them across its four HDMI outputs. Each output runs up to 1080p or WUXGA at 60Hz, with pixel-accurate position alignment (plus or minus 1800 pixels) for lining up bezels and mismatched mounting across the wall.

A 10-bit processor with 3D motion-adaptive de-interlacing and frame-lock synchronization keeps all four outputs in step with each other, and built-in HDR support (SMPTE ST-2084/2086) carries HDR sources through the wall instead of flattening them to SDR. Two HDMI loop-outs allow daisy-chaining to additional G406-family units for walls larger than four screens, controlled from the front panel, IR remote, RS-232, USB, or Ethernet.
