Universal Audio UAFX Starlight Echo Station
Starlight Echo Station carries three delay circuits. The tape machine emulation is selectable as New, Used or Worn, the bucket-brigade analog engine reproduces the color, haze and modulation of the original hardware, and the digital engine is clean with its own modulation textures.

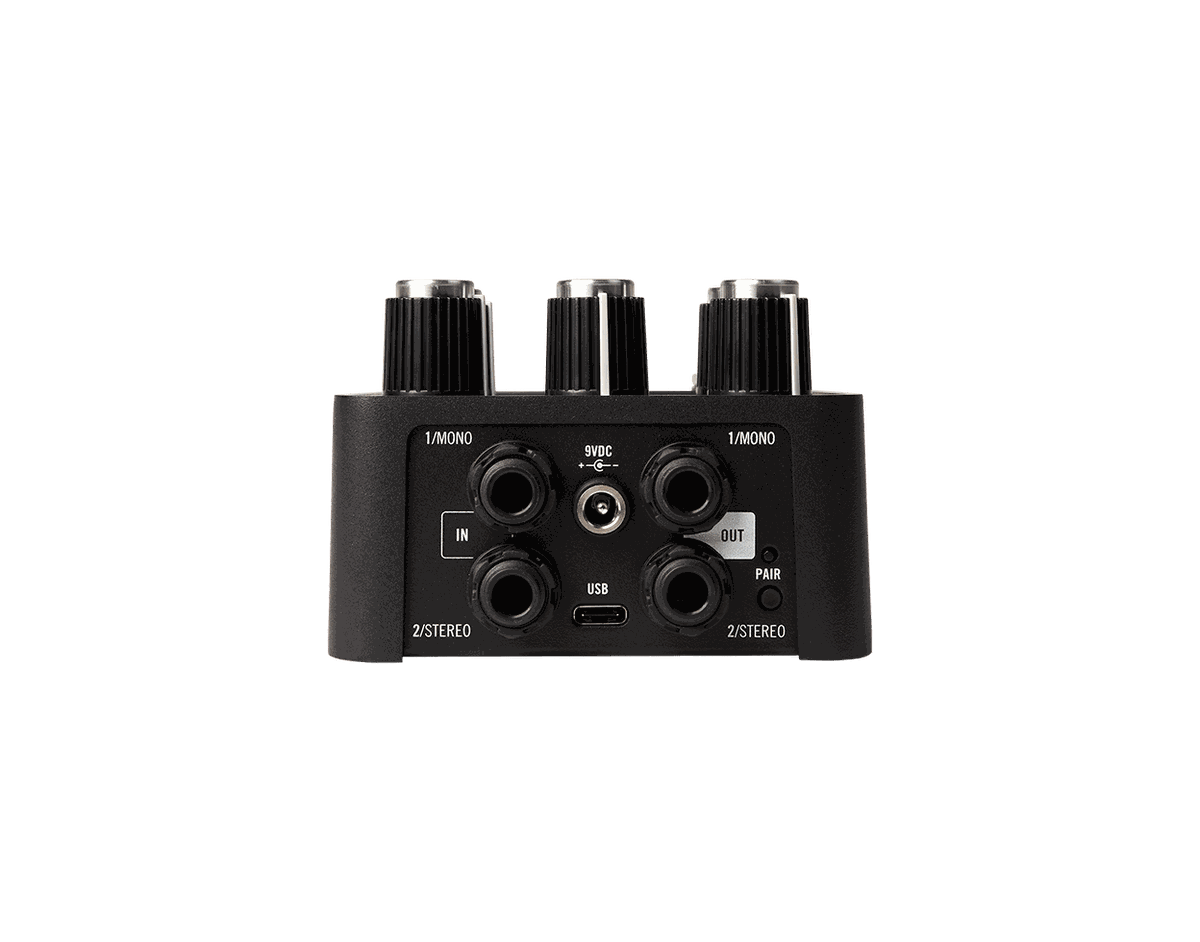

Each engine has its own voice rather than being one algorithm with a filter over it, which is why it replaces a small pile of delay pedals. Connections are 1/4 inch unbalanced in and out with stereo capability on the second jacks, and USB Type-C handles registration and firmware. The UAFX Control app adds realtime MIDI control, Bluetooth and hardwired connections, and footswitch modes with presets on tap.
| Inputs | 2 x 1/4" unbalanced TS (input 2 for stereo connections) |
|---|---|
| Outputs | 2 x 1/4" unbalanced TS (output 2 for stereo connections) |
| Input Impedance | 500 Kilohms (Mono In) 1 Megohms (Stereo In) |
| Output Impedance | 500 Ohms |
| Frequency Response | 20 Hz to 20 kHz, +/-1 dB |
| Power | Isolated 9VDC, center-negative, 400mA minimum |
| Dimensions | 2.56 x 3.62 x 5.55 in (H x W x D) |
| Weight | 1.24 lbs (0.567 kg) |
