Universal Audio UAFX 1176 Studio Compressor Pedal

The UAFX 1176 Studio Compressor puts UA's own FET compressor on a pedalboard, with controls kept faithful to the hardware so the settings translate.

Single, Dual and Sustain modes cover straight compression through to the aggressive, all-buttons-in character the original is known for. Connections are 1/4 inch unbalanced in and out with stereo capability on the second jacks, and USB Type-C handles registration and firmware. The UAFX Control app adds realtime MIDI control, Bluetooth and hardwired connections, and footswitch modes with presets on tap.

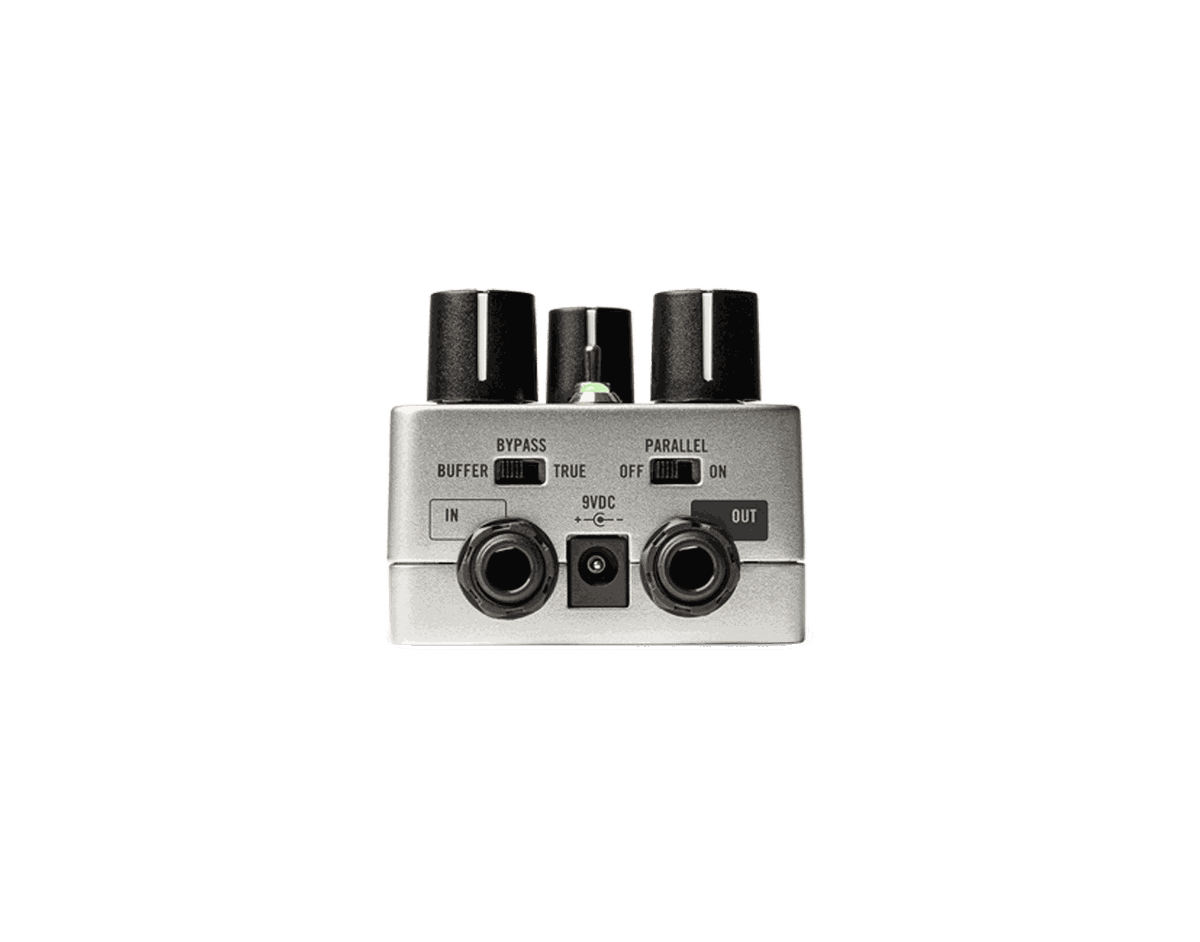

Inputs	1/4" unbalanced TS
Outputs	1/4" unbalanced TS
Input Impedance	1 Megohm
Output Impedance	500 Ohms
Frequency Response	20 Hz to 20 kHz, +/-1 dB
Power	Isolated 9VDC, center-negative, 250 mA minimum
Dimensions	2.29 x 2.58 x 4.75 in (H x W x D)
Weight	0.66 lbs (0.299 kg)
