Theatrixx xVision Dual SDI to Dual Fiber - XVV2SDI2FIBERT1

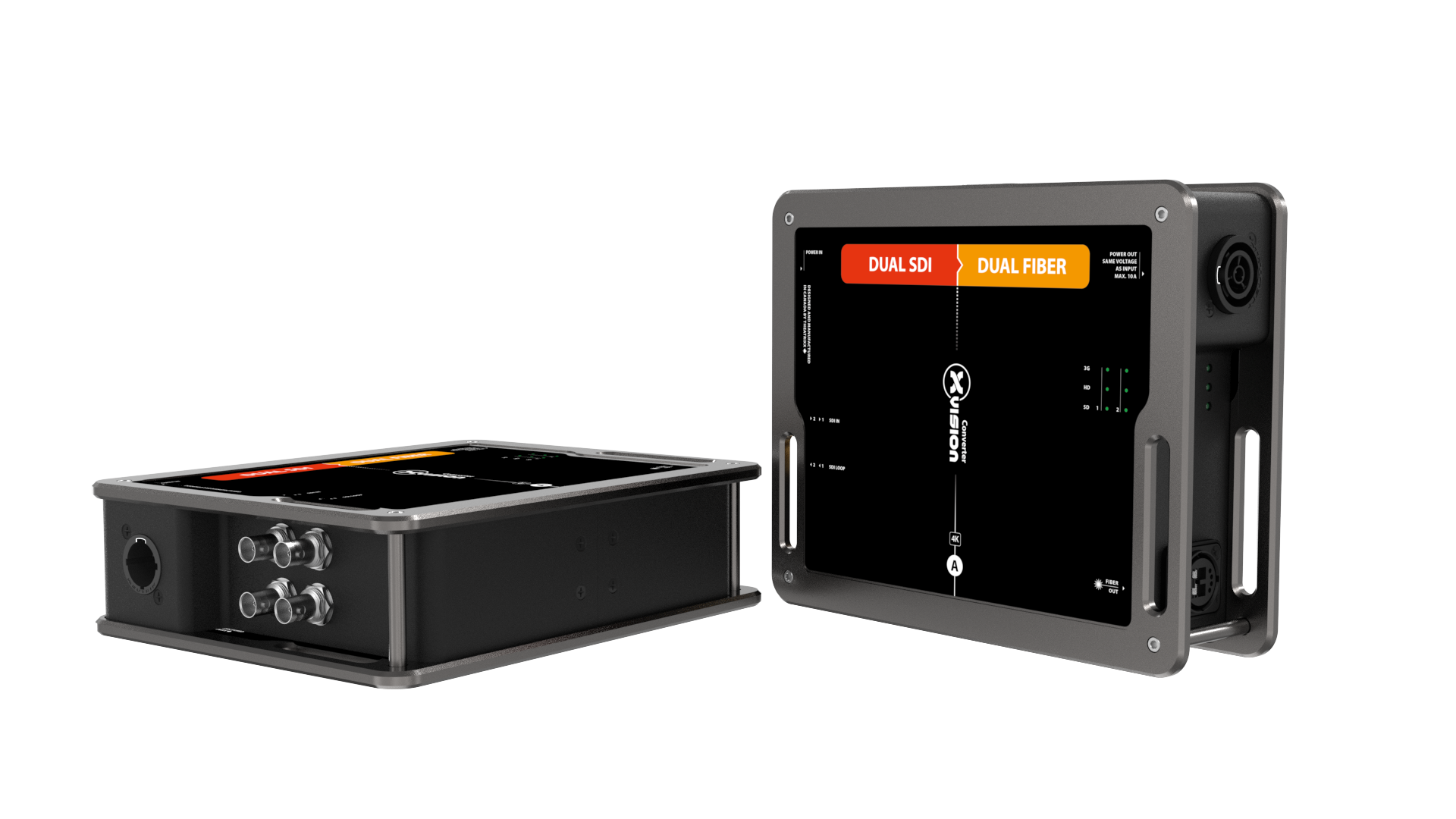

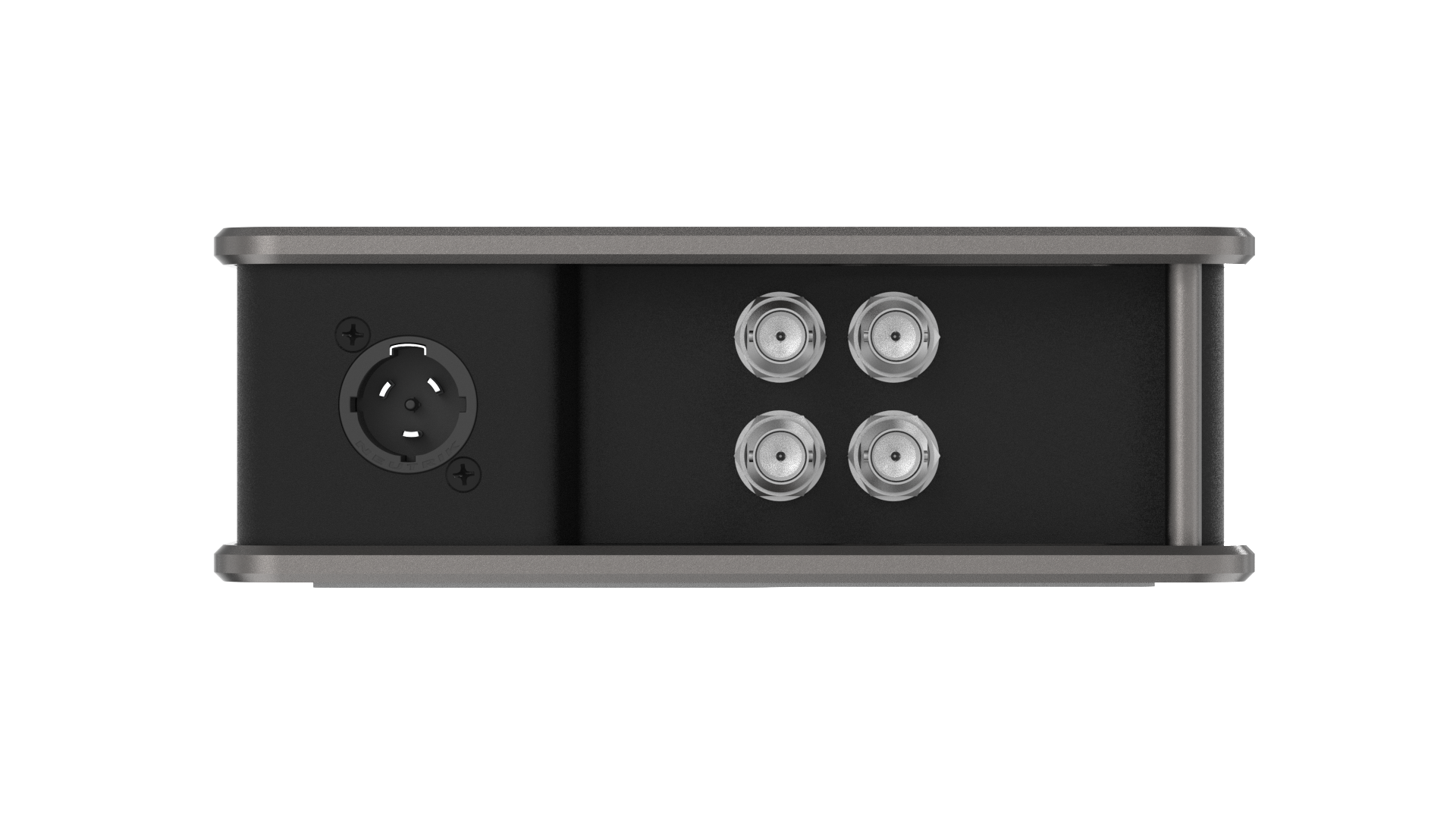

XVV2SDI2FIBERT1 is a standalone Theatrixx xVision converter built for the road rather than the equipment room, with an integrated power supply on a locking powerCON inlet, a magnetic stacking base over a non-skid pad, and color and letter coding on the enclosure so the right box is identifiable under stage light. It converts dual sdi to dual fiber in one pass, with no menus or dip switches to set. Input is 2 x 3G/HD/SD SDI BNC. A reclocked and amplified loop-thru on 2 x 3G/HD/SD SDI BNC lets a local monitor tap the same feed. Signal handling follows SMPTE 425 M Level A & B, 424 M, 292 M, 259 M.

Order it by optical build: option 1 selects singlemode (S) or multimode (M) fiber, option 2 selects the connector, ST (1), opticalCON DUO (2) or opticalCON QUAD (3). The variant picker above carries the exact part number and price for each build. Power is Built-in power supply, PowerCon True1 input, PowerCON True1 output (loop-thru). Draw is 45W max. Mounting options cover C-clamp, wall plate, LCD bracket and belt adapter, and the courtesy AC outlet on the rear feeds a nearby display or laptop off the same drop.
