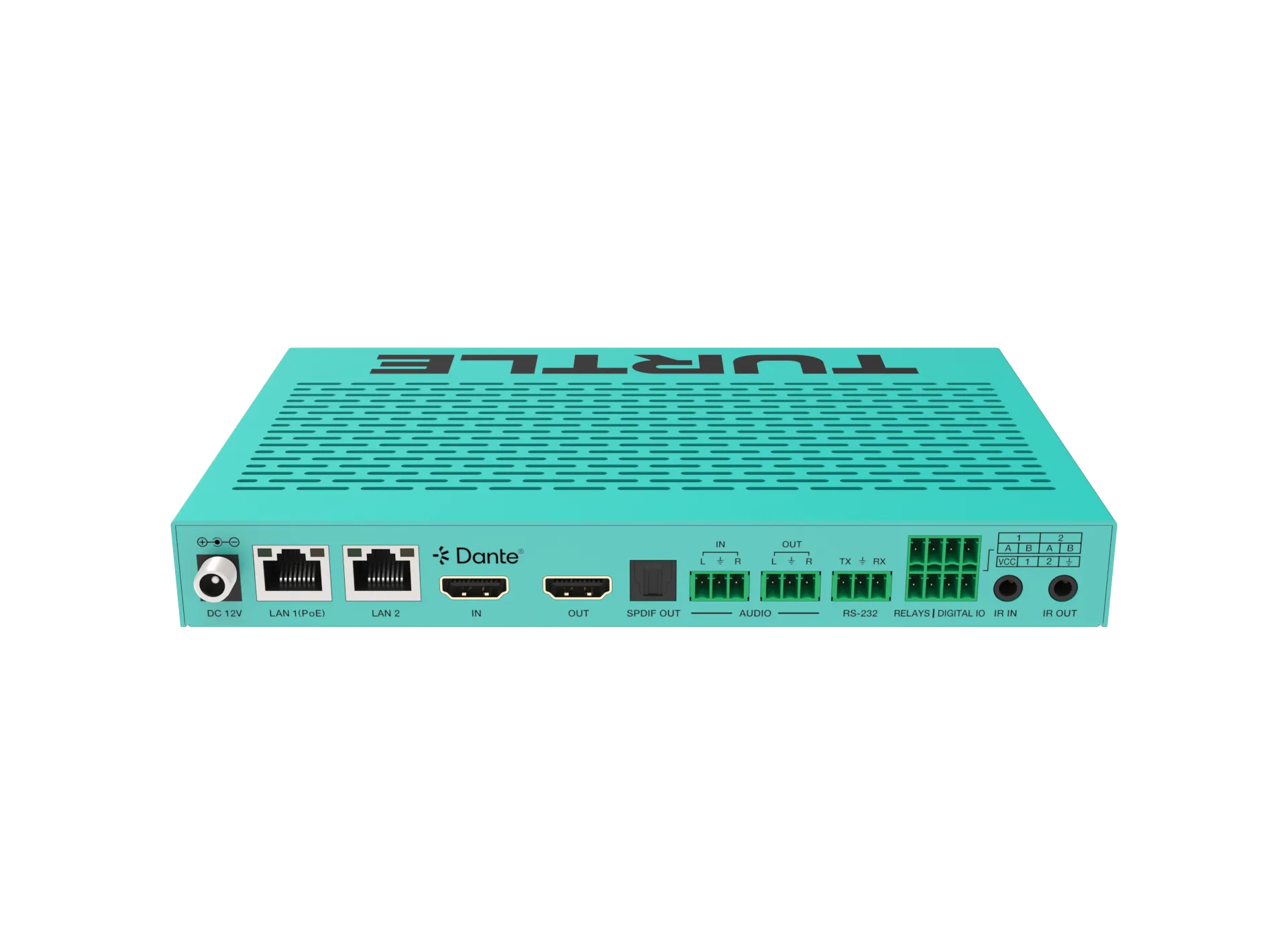

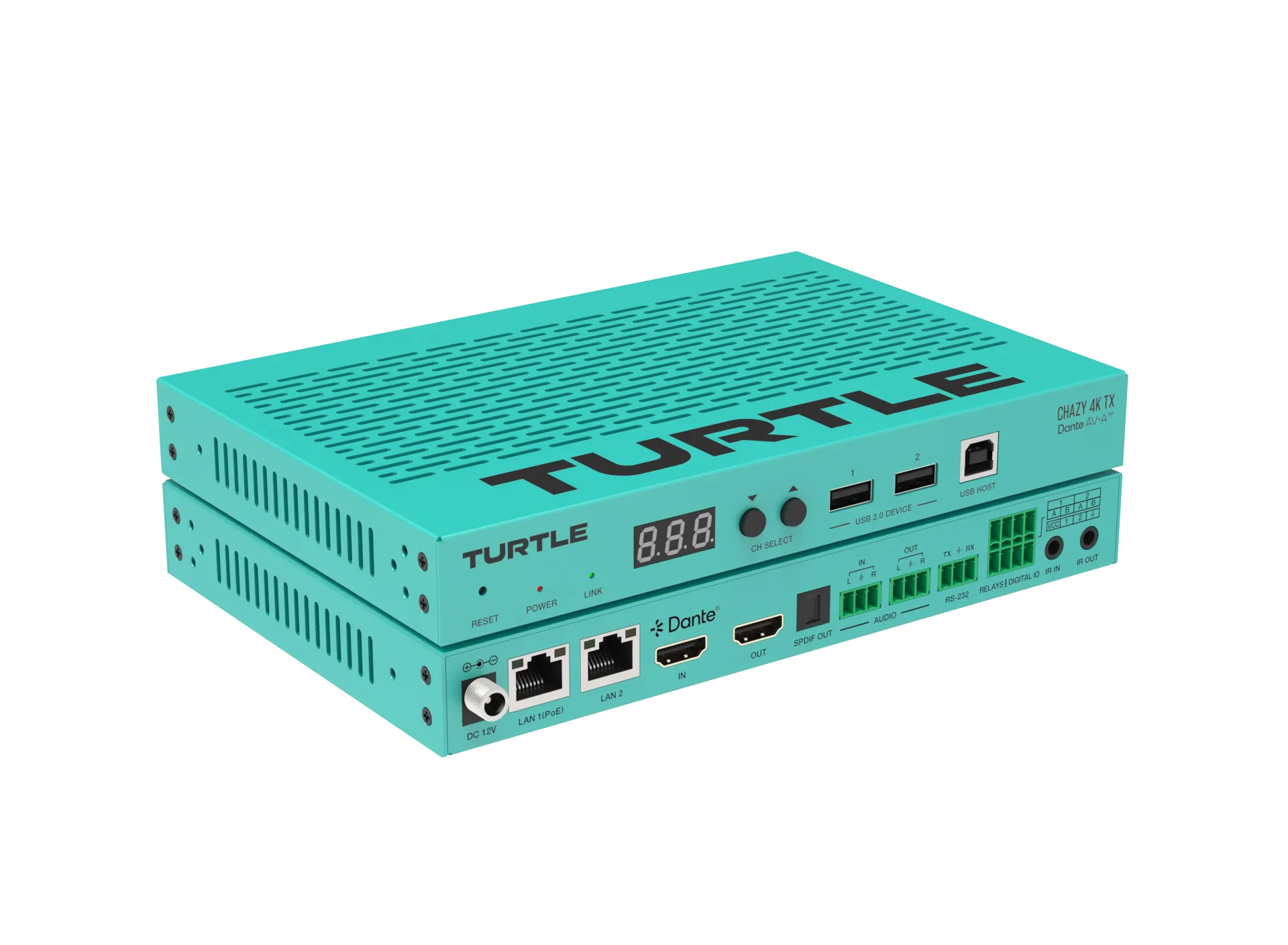

TurtleAV Chazy 4K TX Dante AV-A Video Encoder
The Chazy 4K TX is TurtleAV's HDMI 2.0b encoder for AV over IP, sending 2160p60 4:4:4 HDR across a 1 Gbps network in either Dante AV-A or JPEG 2000. The Dante AV-A license is included rather than sold separately, and it carries a 2x2 Dante audio license with it, so the transmitter is ready to route audio and video on a single Dante domain out of the box.
It is powered over Ethernet, which keeps a display or source position free of a second supply, and it supports KVM, video wall configurations up to 9x9, hardware scaling, EDID management, HDCP 2.2 and true multicast. Dual network ports keep the AV network and the control network separate. The unit is TAA compliant and carries a 5-year warranty.
| HDMI | 2.0b compliant |
|---|---|
| HDCP | 2.2 compliant |
| Video Bandwidth | 18Gbps |
| Compression Codec | JPEG 2000 or Dante AV-A |
| Network Bandwidth | 1Gbps |
| Colour Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDMI Audio Formats | LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTX-EX DSD, DTS High Res, DTS-HD Master |
| Housing | Metal enclosure |
